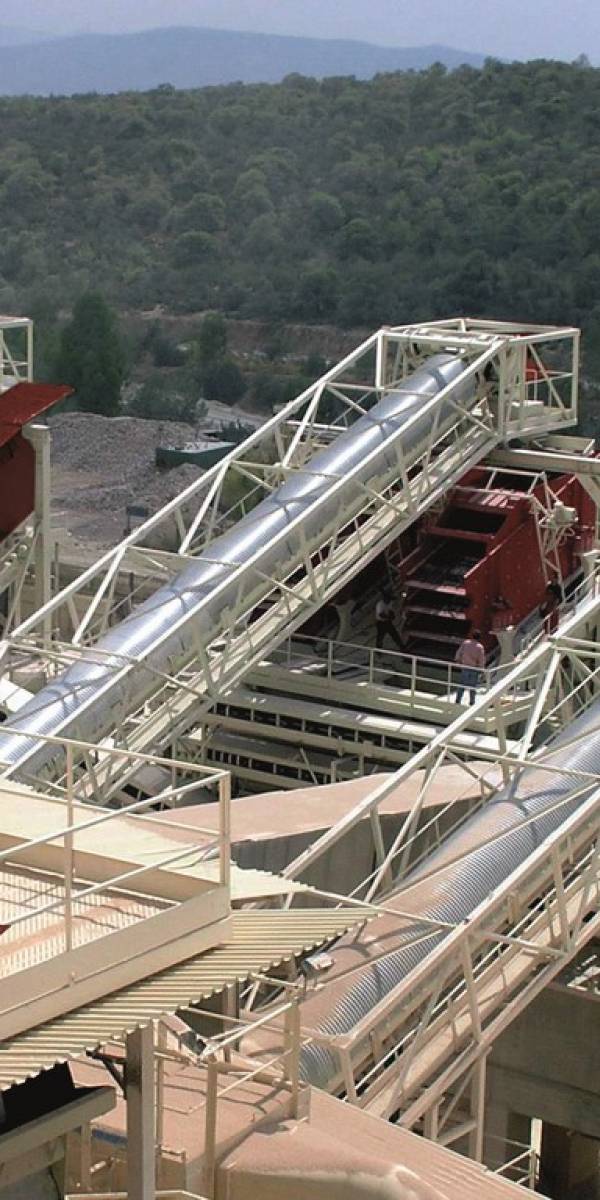

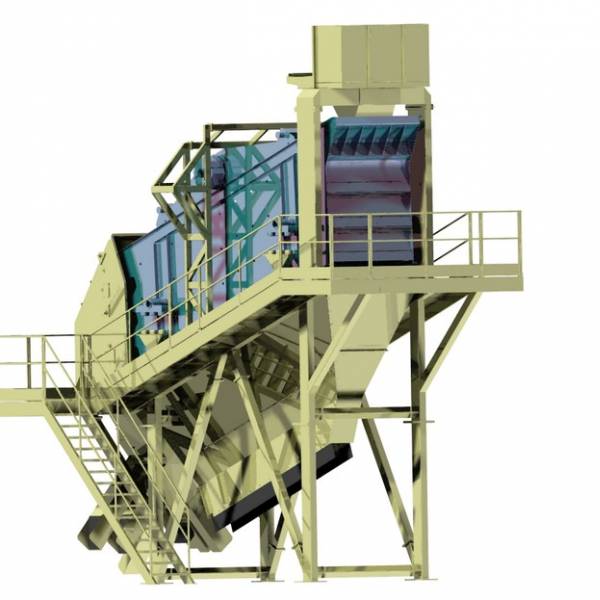

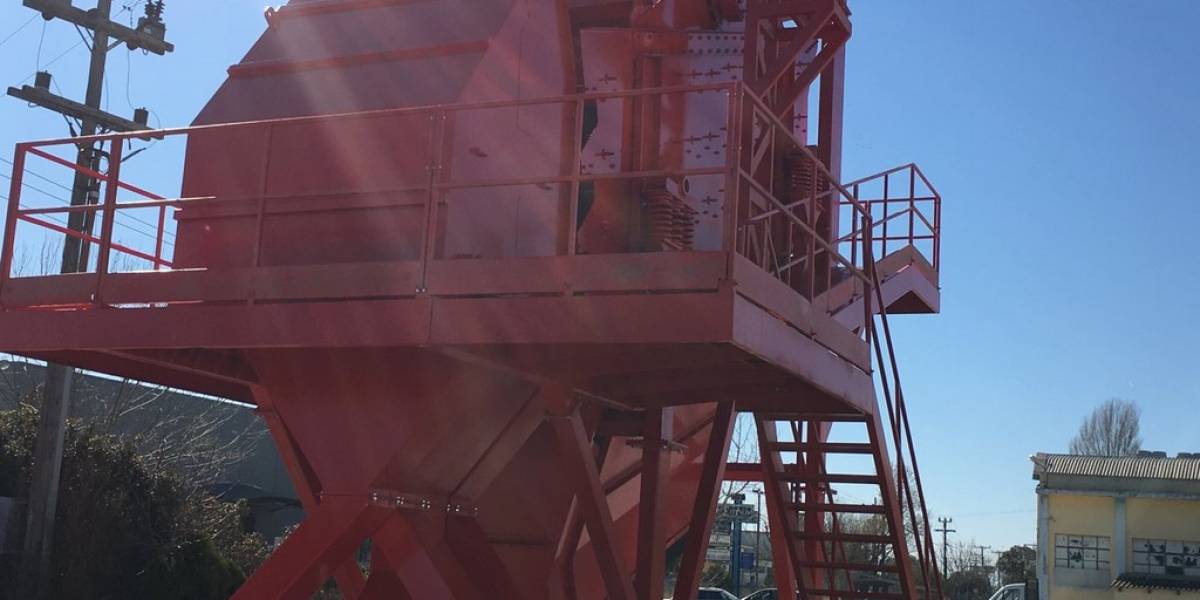

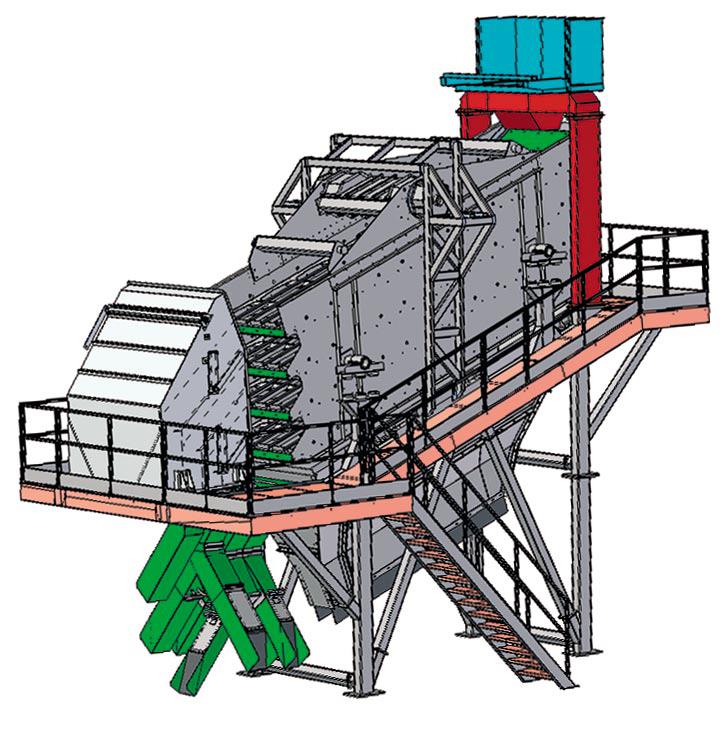

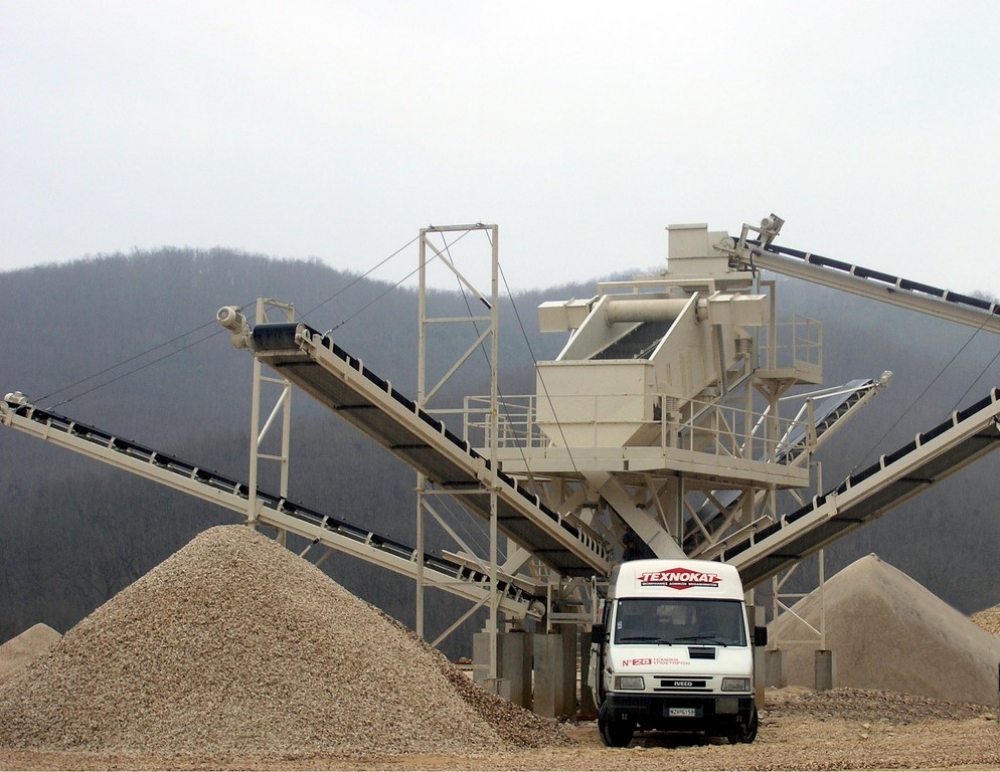

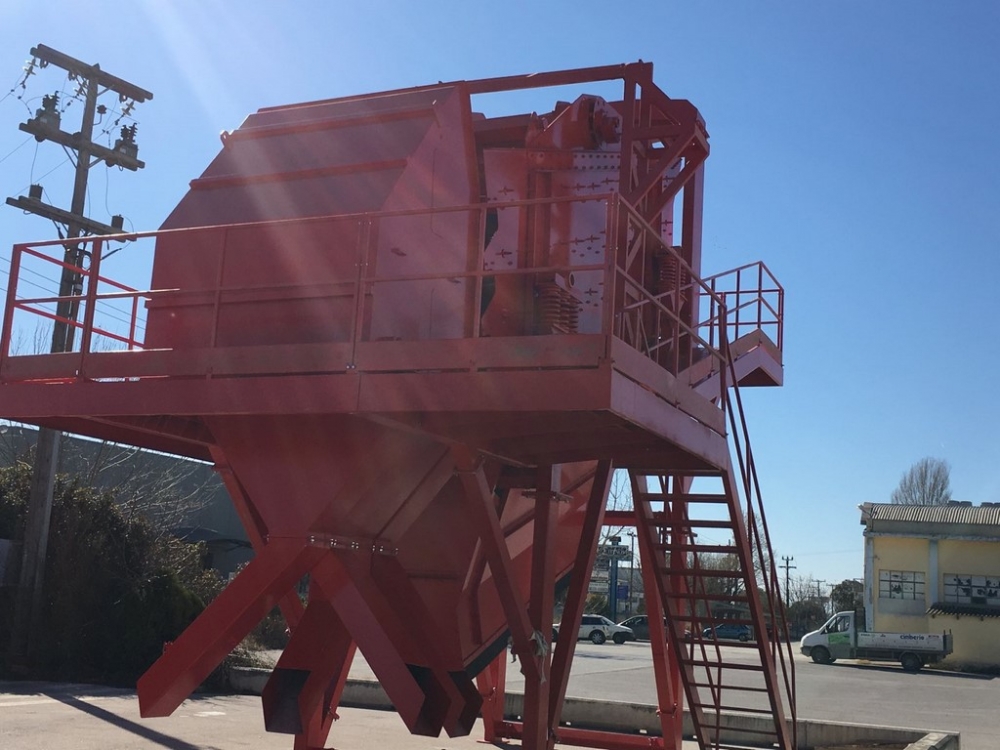

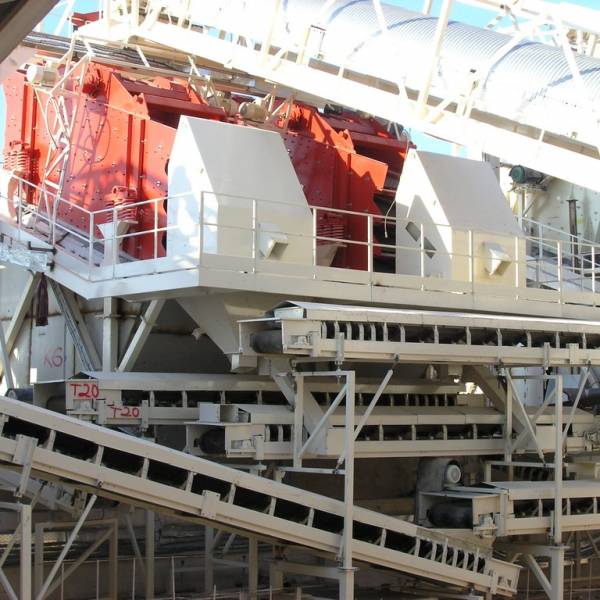

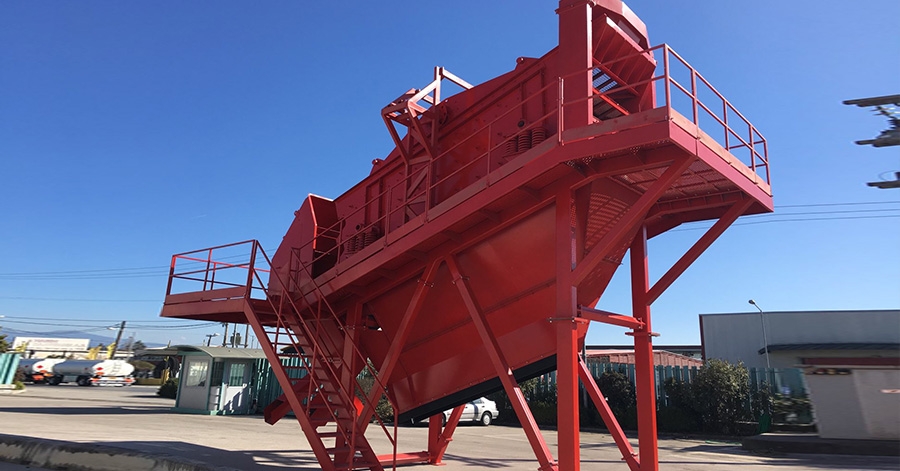

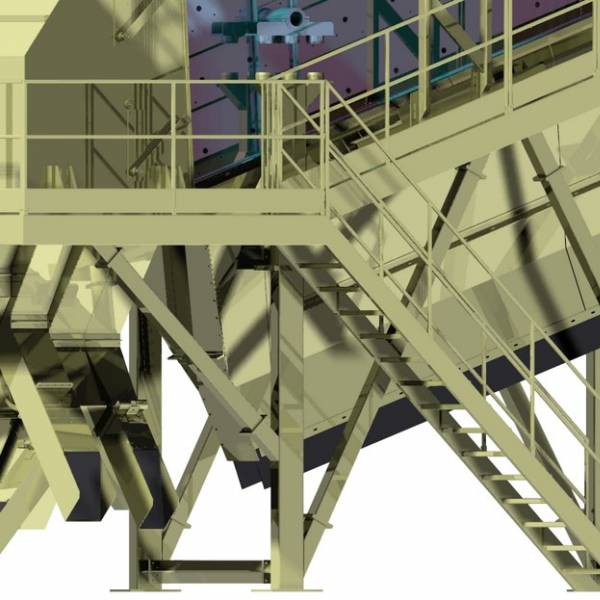

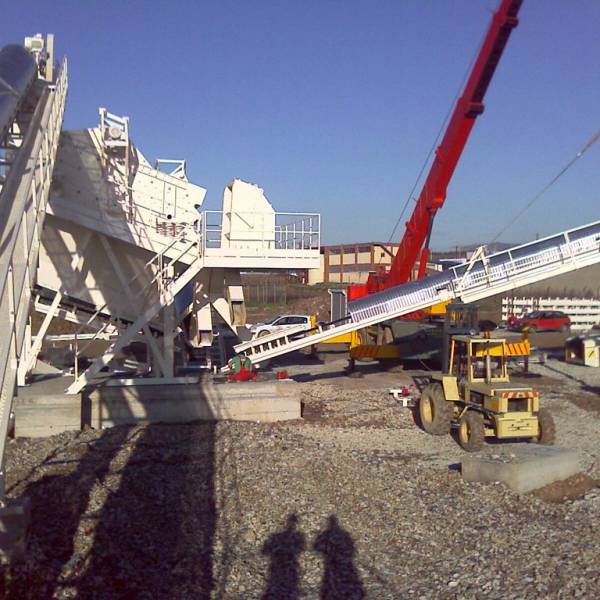

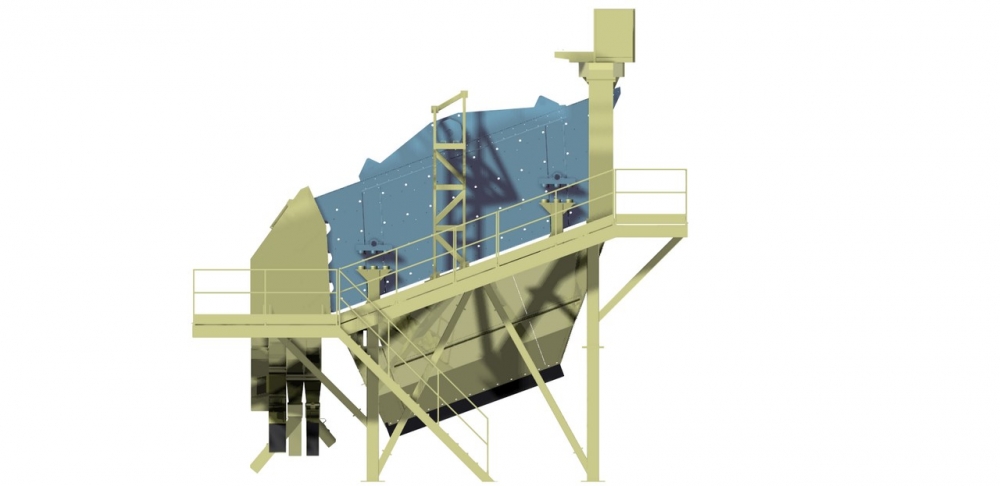

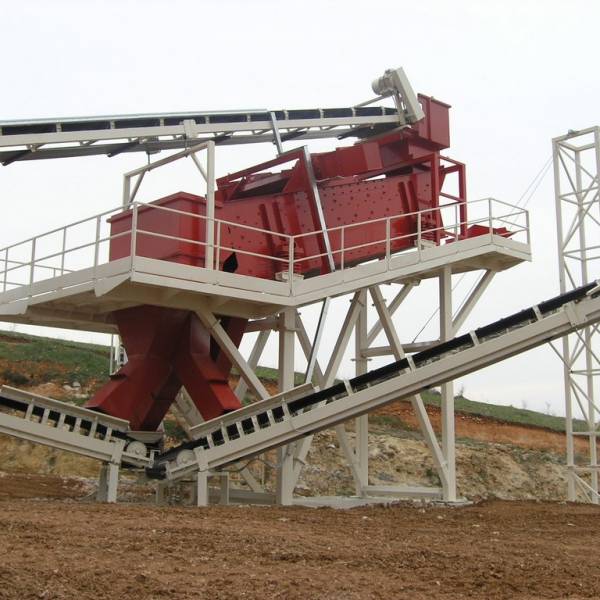

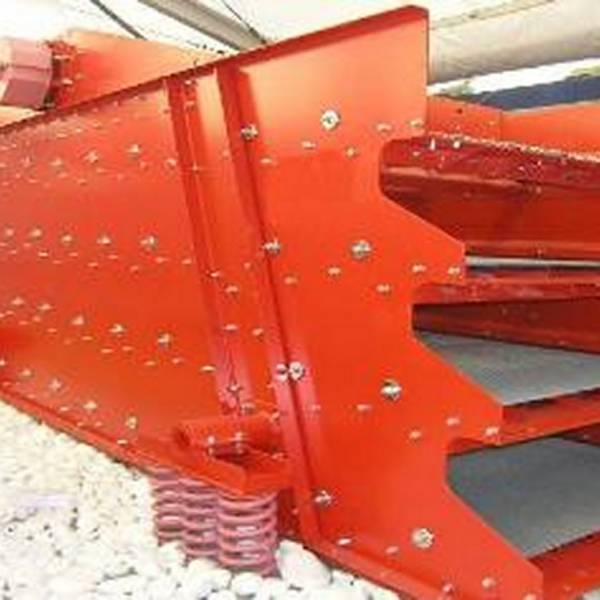

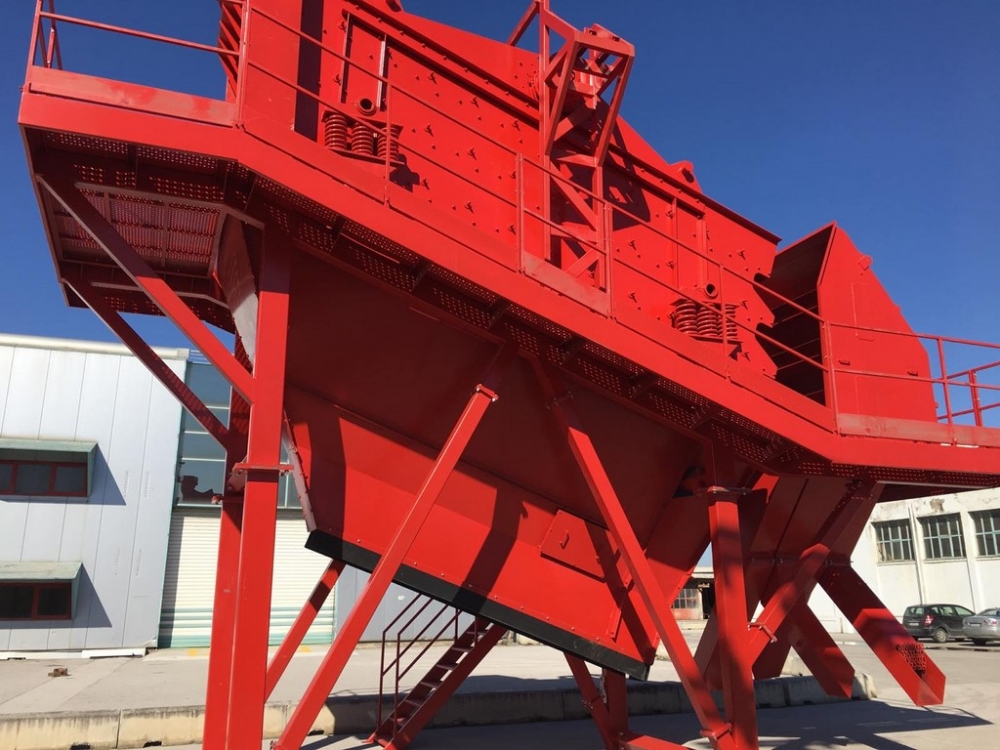

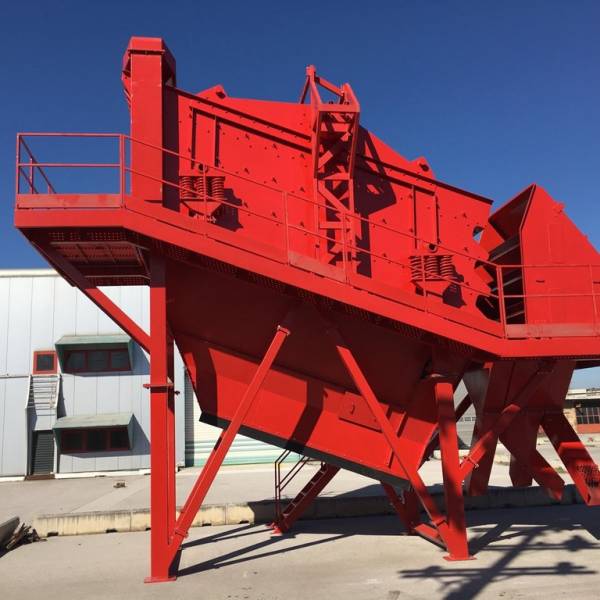

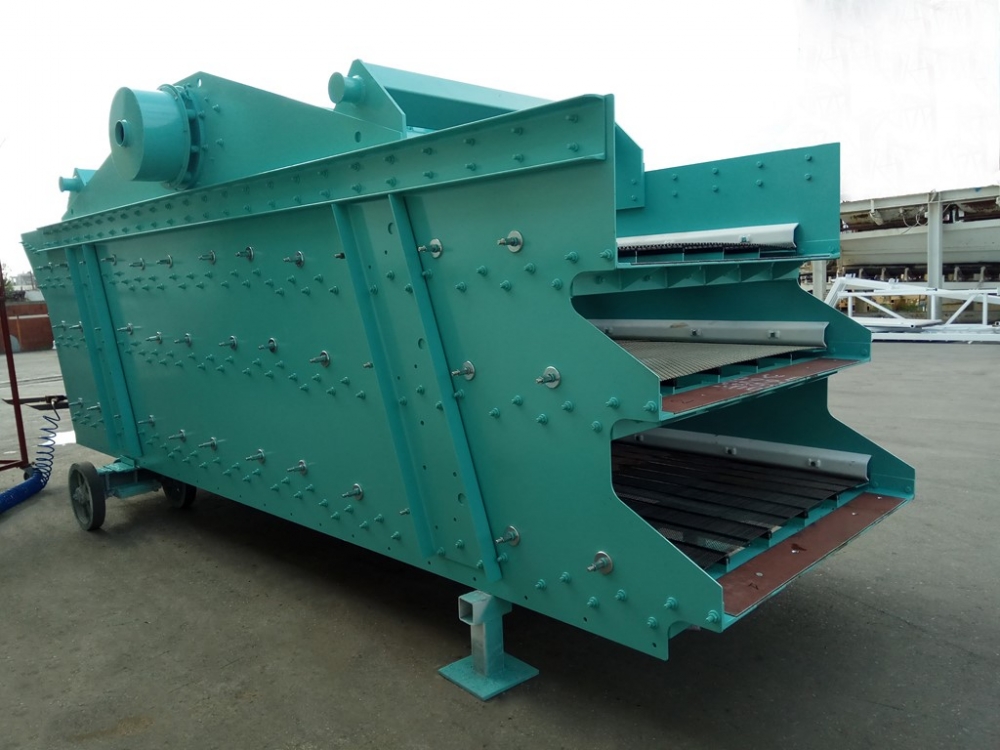

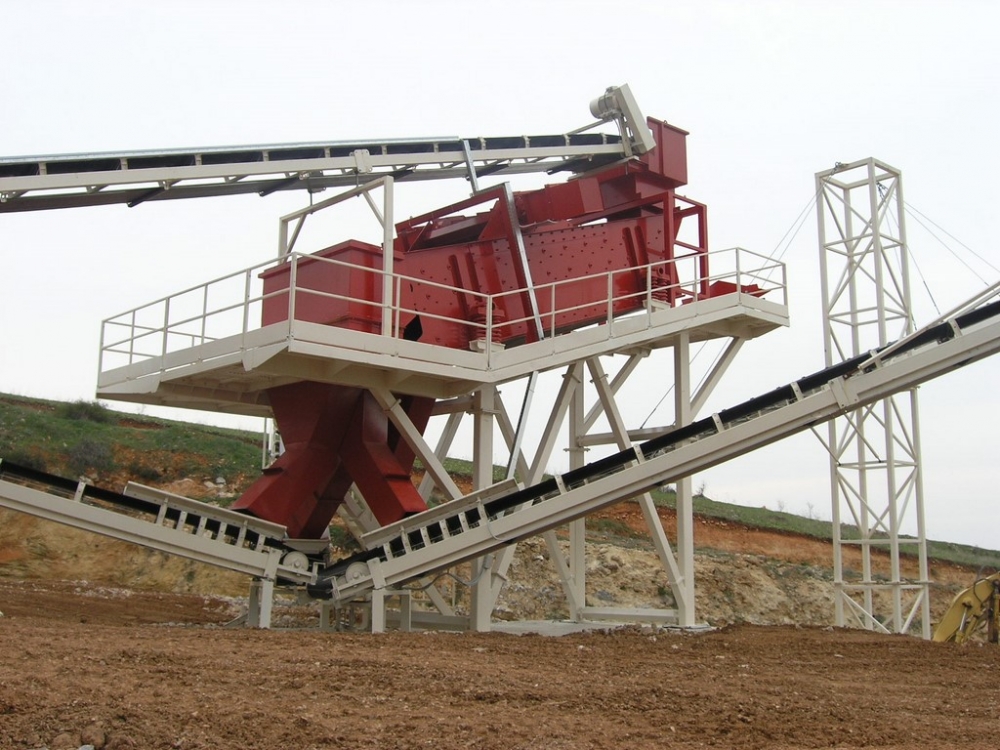

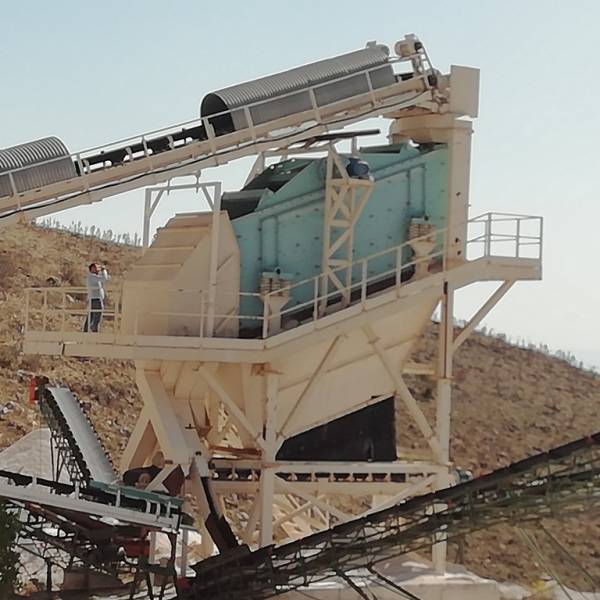

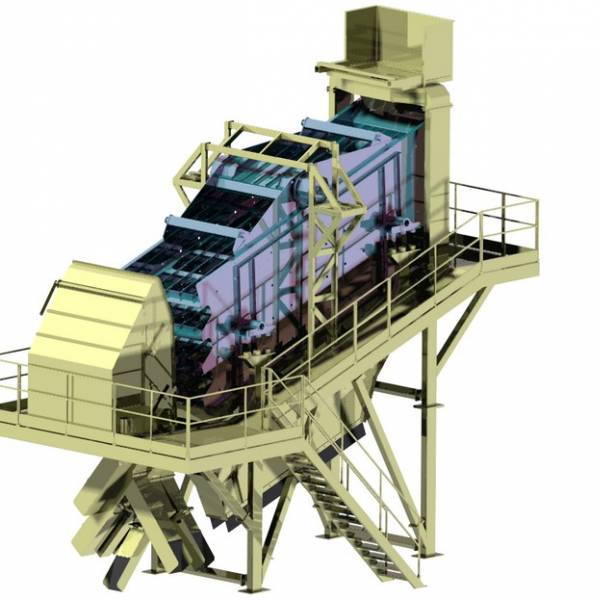

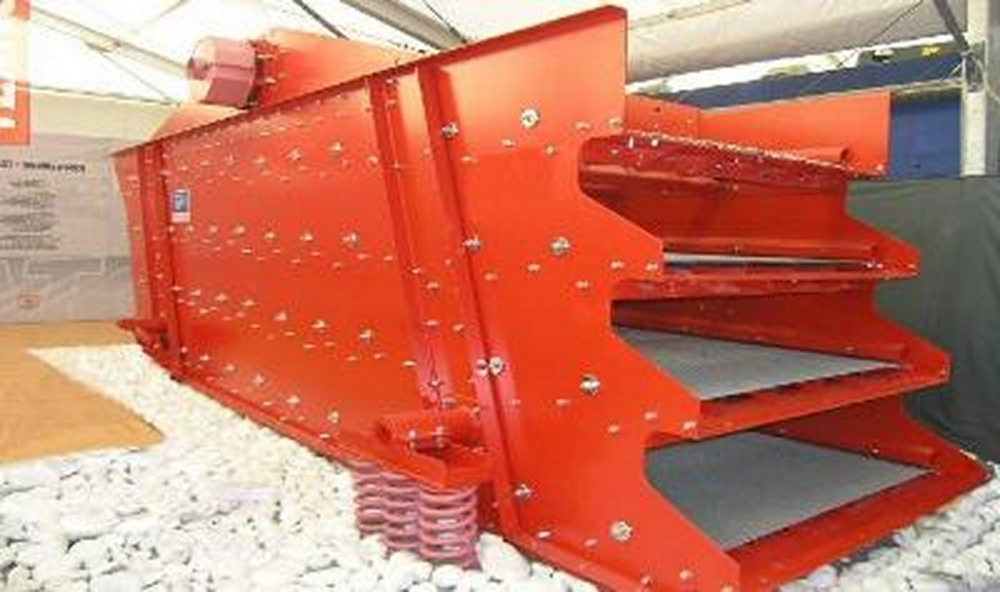

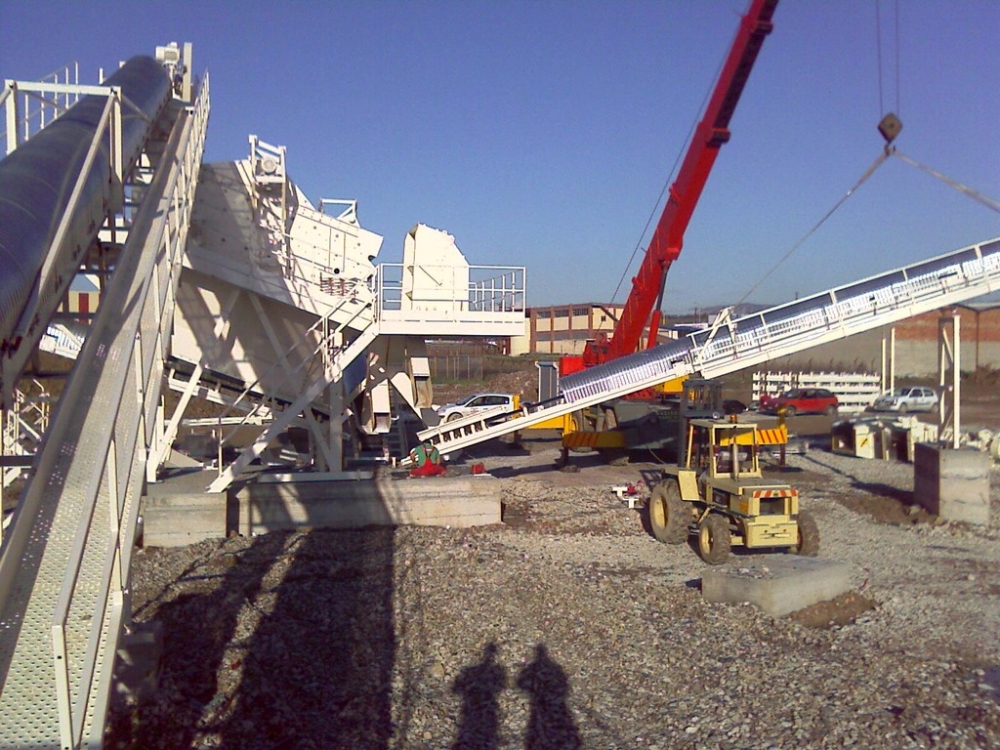

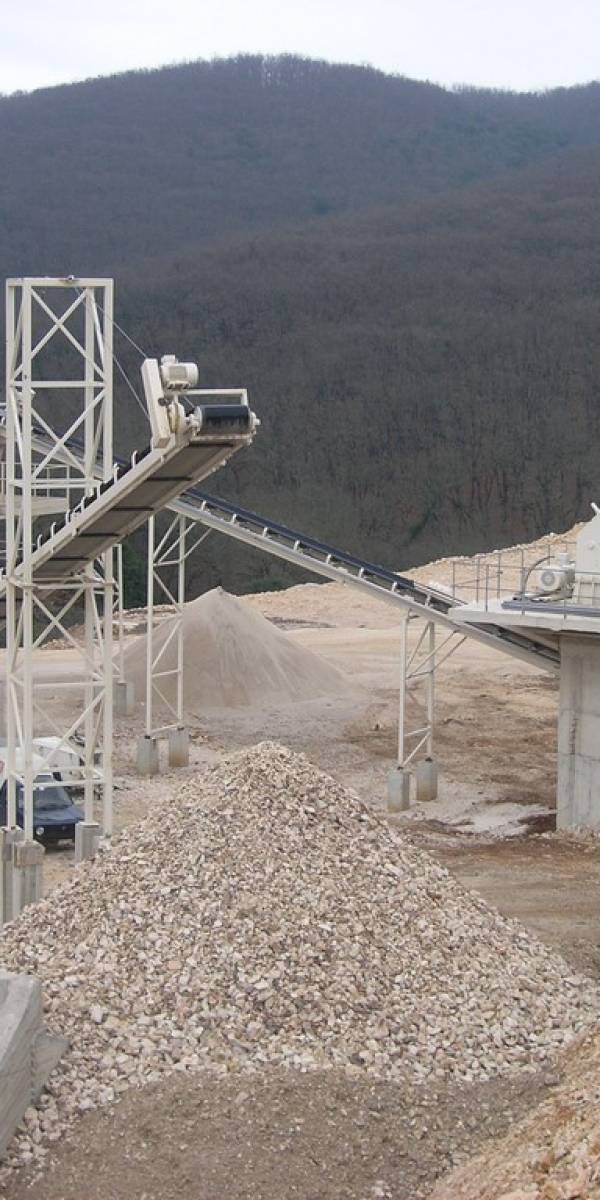

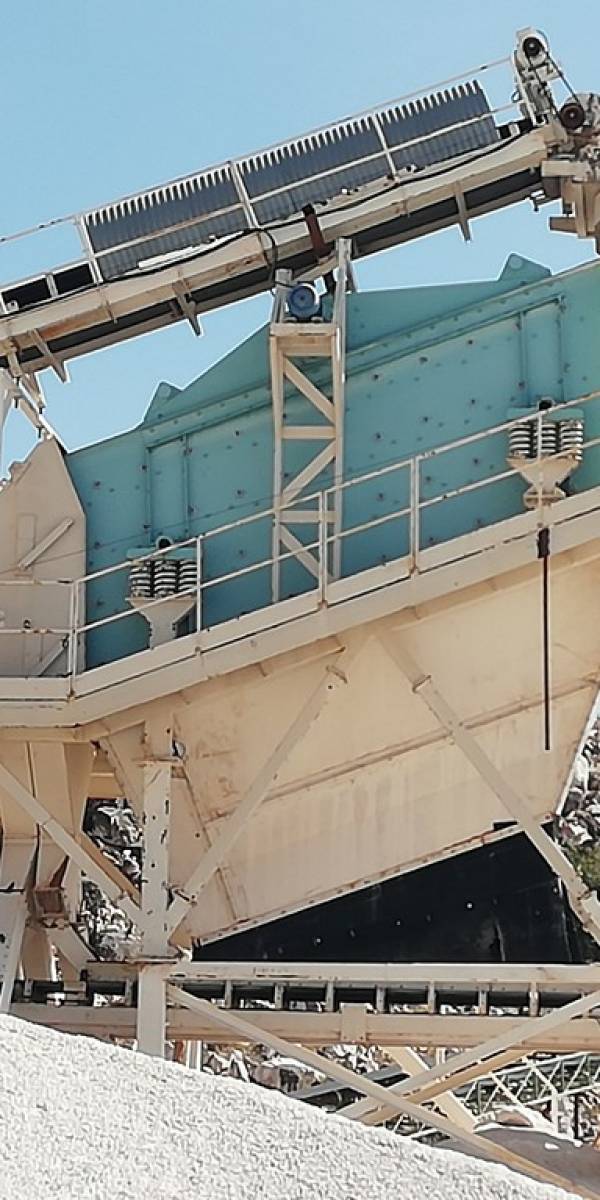

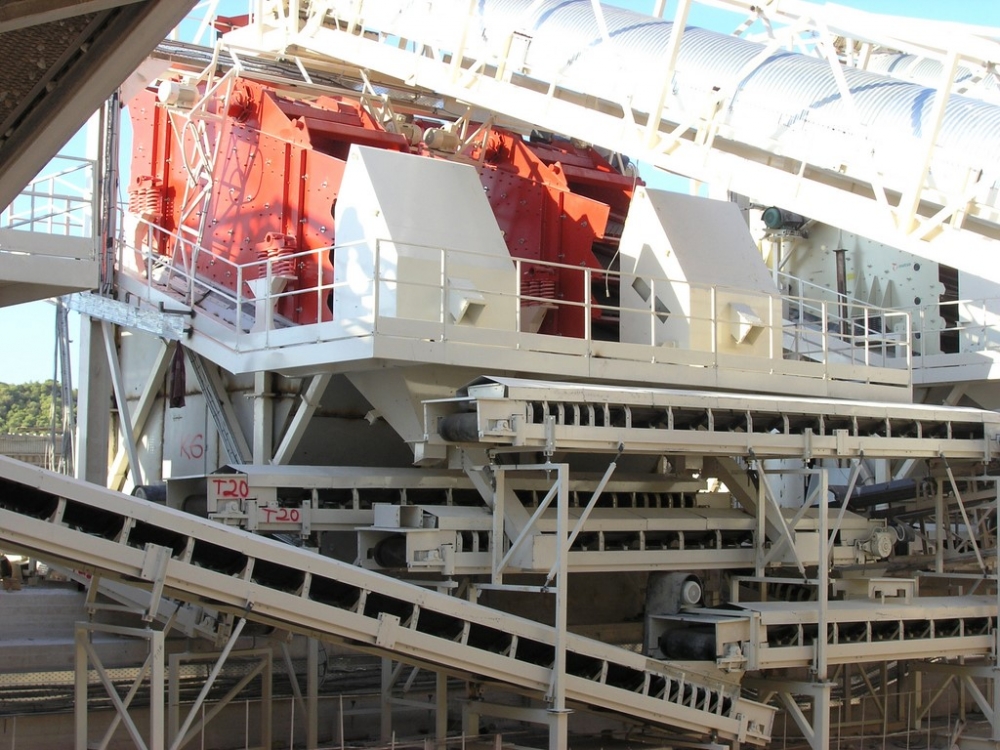

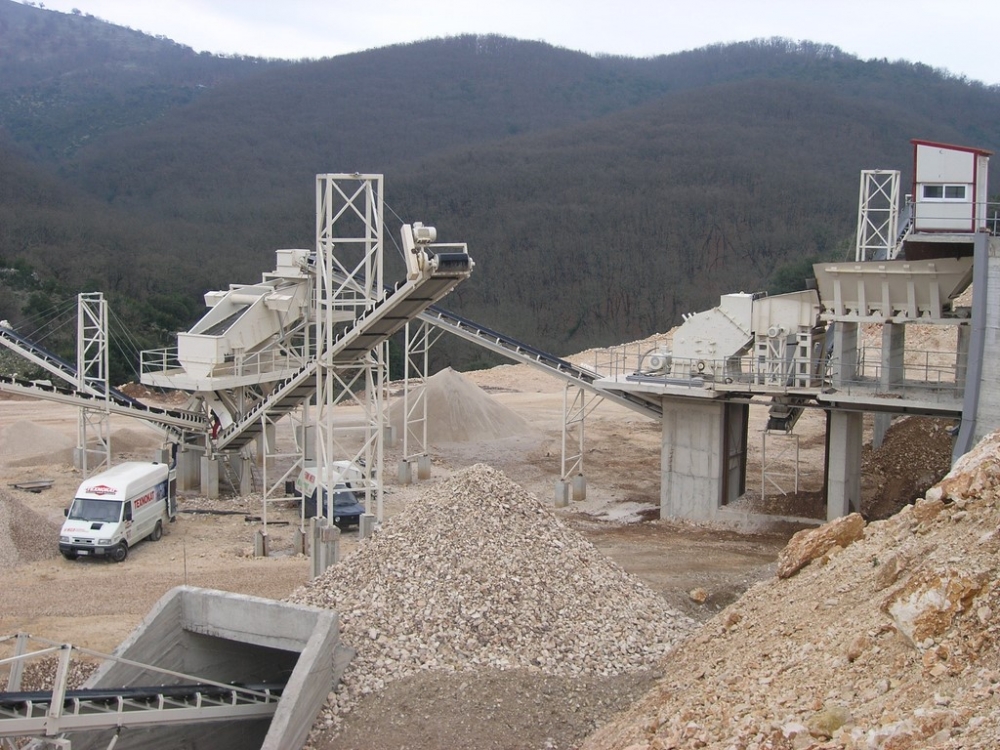

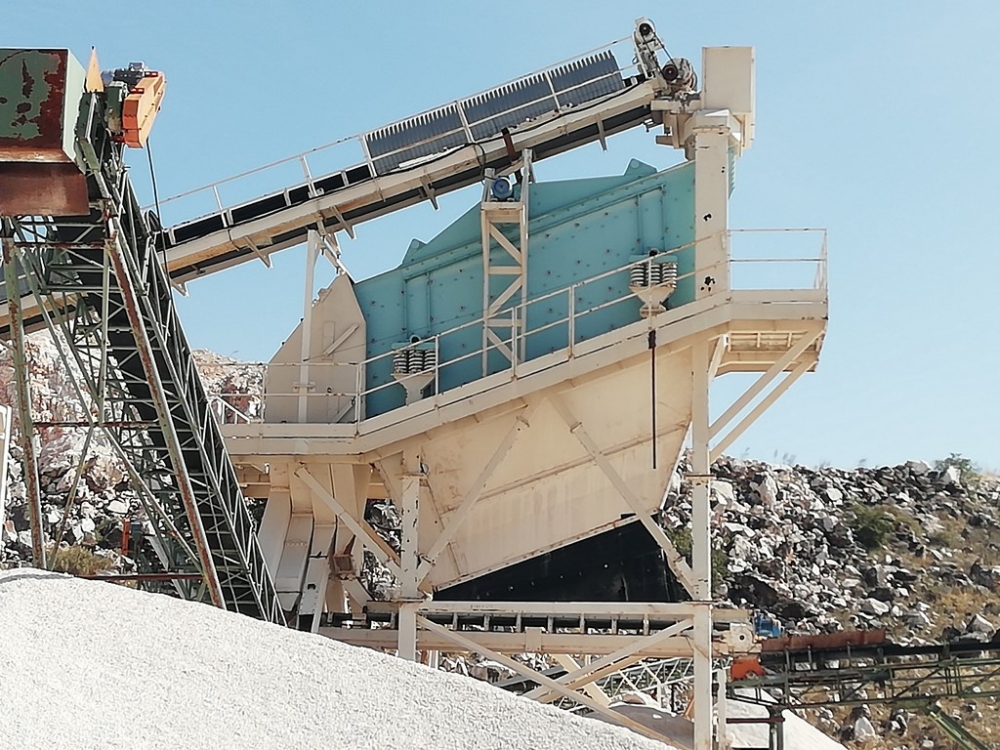

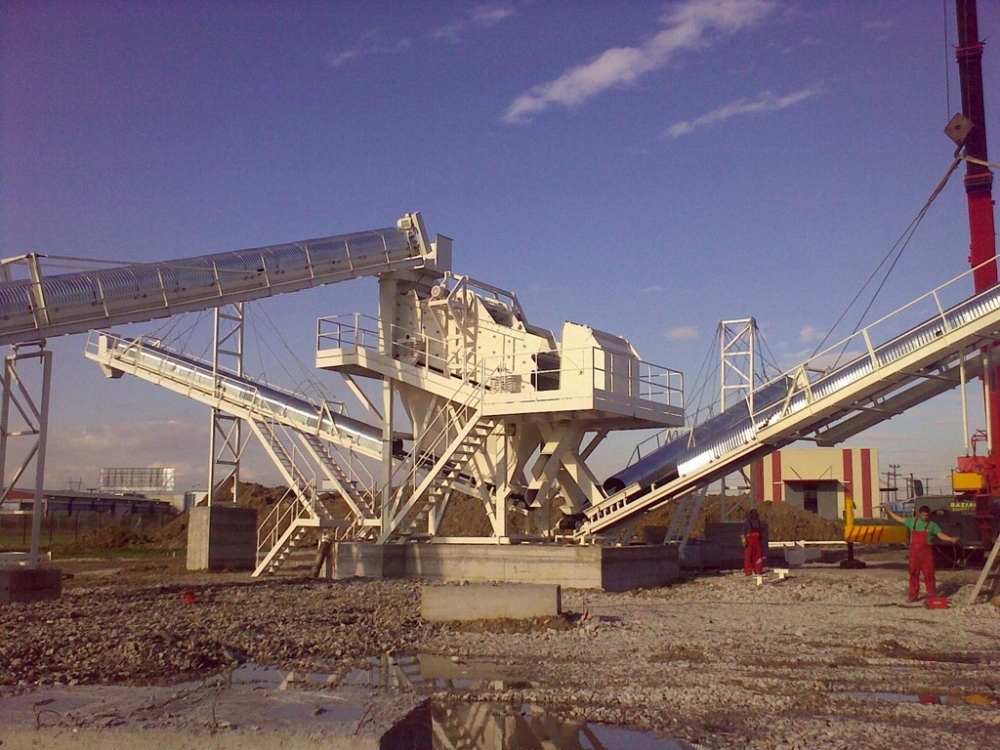

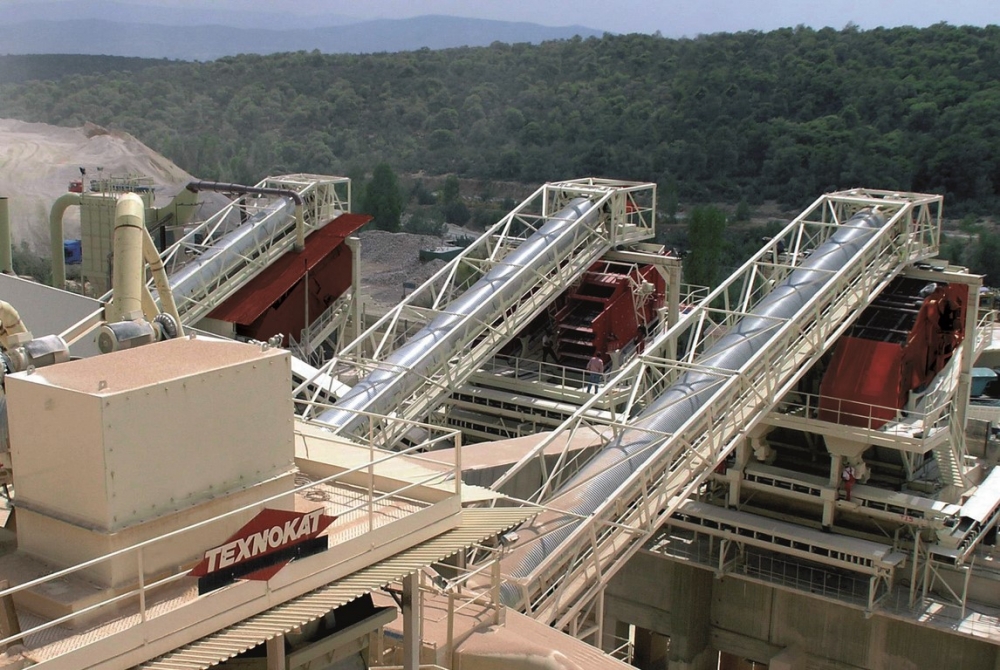

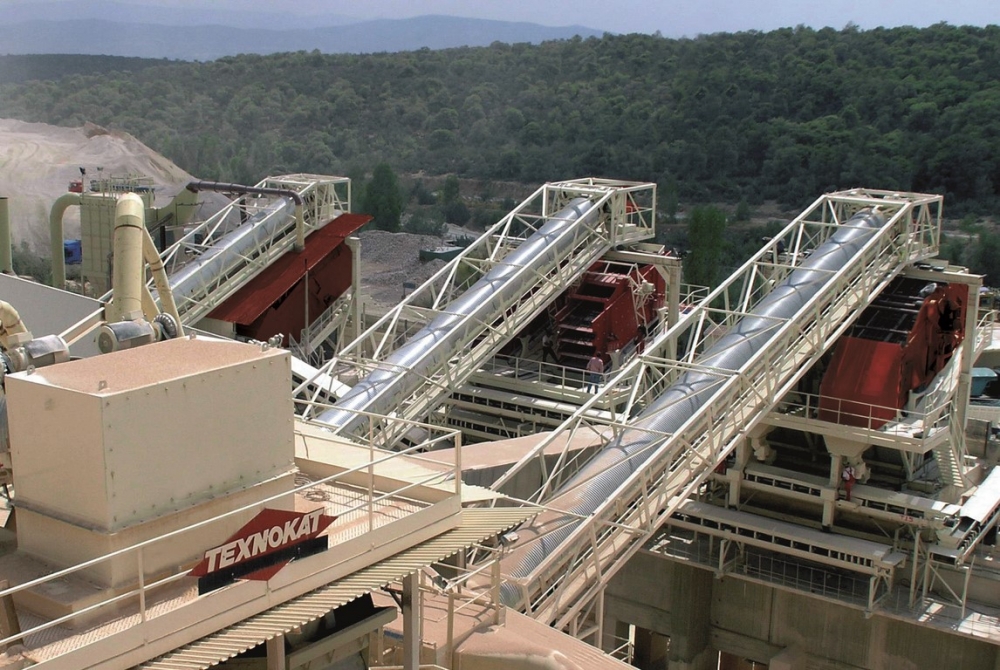

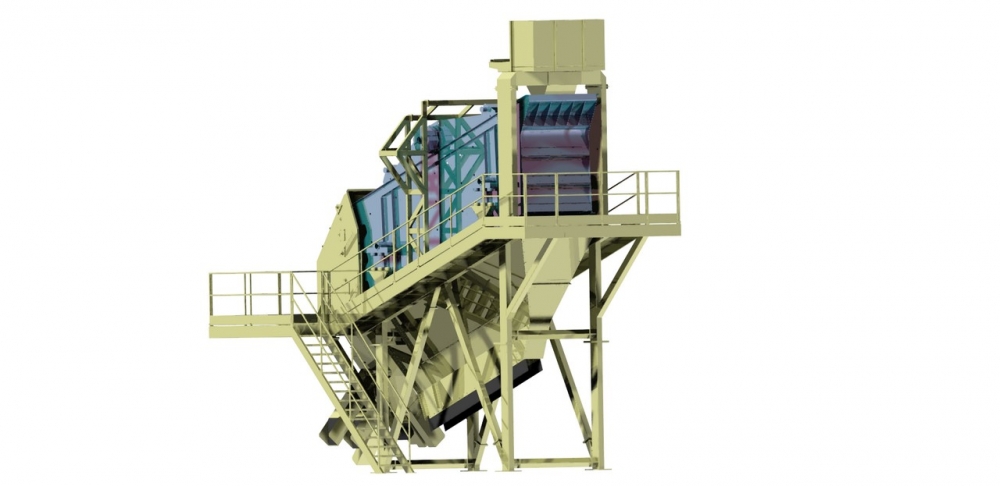

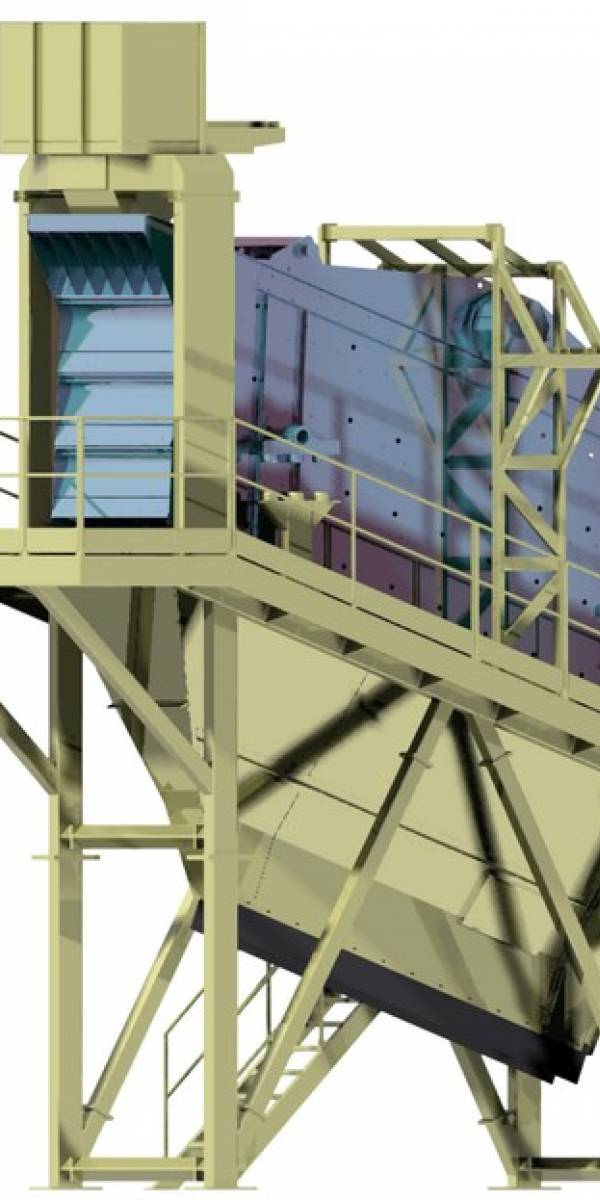

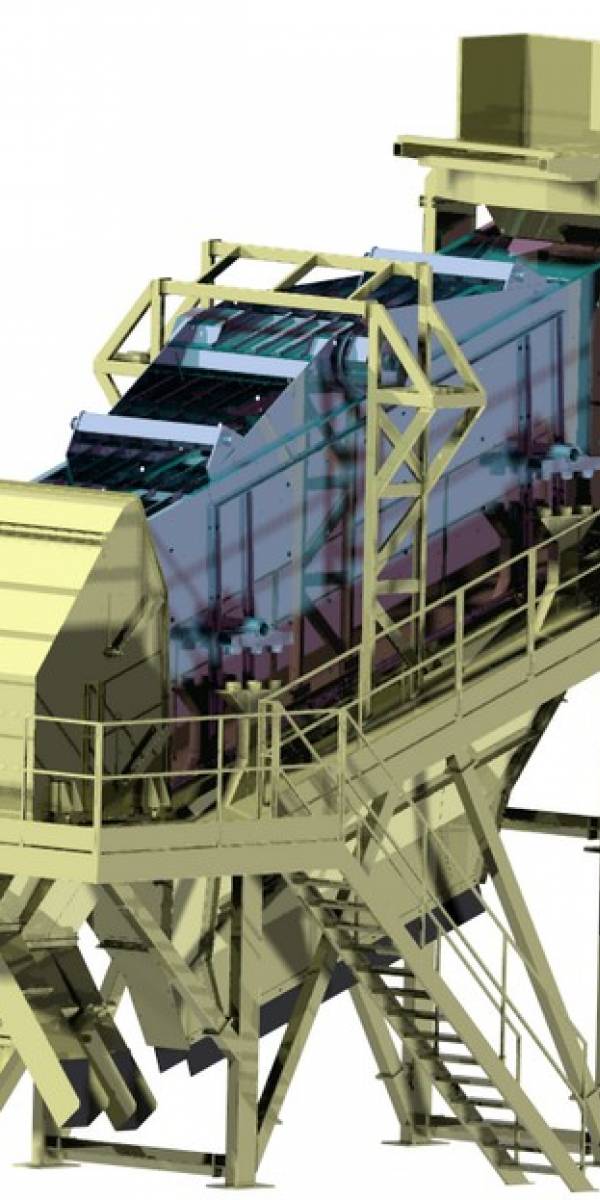

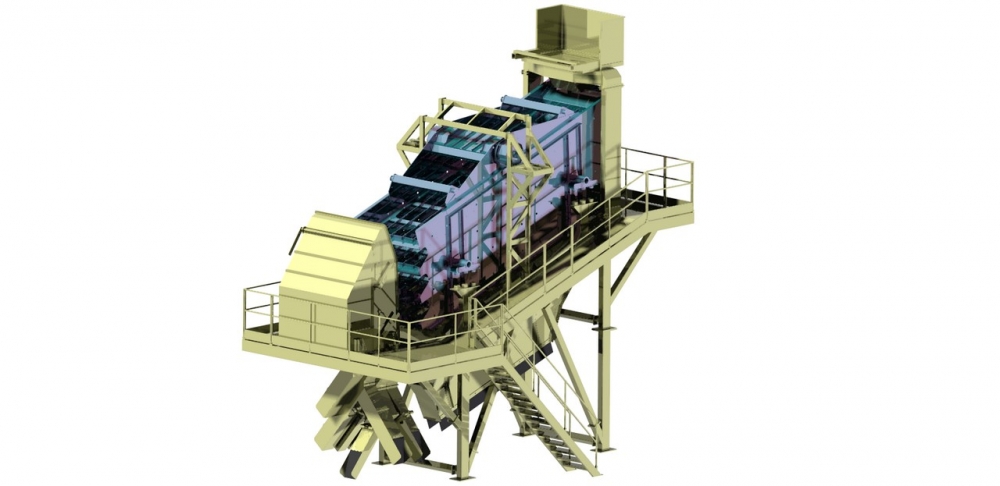

The series of vibrating screens, type VVE ELLITOR, are designed and constructed to offer a combination of high resistance and multiple applications capabilities. The avant-garde design of VVE ELLITOR screens places them at the top for the use in Quarry Plants of Modern Design, since it ensures:
- Maximum capacity
- Vibrations are not transferred to support tower
- Minimum maintenance
- Less volume

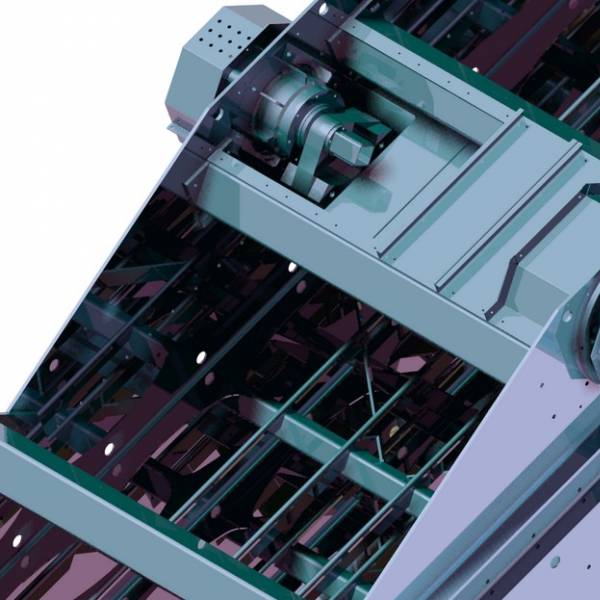

- Vibrators with easily adjustable counterbalances

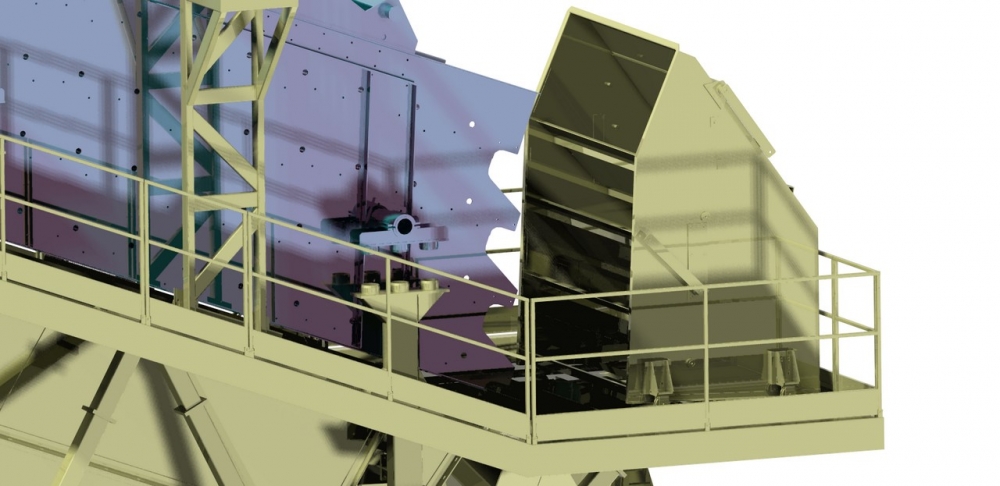

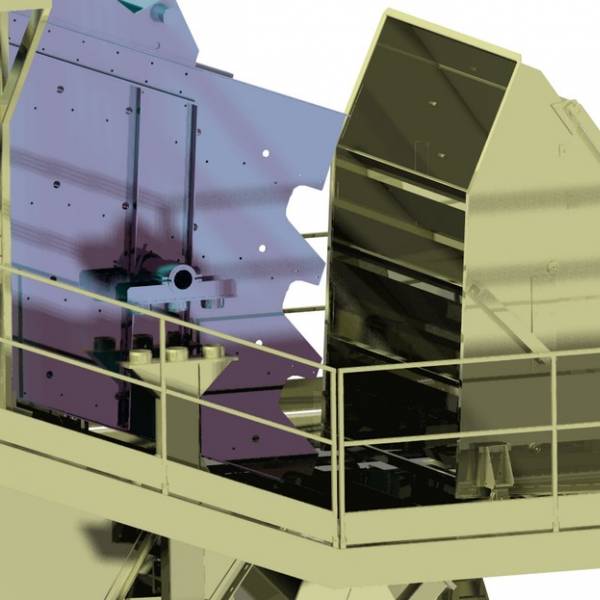

Depending on the treatable material, the gravity center of vibration system can be moved for optimization of vibration pulse direction.

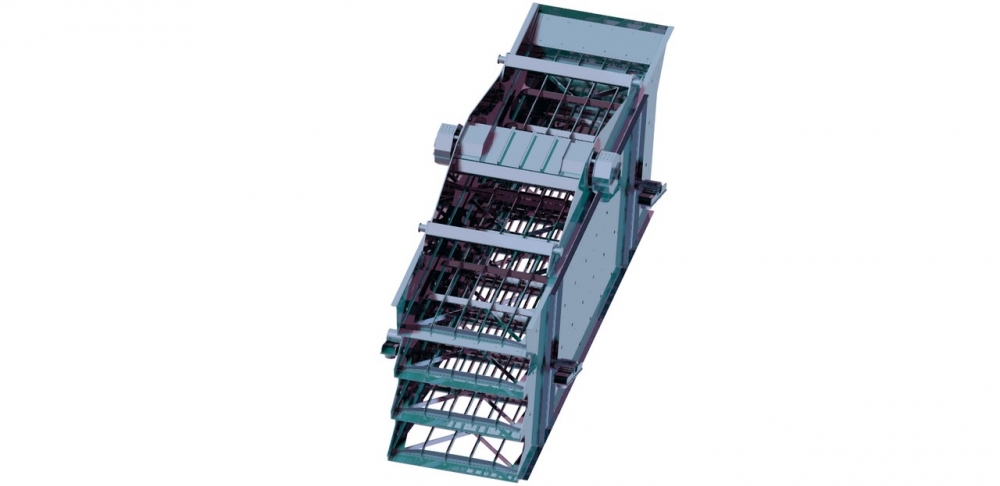

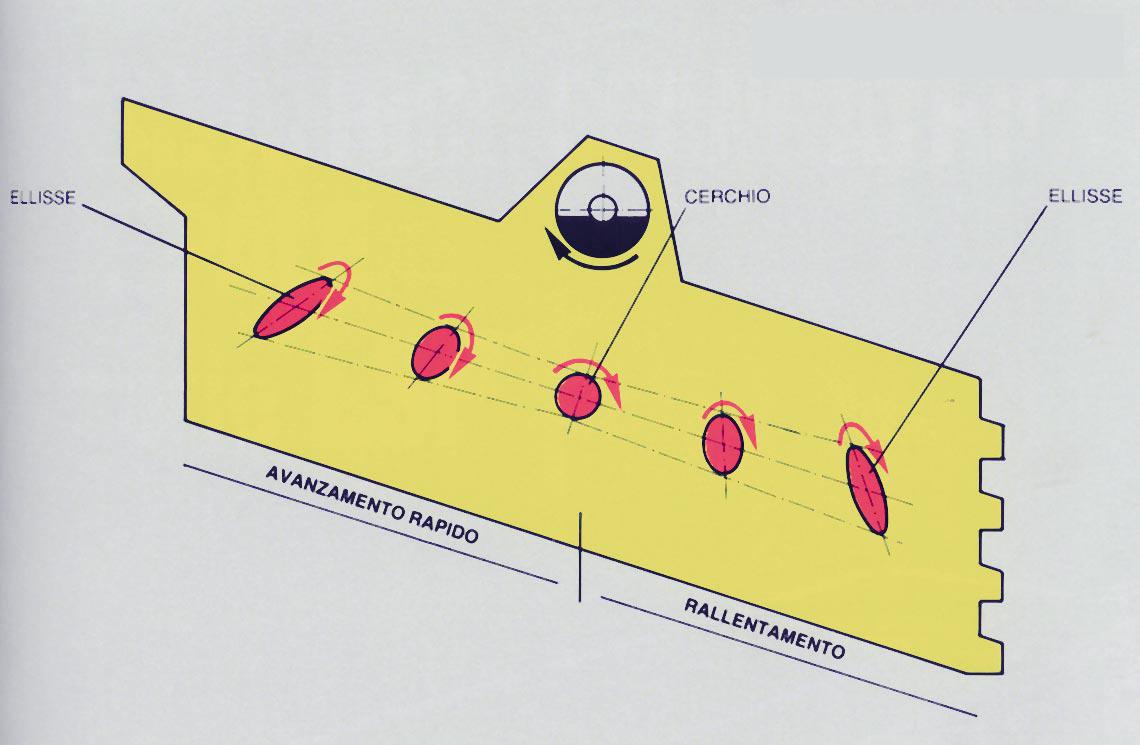

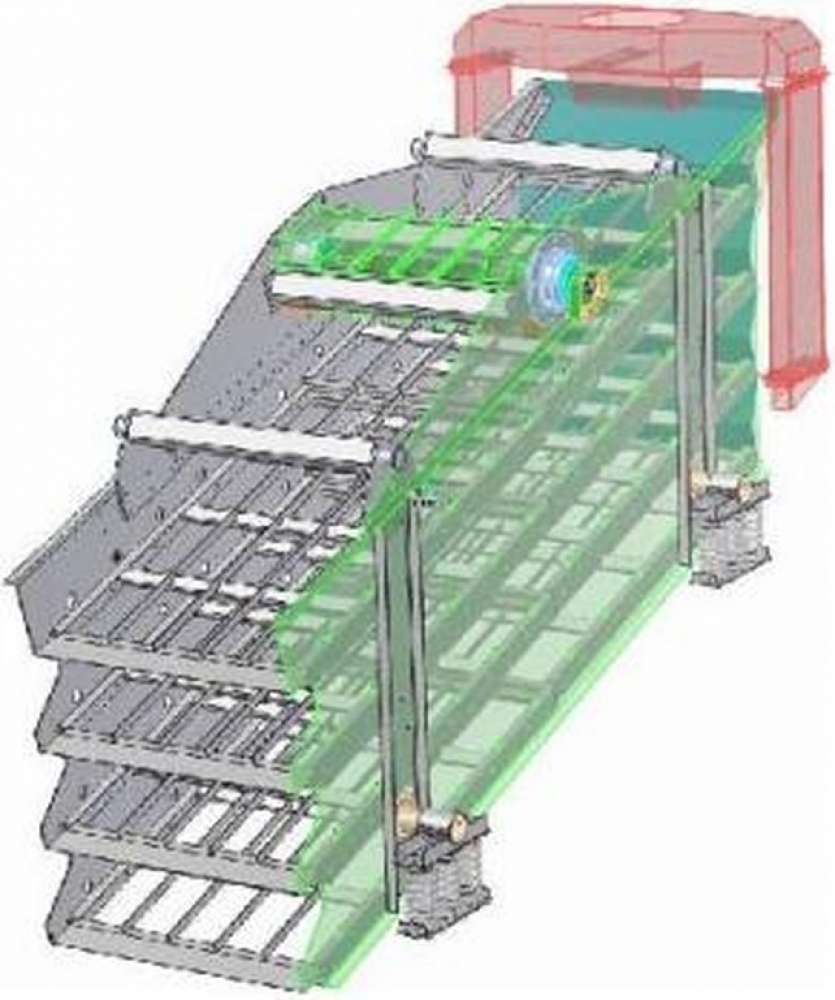

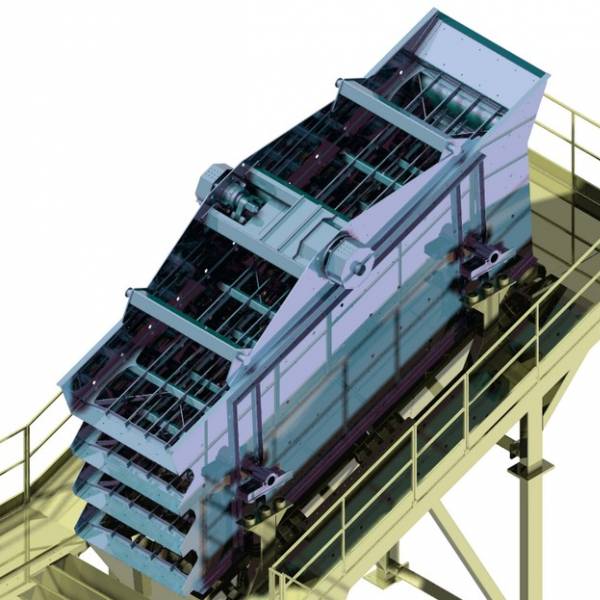

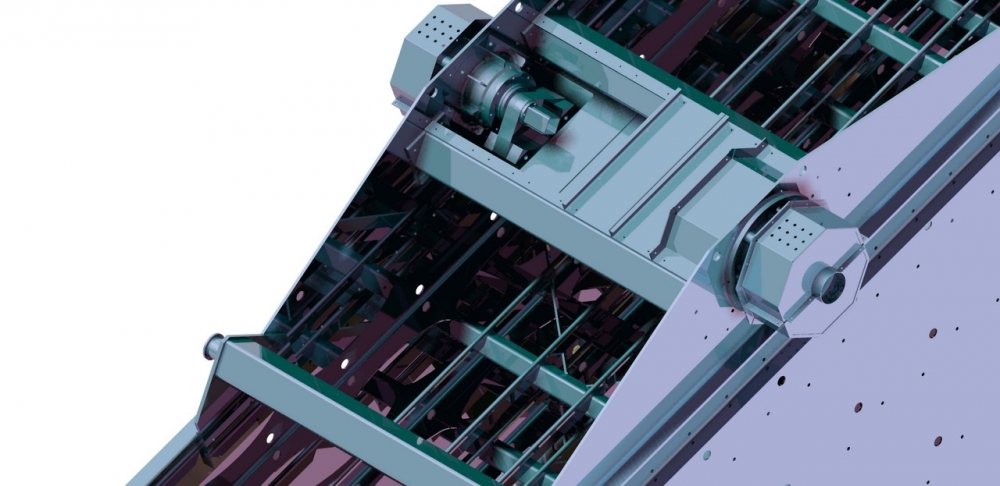

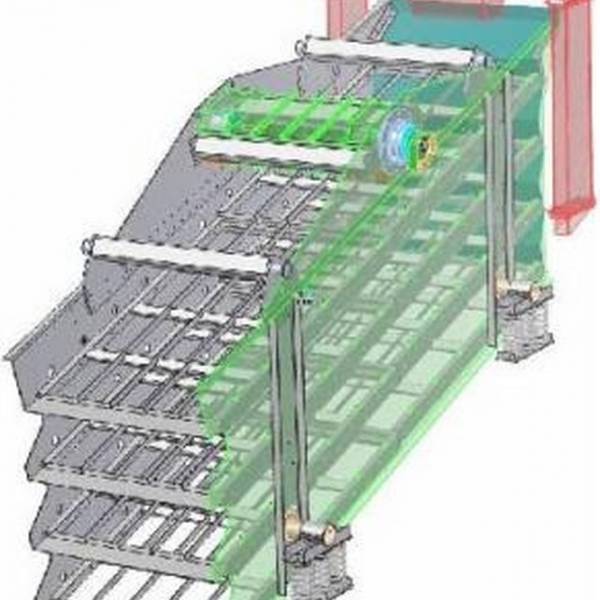

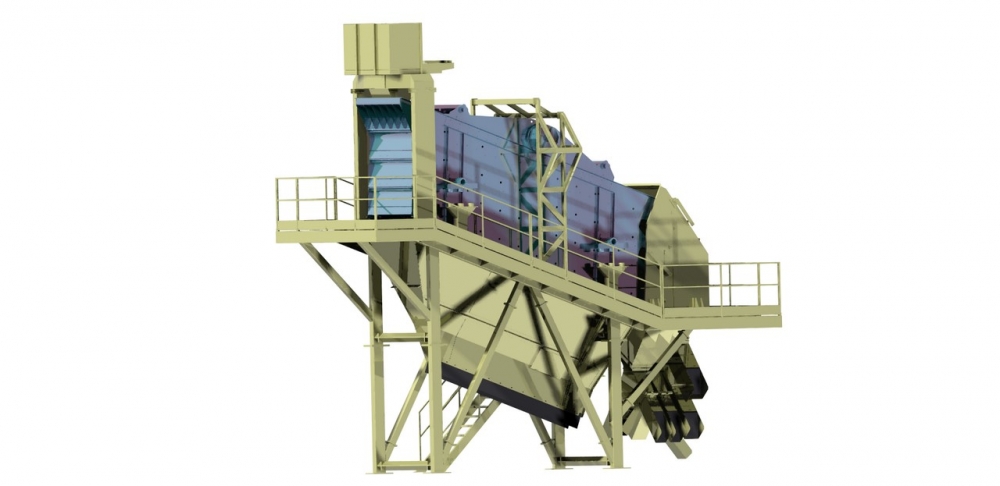

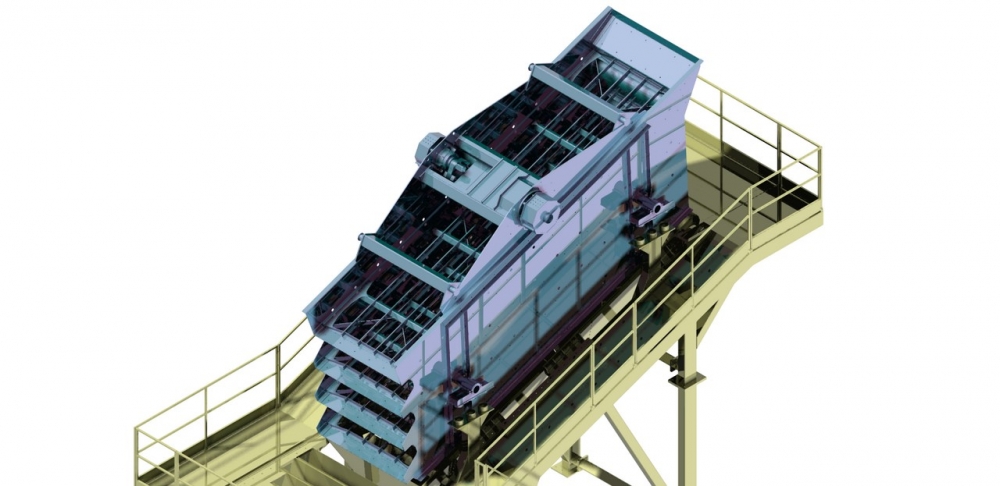

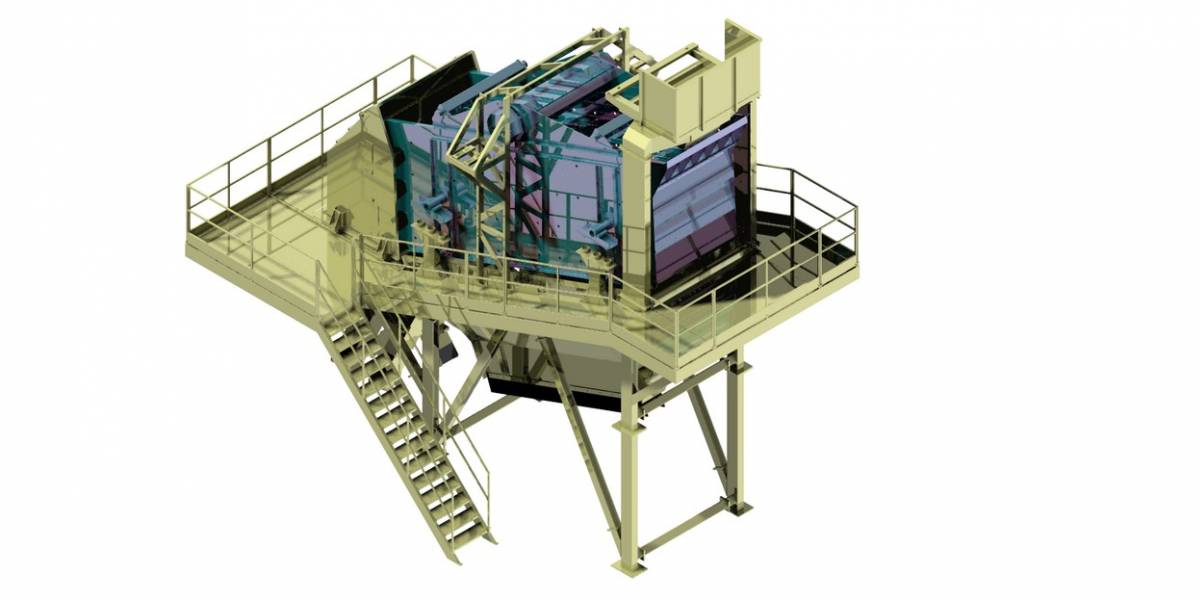

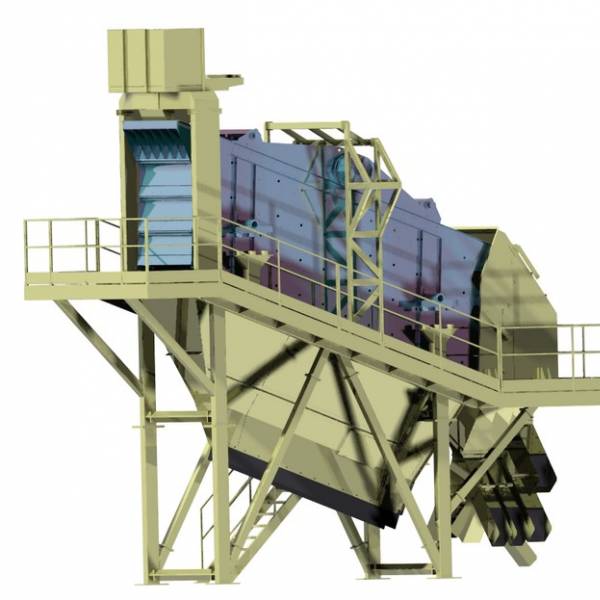

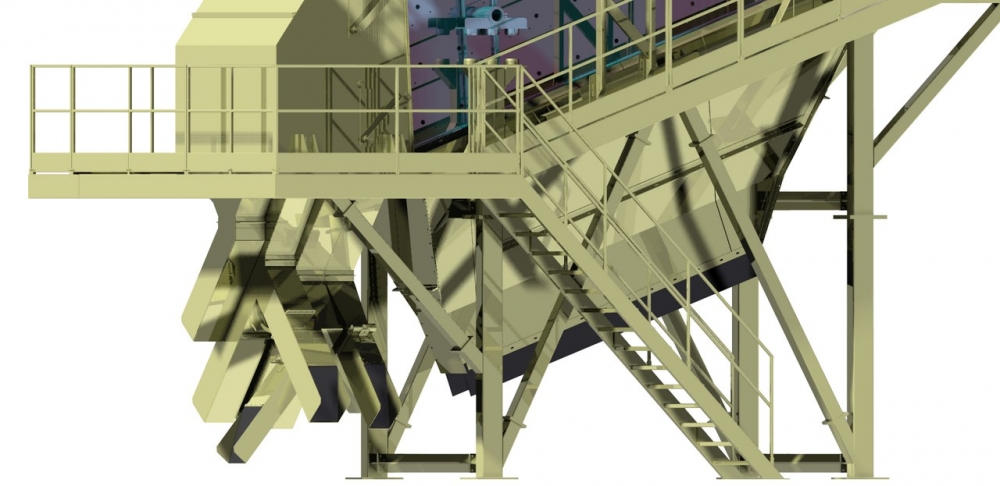

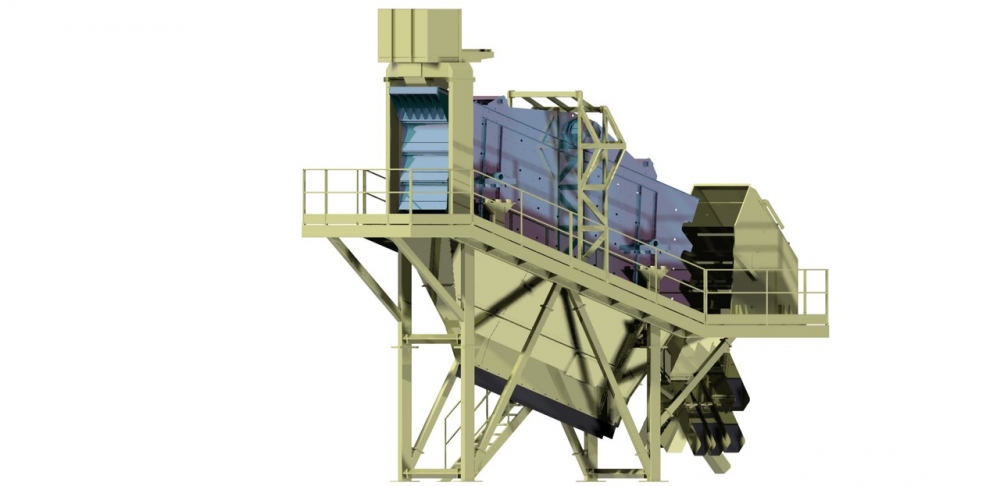

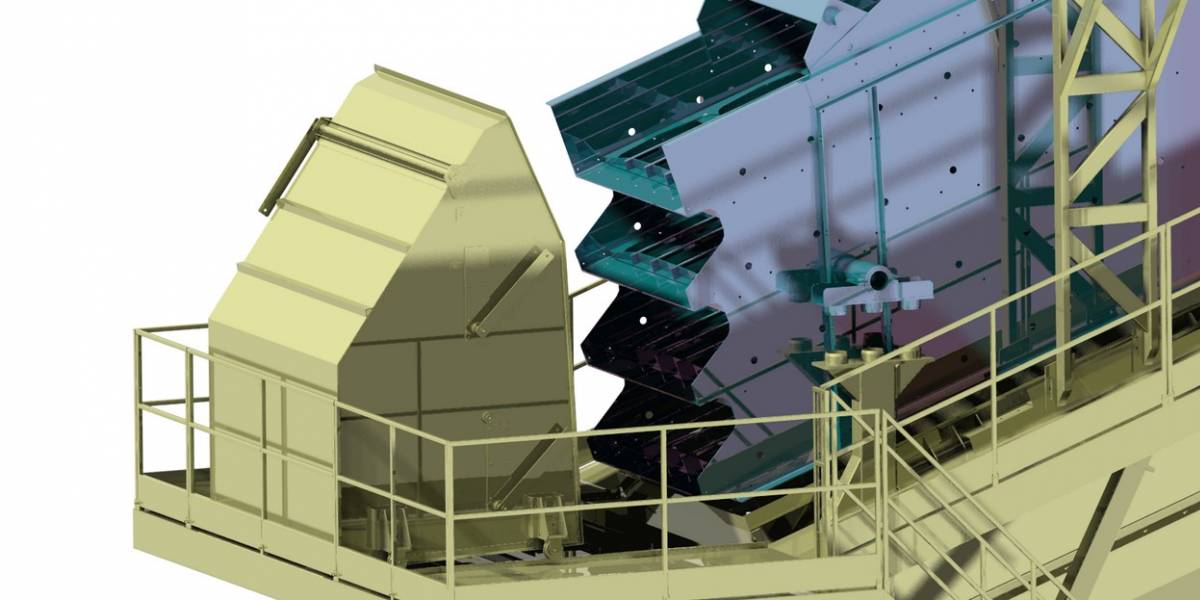

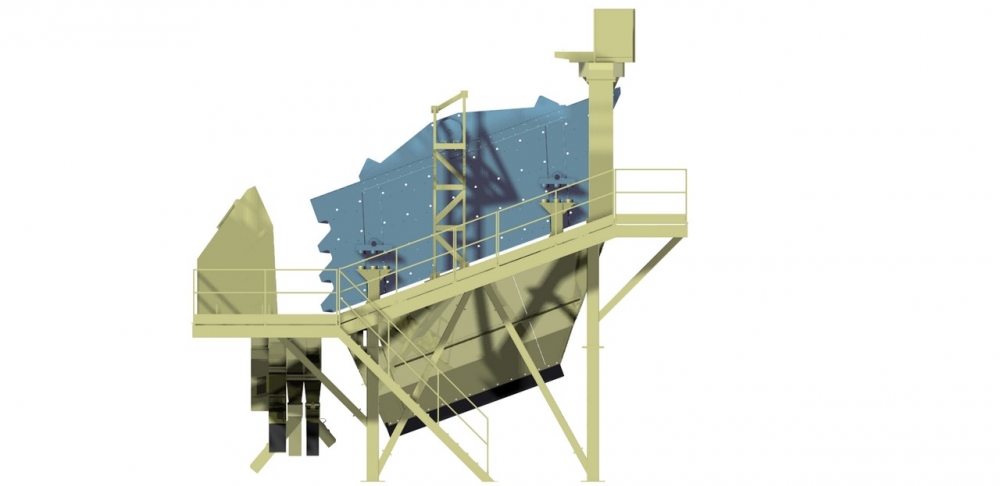

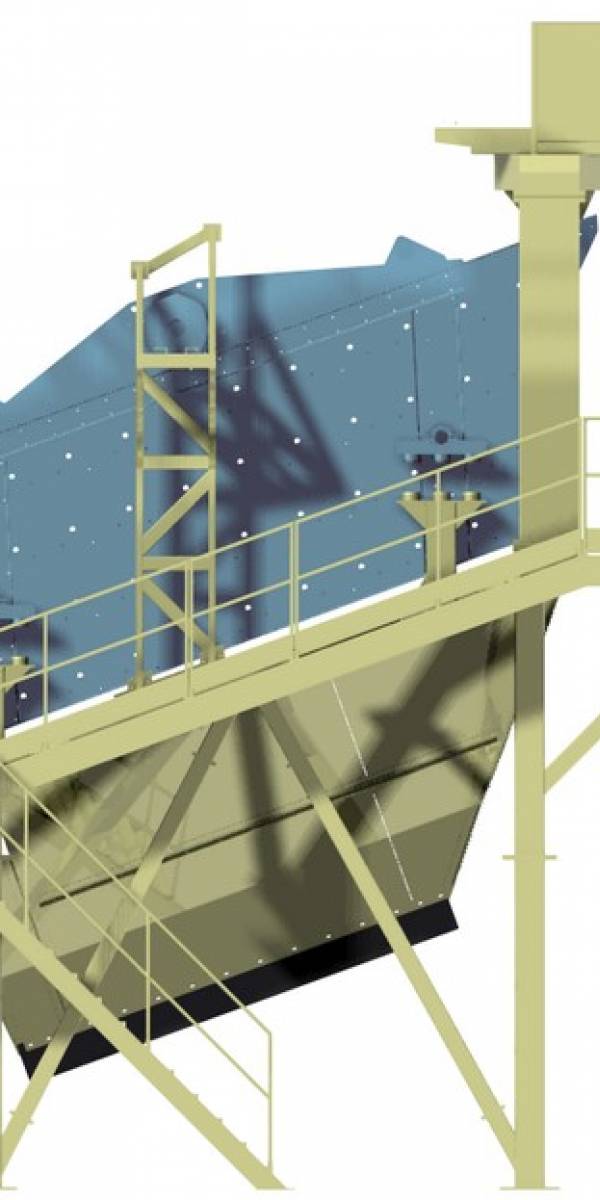

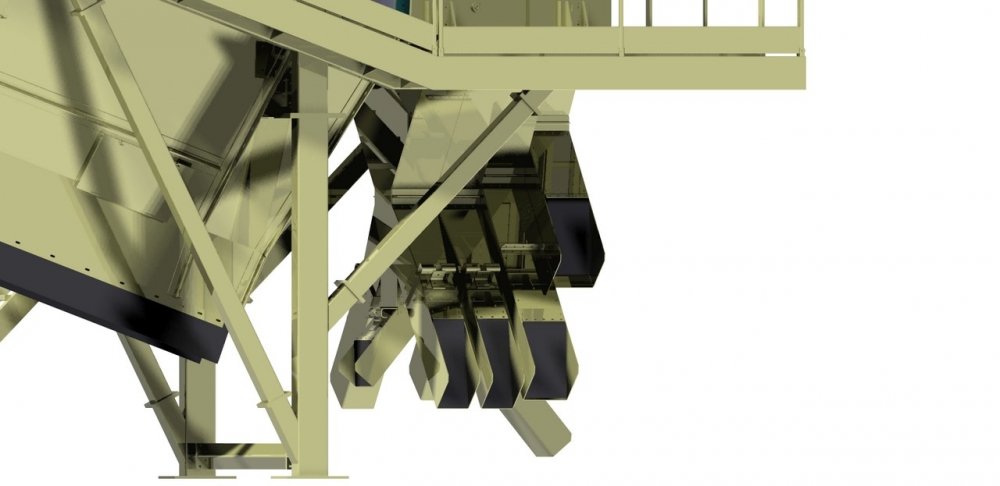

The specially designed position of vibrators gives the machine the following specialized vibration pattern:
- Feeding zone. Elliptical vibration towards the material direction for its quick movement through the whole screening surface.
- Central zone. Circular vibration for rhythmic forwarding of material flow.
- Output zone. Elliptical vibration on the contrary direction of material flow in order to increase screening capability

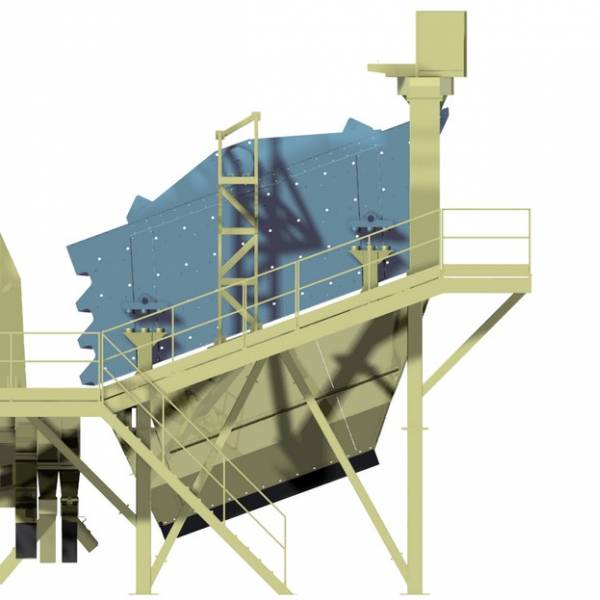

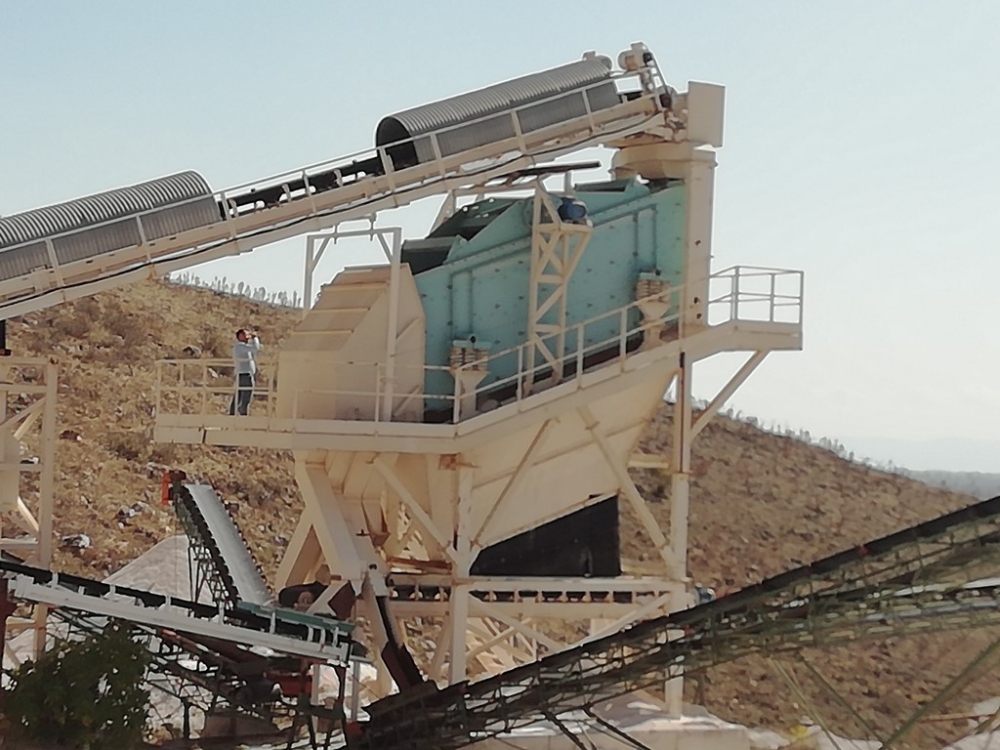

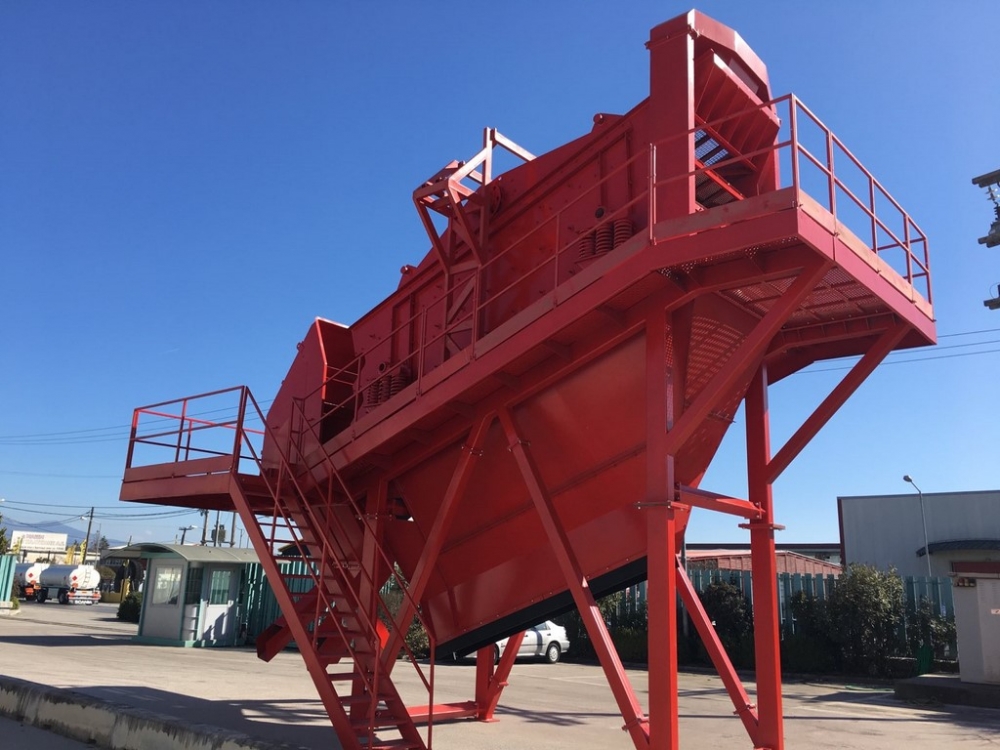

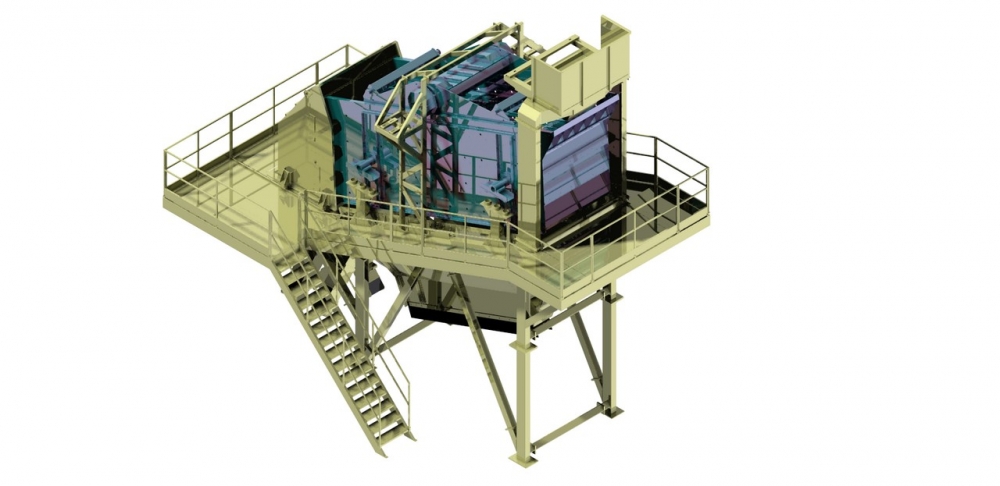

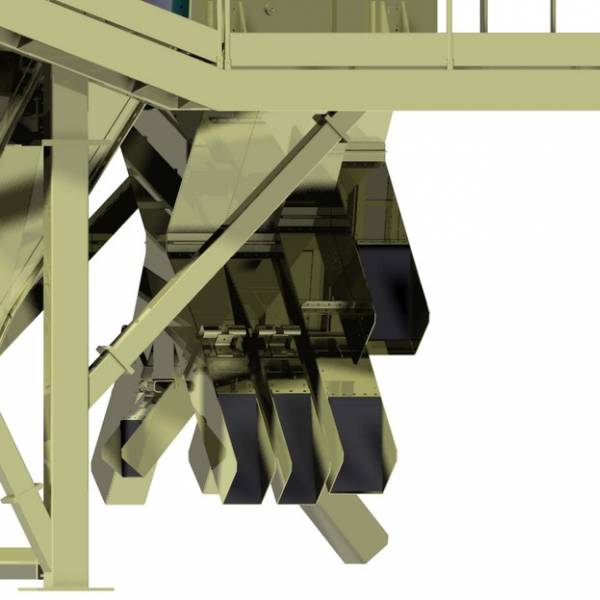

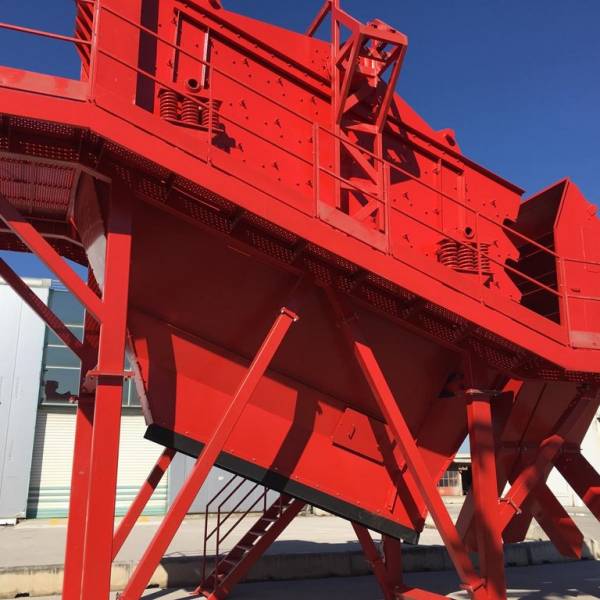

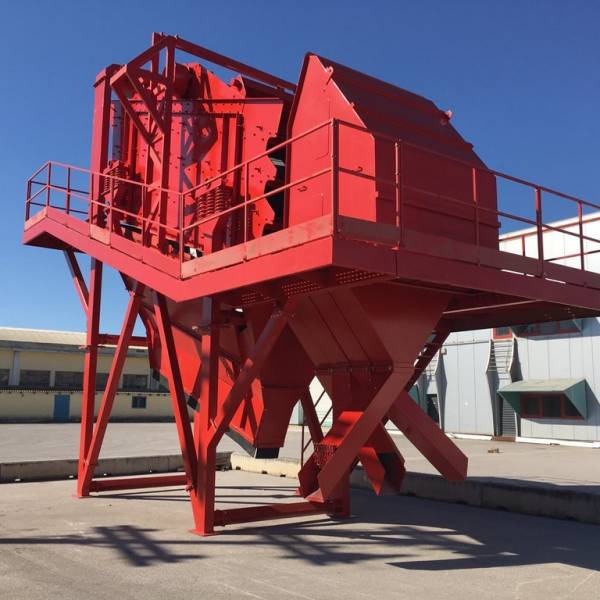

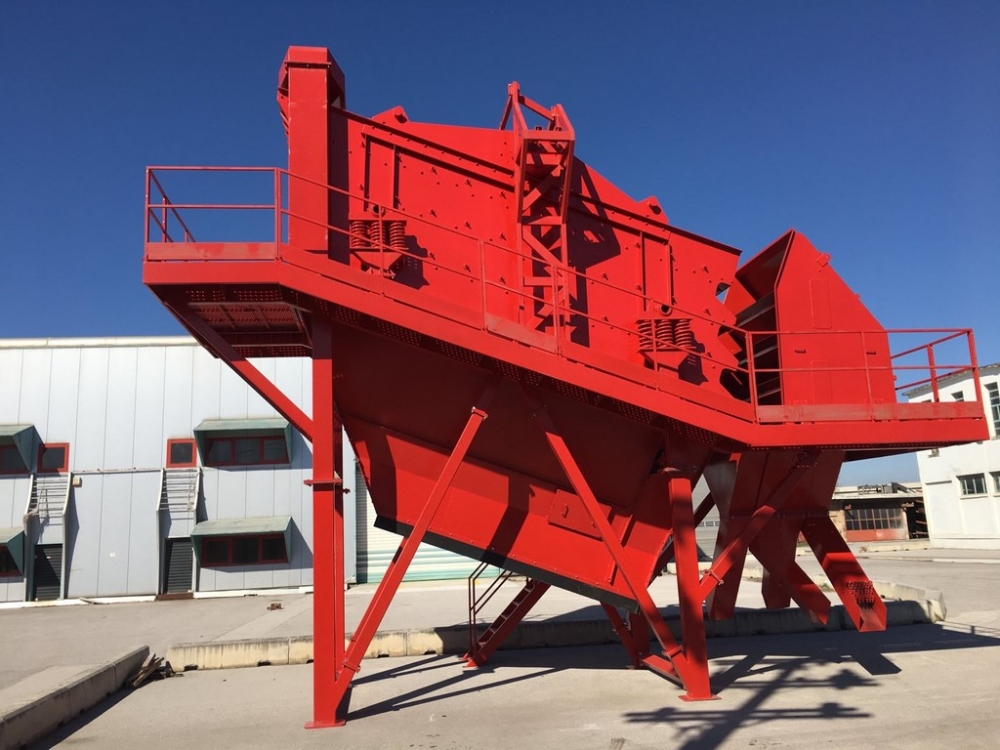

VIBRATED SCREEN VVE ELLITOR
|
|
VVE 30/10/2 |
VVE 40/12/3 |
VVE 50/15/2 |
VVE 50/15/3 |
VVE 60/18/3 |
VVE 60/18/4 |
VVE 70/21/3 |
|
Number of decks |
2 |
3 |
2 |
3 |
3 |
4 |
3 |
|
Width of vibrated surface (mm) |
1.000 |
1.200 |
1.500 |
1.500 |
1.800 |
1.800 |
2.100 |
|
Length of vibrated surface (mm) |
3.000 |
4.000 |
5.000 |
5.000 |
6.000 |
6.000 |
7.000 |
|
Input capacity (t/h) |
70 |
100 |
150 |
200 |
250 |
300 |
400 |
|
Weight (Kg) |
4.300 |
5.700 |
6.800 |
7.300 |
7.700 |
8.600 |
9.200 |
|
Power (Kw) |
|
1 x 7,5 |
2 x 7,5 |
2 x 7,5 |
2 x 11 |
2 x 11 |
2 x 17,5 |
|
Vibrating group on top |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
|
Adjustable vibrating group |
NO |
NO |
YES |
YES |
YES |
YES |
YES |
|
Stamped molded screens, screwed at sides |
NO |
NO |
YES |
YES |
YES |
YES |
YES |
|
Combination of elliptical and circular vibrating movements |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
|
Vibrating screens with washing |
NO |
YES |
YES |
NO |
YES |
NO |
NO |
|
Angle 0 |
180 |
180 |
150-200 |
150-200 |
150-200 |
150-200 |
180 |
