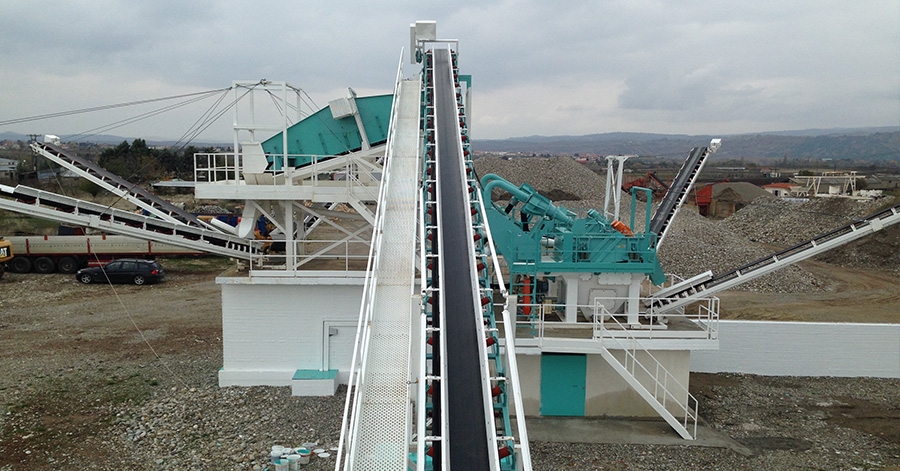

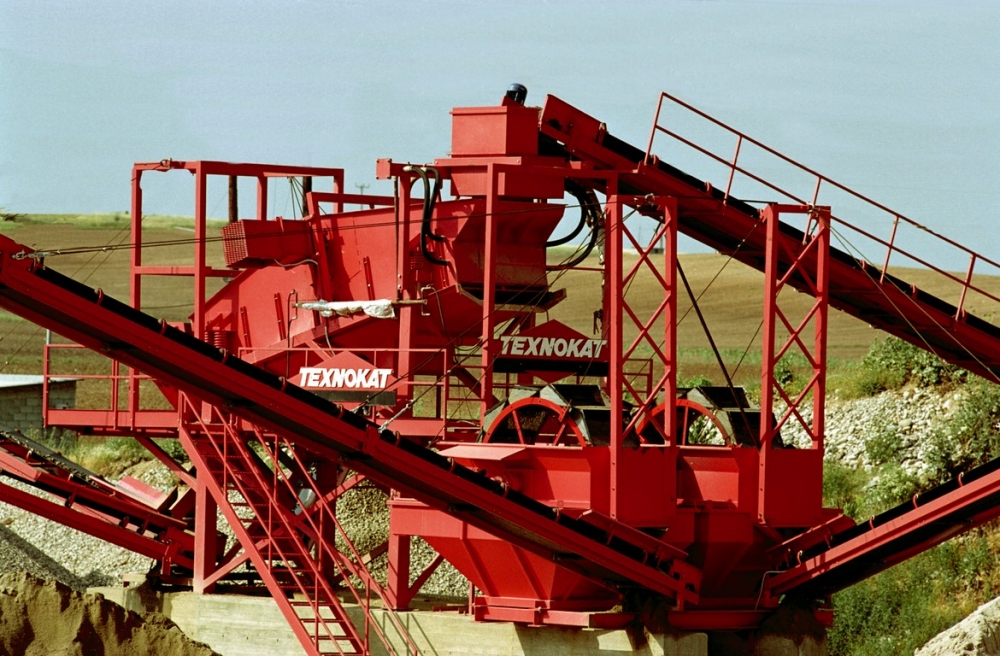

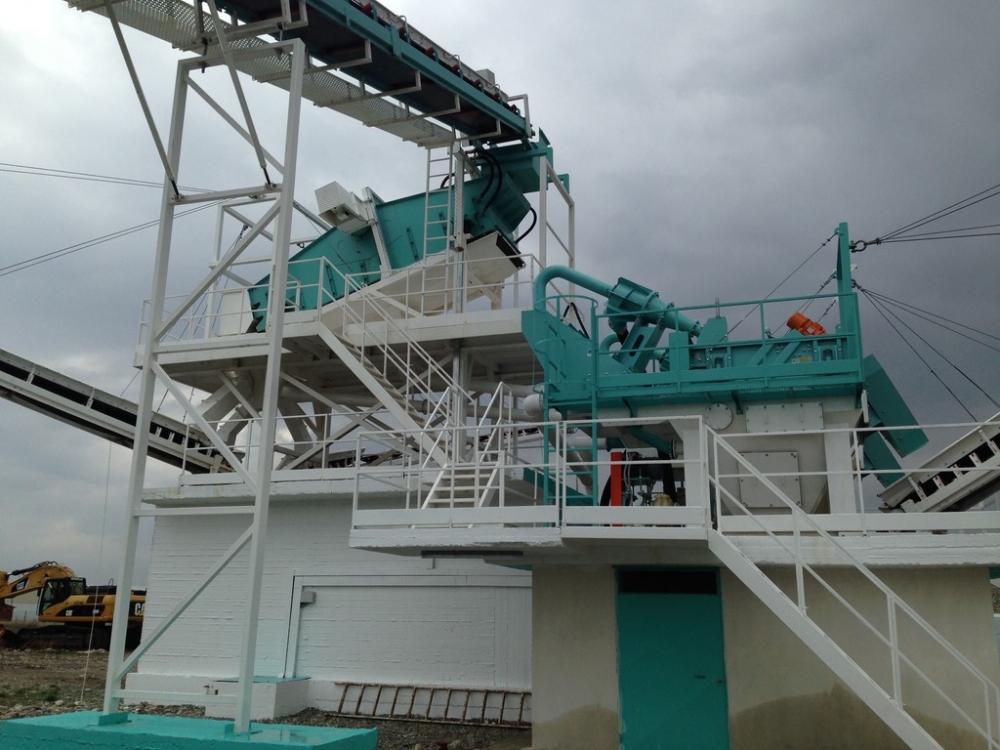

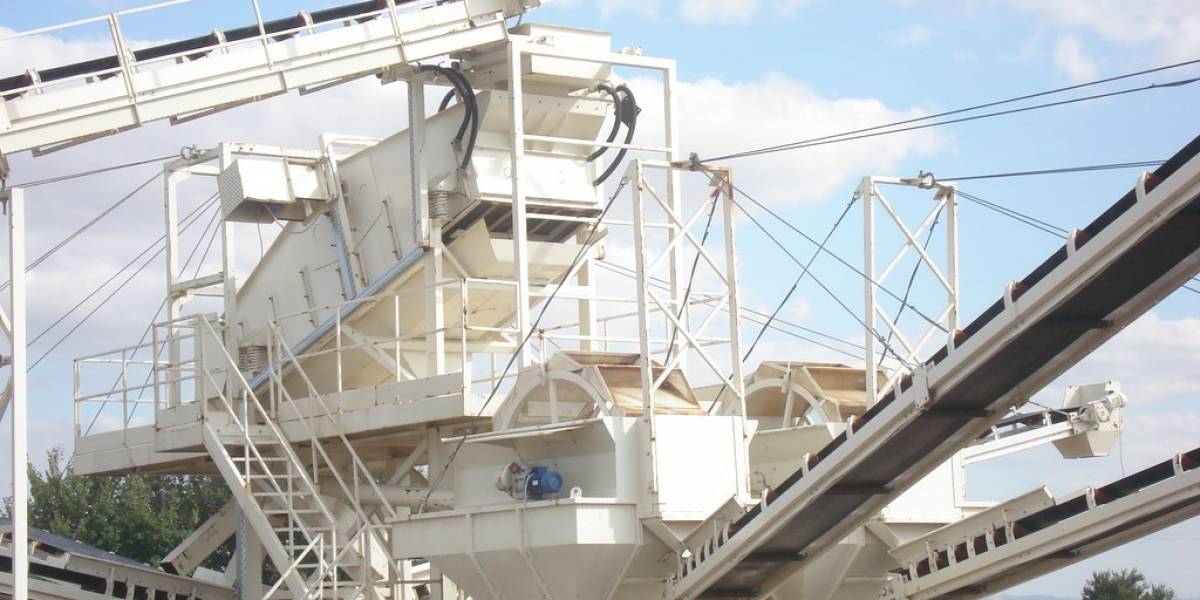

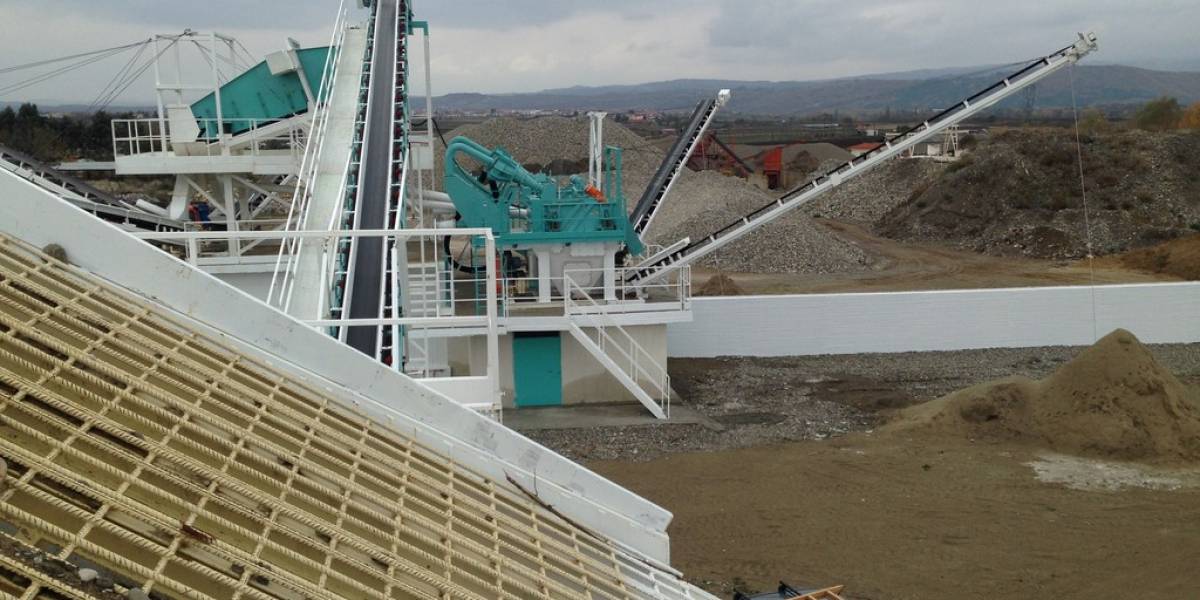

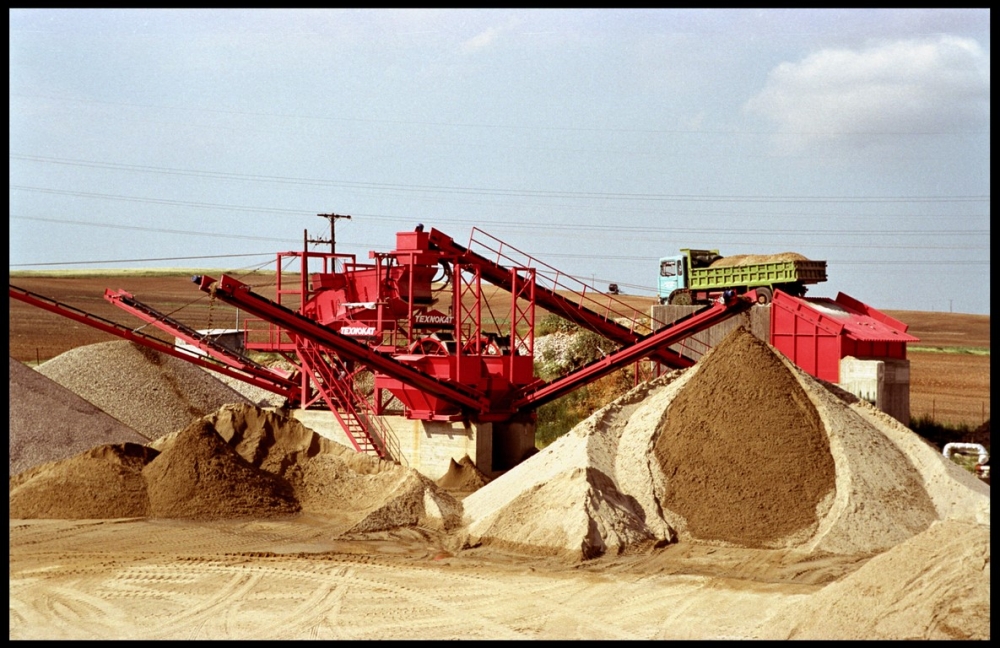

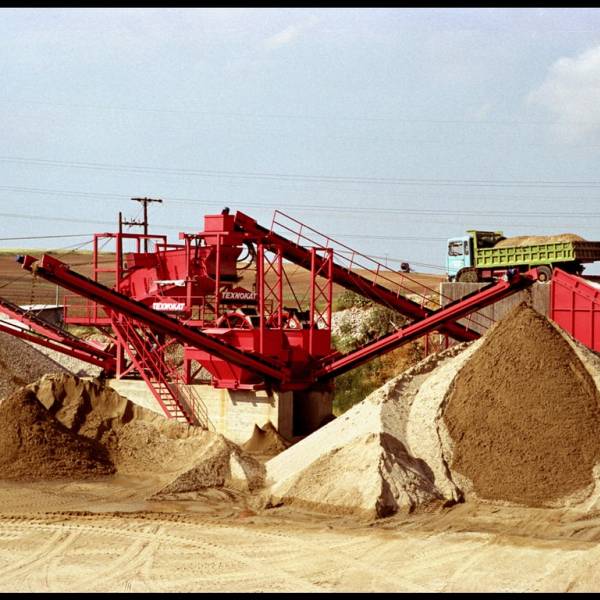

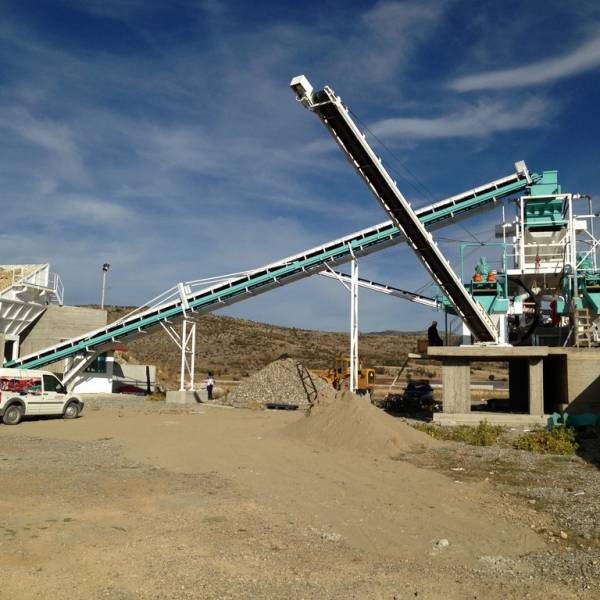

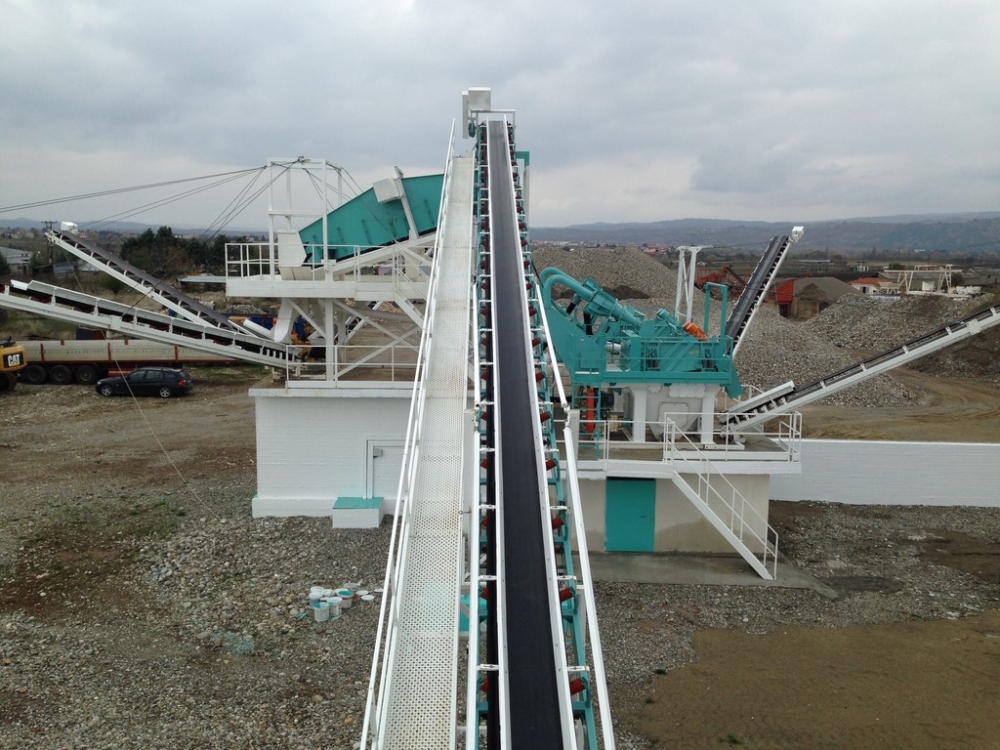

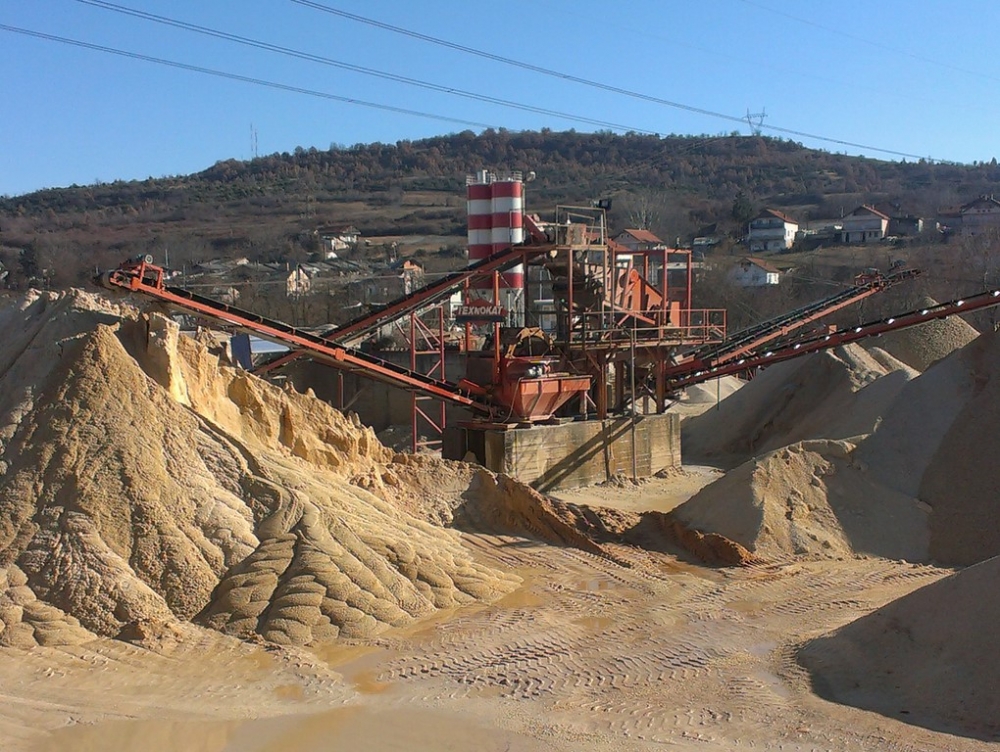

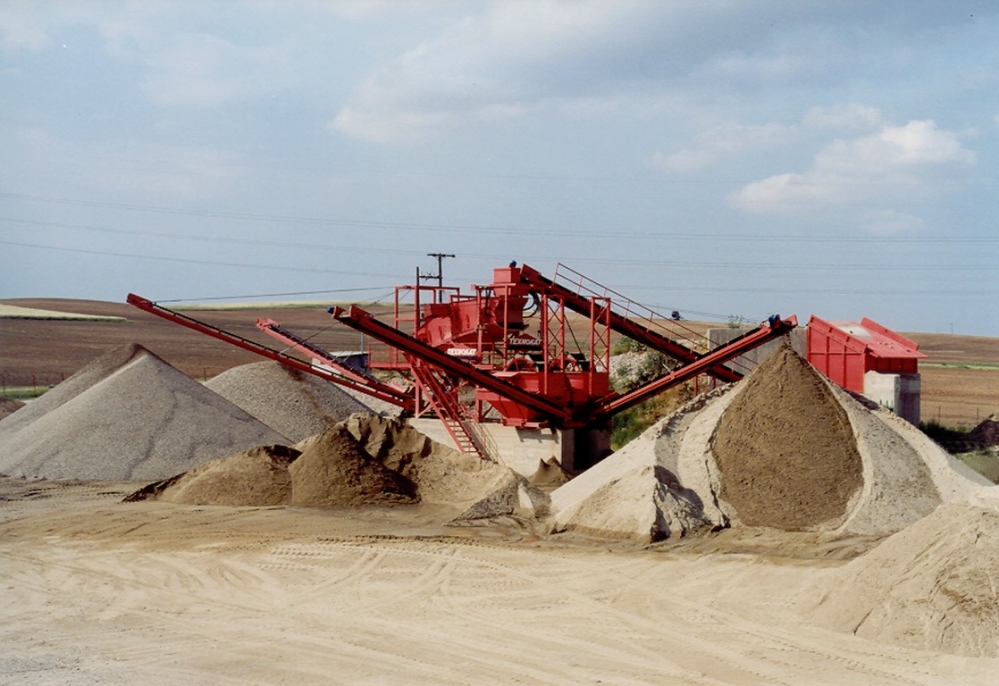

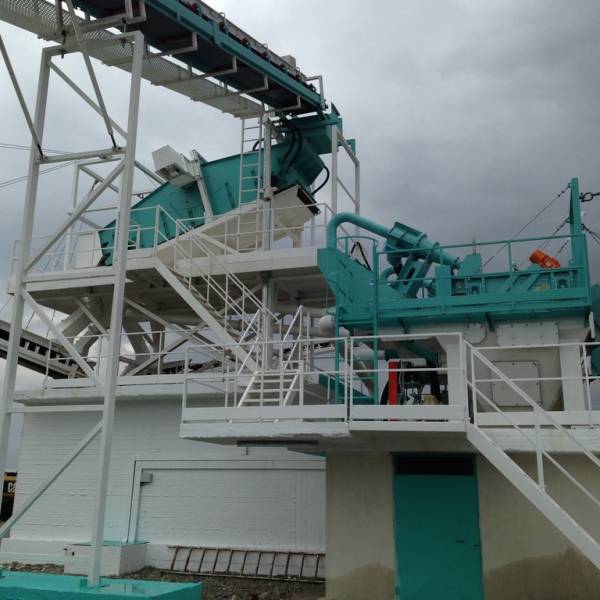

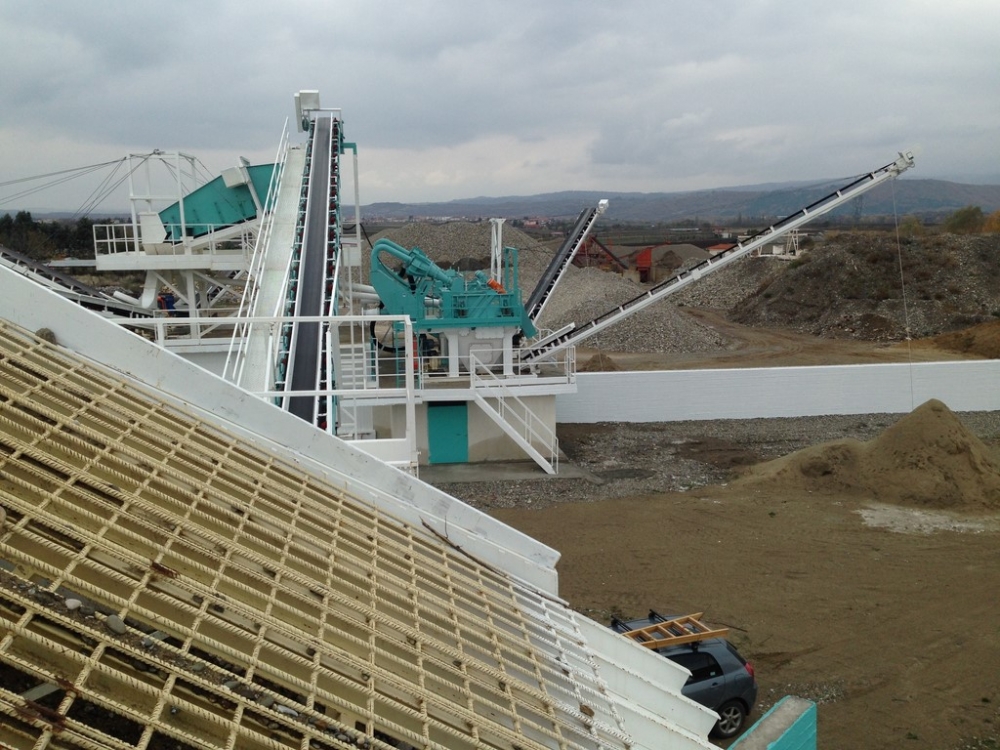

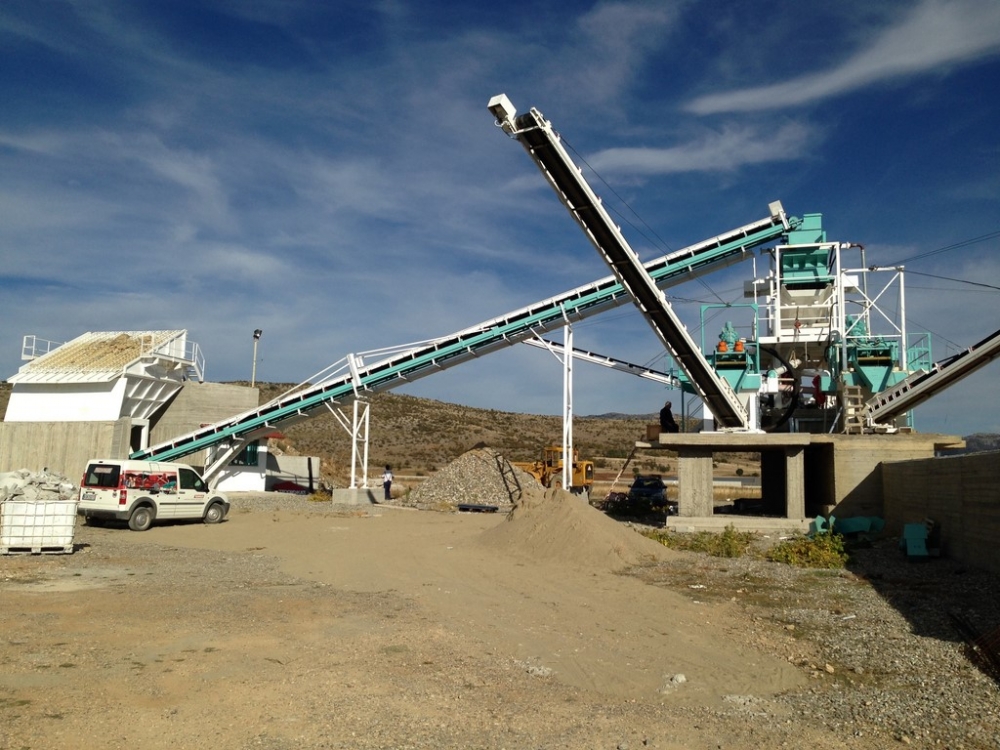

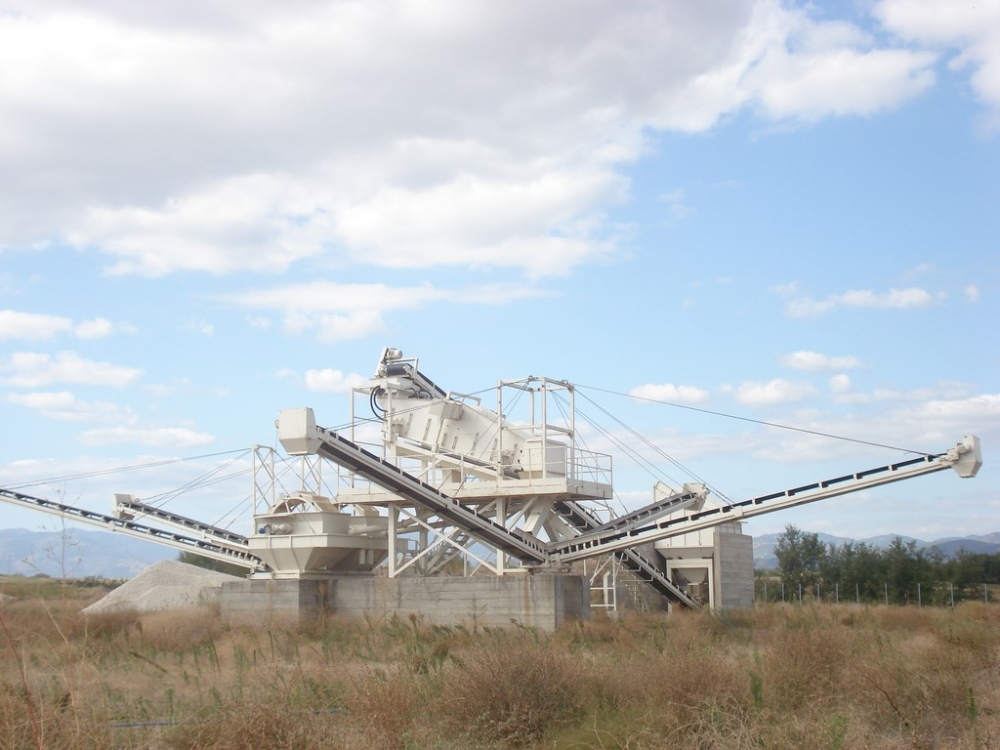

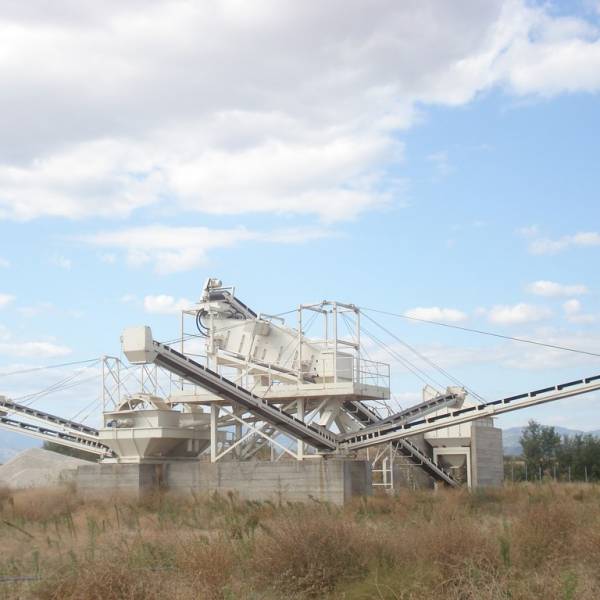

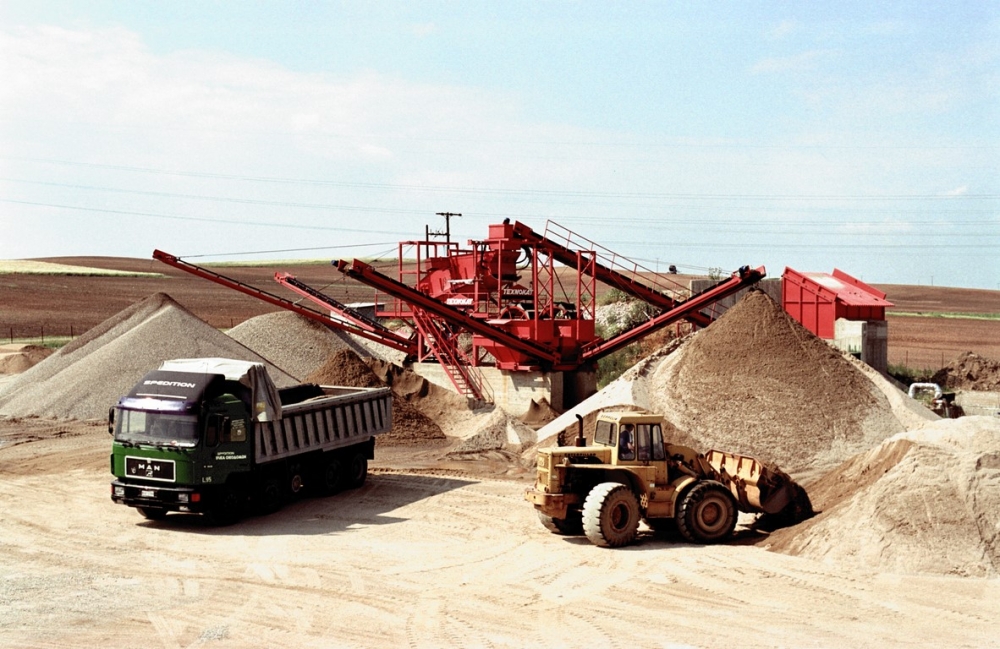

SAND WASHING UNIT ‘PHILLIPOS’. Group TEXNOKAT responds to the requirements for a qualitative upgrade of the production of aggregates in combination with a high productivity index. Creates a special production line named ‘PHILLIPOS’ for sand washing complete systems.

Construction market have high requirements for sand and stone cleaning. Sand washing systems are the most important step in the sand production line and plays a vital role in the quality of sand.

 Sand washing system operation can prevent blockage of mine bins, chutes, funnels and crushing and screening equipment. If the sand washing machine is not used, the crushing and screening equipment will be reduced in processing capacity. If the blockage is serious, the production will not proceed normally.

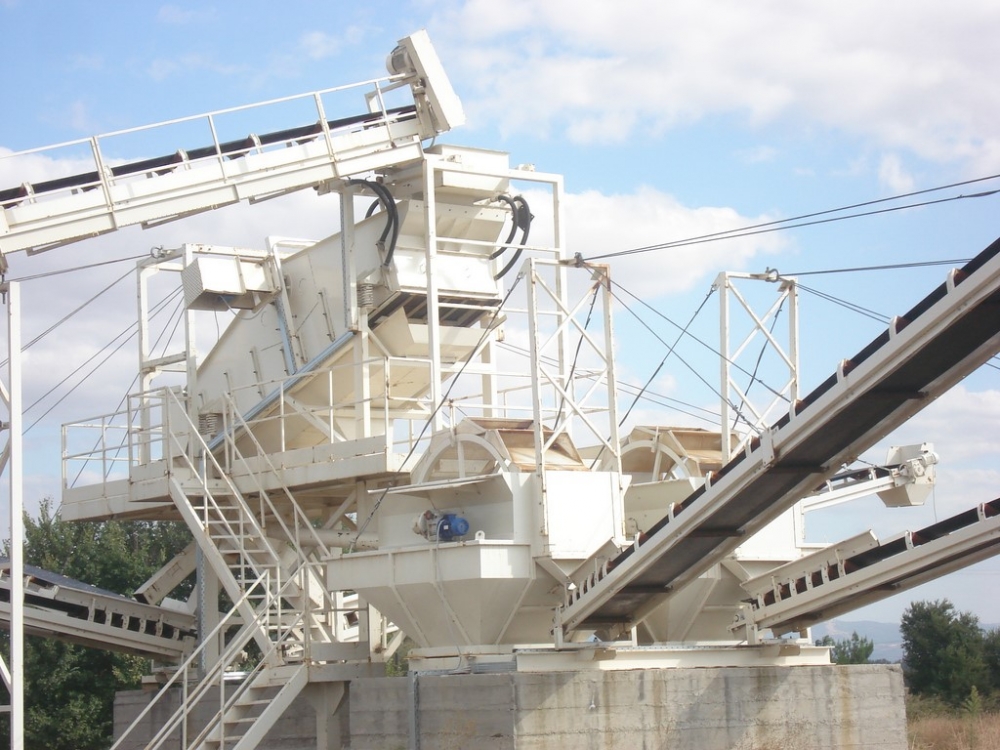

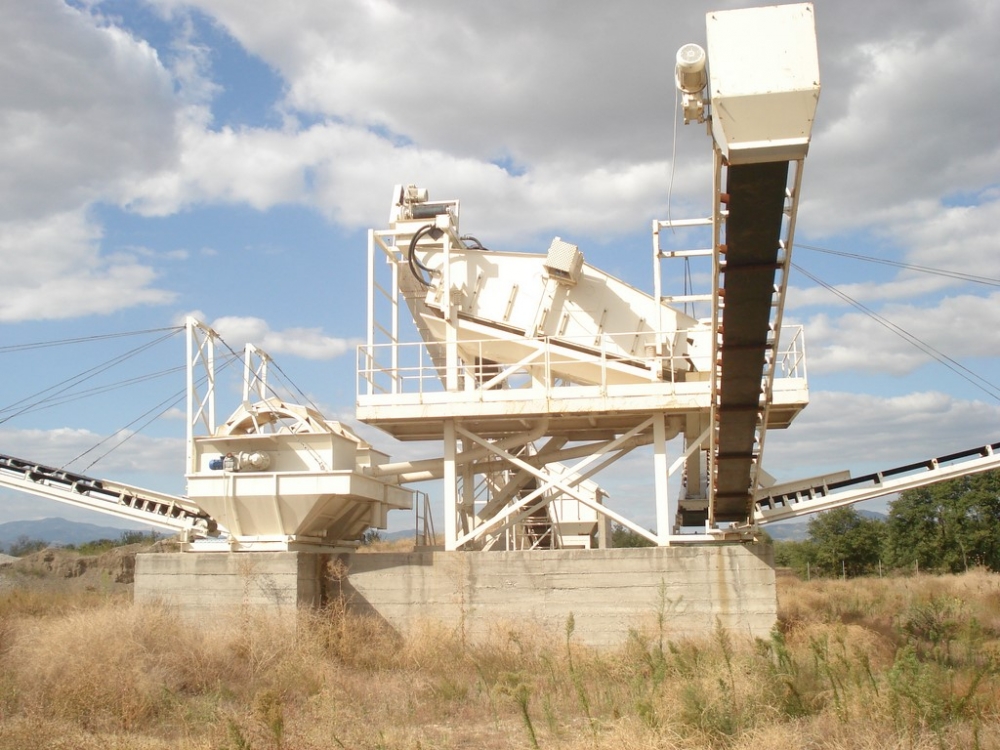

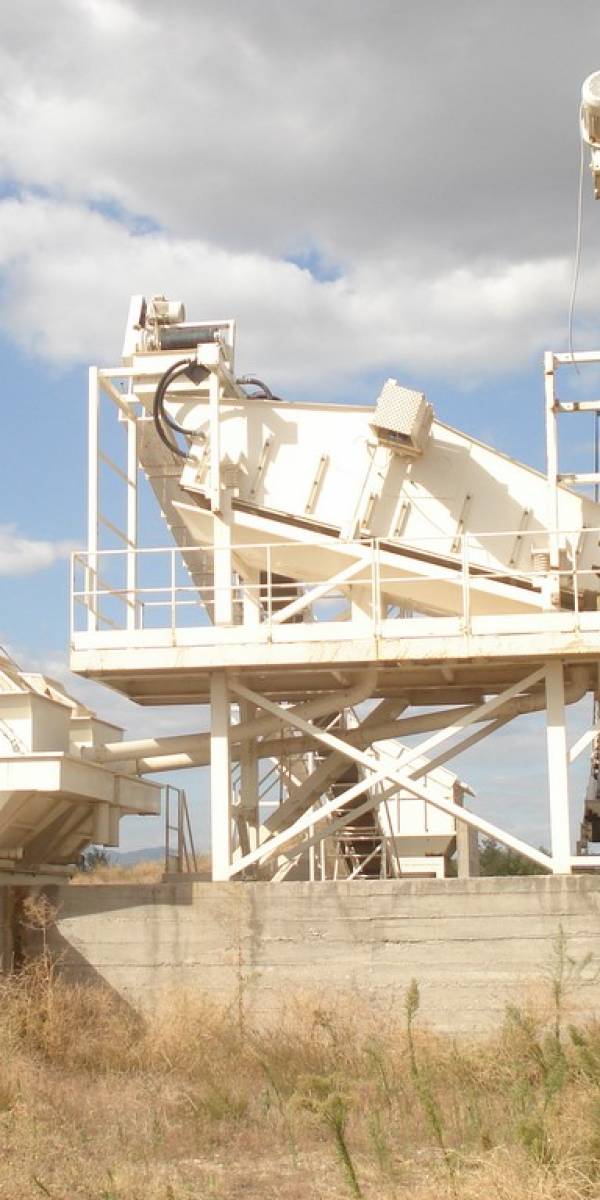

VIBRATING SCREENS WITH WASHING, VVE ELLITOR

Depending on the treatable material, the gravity center of vibration system can be moved for optimization of vibration pulse direction.

  • Exceptional screening due to form, height and placing of vibration
  • Moveable gravity center depending on the material for screening
  • Large screening surface without obstacle from the vibrating shaft
  • Washing capability on every deck

PHILLIPOS FAMILY

MODEL

INCLUDE

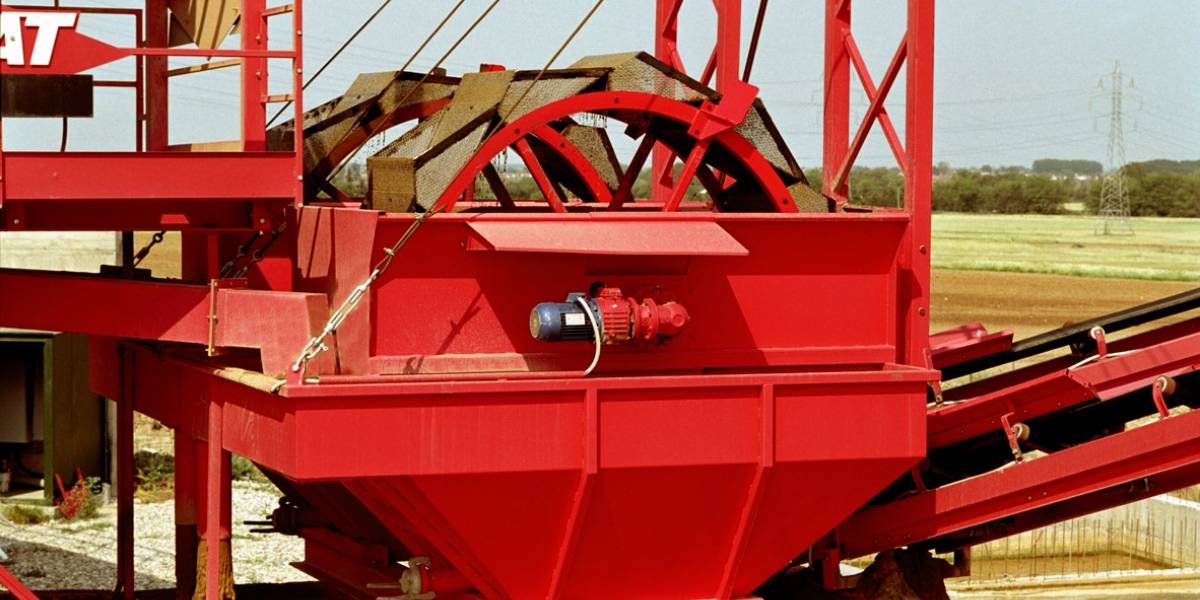

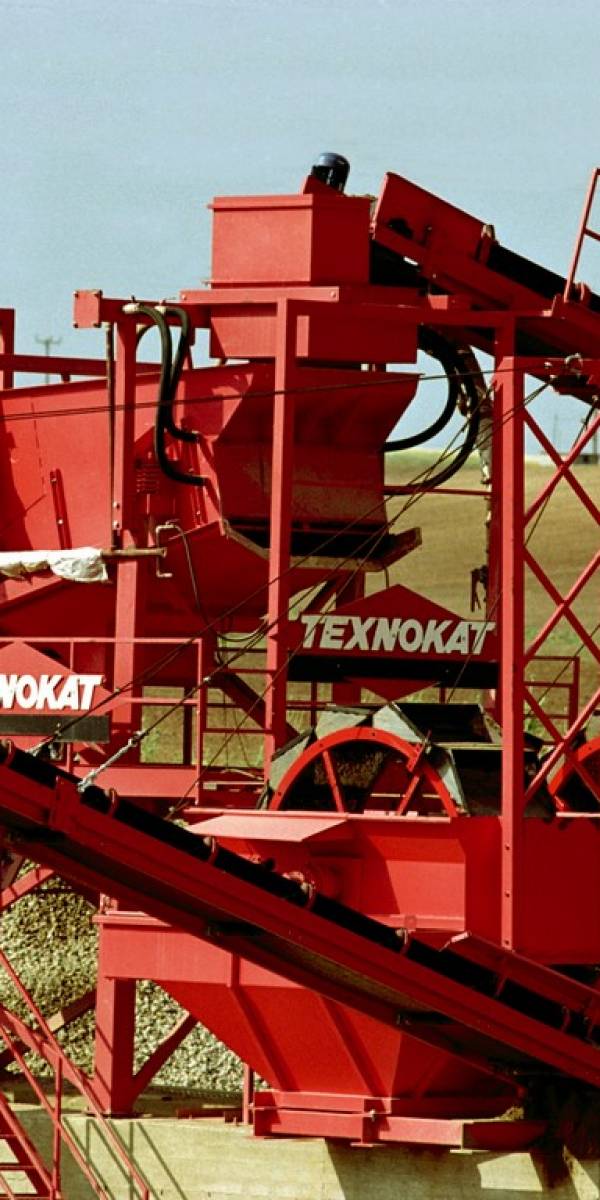

PHILLIPOS 20 RRT1

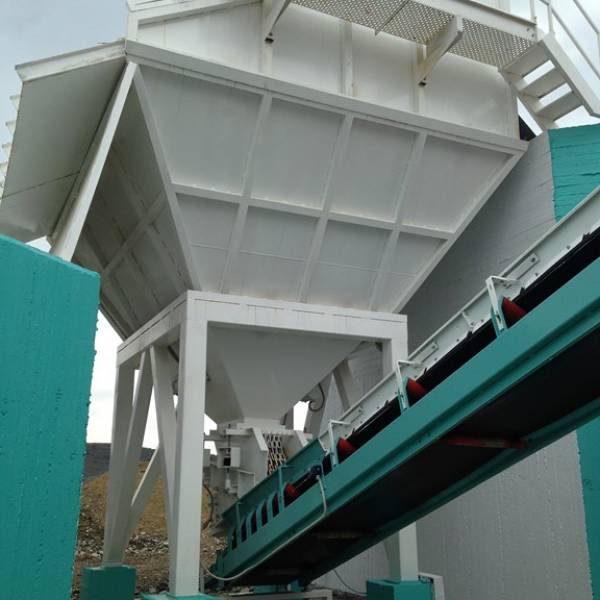

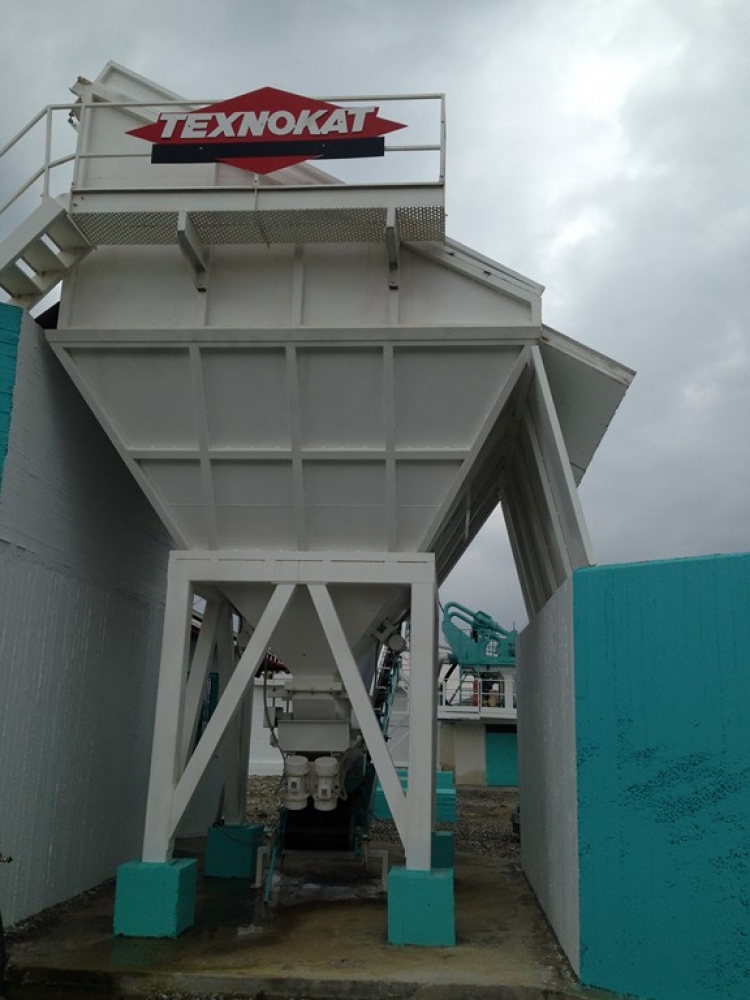

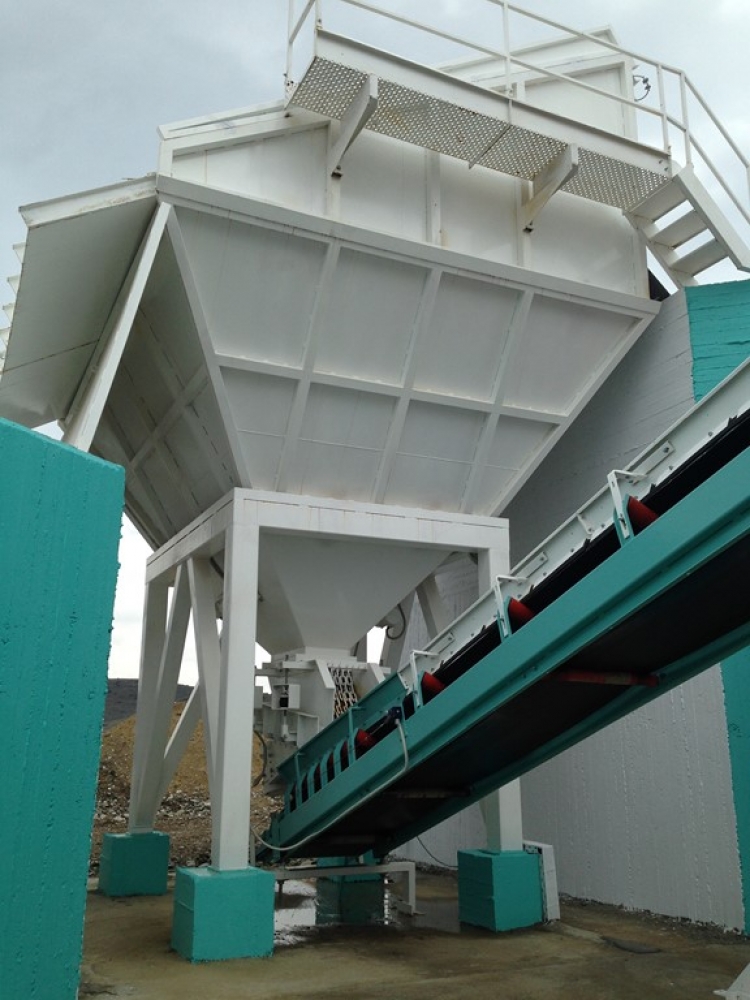

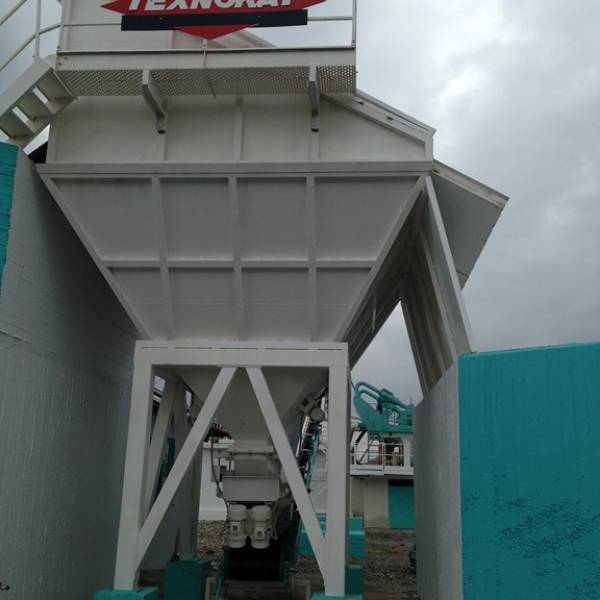

HOPPER 8m3, VIBRATOR FEEDER AV 50/100, SCREEN VVE 30/11/2, WHEEL RRT1, THREE (3) CONVEYOR BELTS, ELECTRICAL BORD.

PHILLIPOS 40 HR

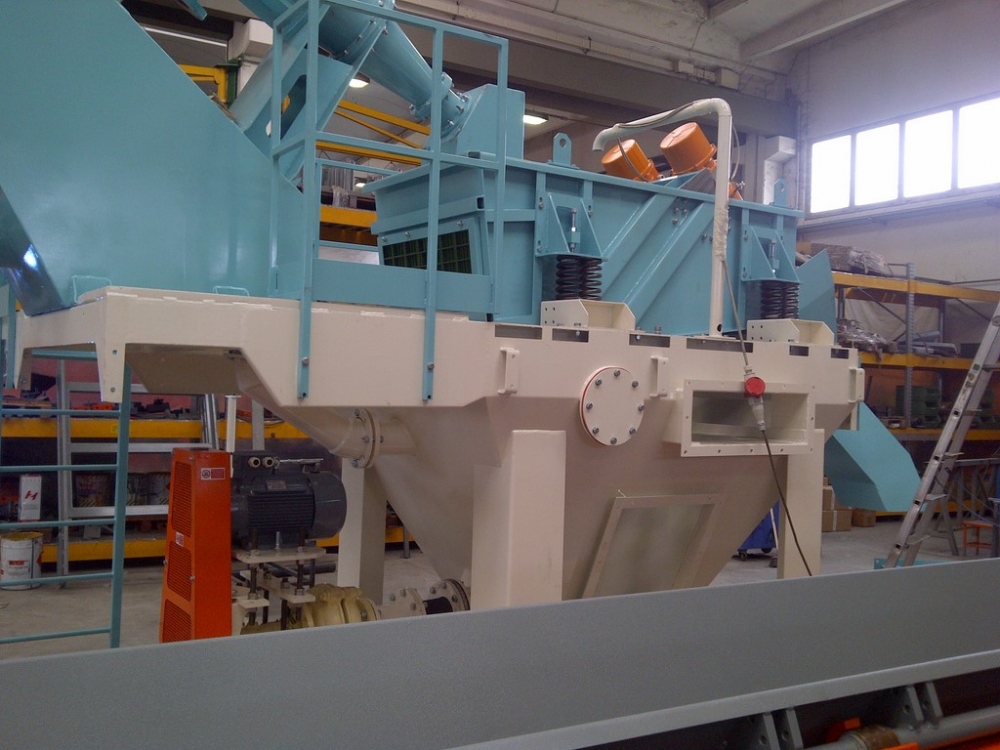

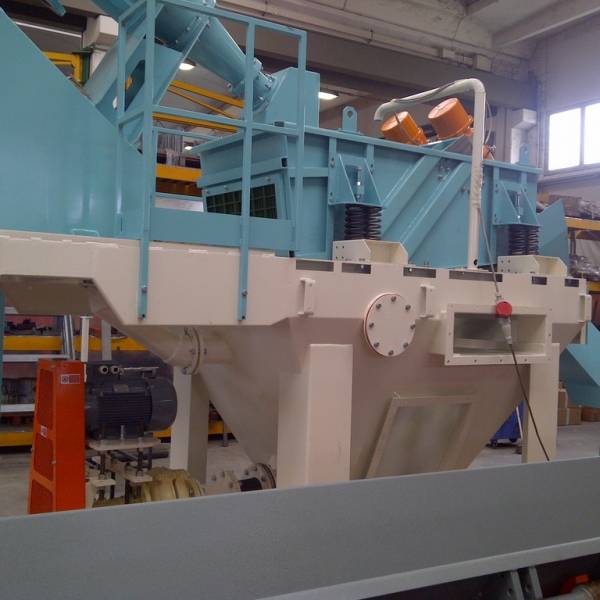

HOPPER 15m3, VIBRATOR FEEDER AV 65/130, SCREEN VVE 40/12/2, HYDROCYCLONE URS 40/4000, THREE (3) CONVEYOR BELTS, ELECTRICAL BORD.

PHILLIPOS 60 RRT2

HOPPER 20m3, VIBRATOR FEEDER AV 65/130, SCREEN VVE 40/12/3, WHEEL RRT2, FOUR (4) CONVEYOR BELTS, ELECTRICAL BORD.

PHILLIPOS 80 HR

HOPPER 20m3, VIBRATOR FEEDER AV 65/130, SCREEN VVE 50/15/2, HYDROCYCLONE URS 90/4000, THREE (3) CONVEYOR BELTS, ELECTRICAL BORD.

PHILLIPOS 120 RRT2

HOPPER 25m3, VIBRATOR FEEDER AV 80/160, SCREEN VVE 60/18/3, TWO (2) WHEEL RRT2, FOUR (4) CONVEYOR BELTS, ELECTRICAL BORD.

PHILLIPOS 120 HR

HOPPER 25m3, VIBRATOR FEEDER AV 80/160, SCREEN VVE 60/18/3, HYDROCYCLONE URS 120/6000, FOUR (4) CONVEYOR BELTS, ELECTRICAL BORD.

PHILLIPOS 150 HR

HOPPER 40m3, VIBRATOR FEEDER AV 100/200, SCREEN VVE 60/18/4, HYDROCYCLONE URS 150/8000, FIVE (5) CONVEYOR BELTS, ELECTRICAL BORD.
