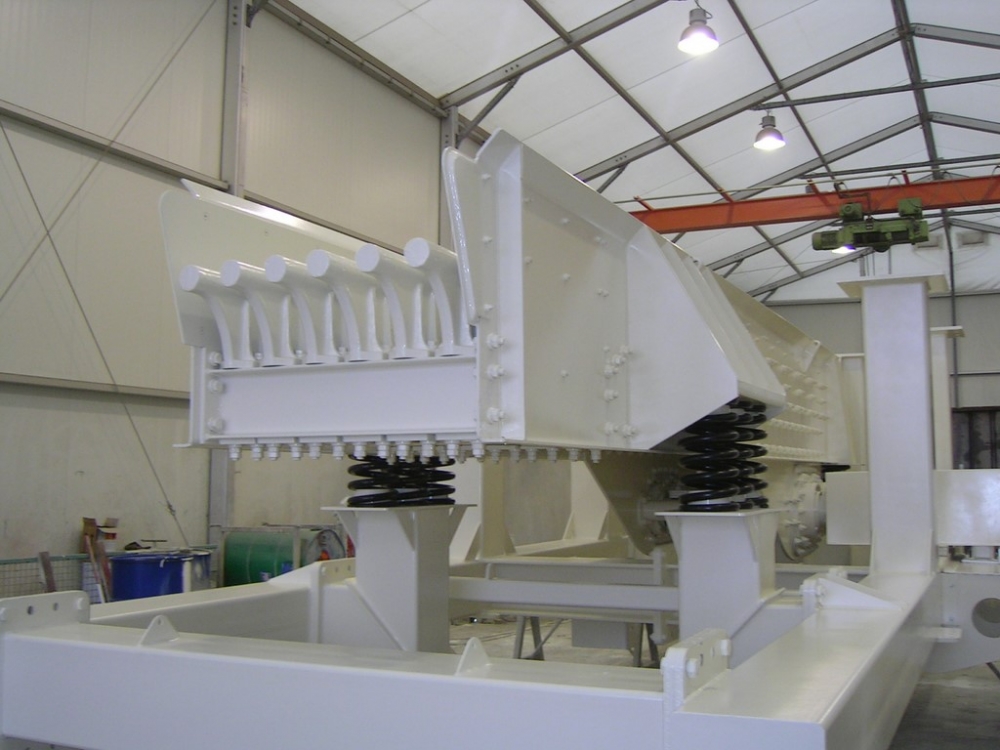

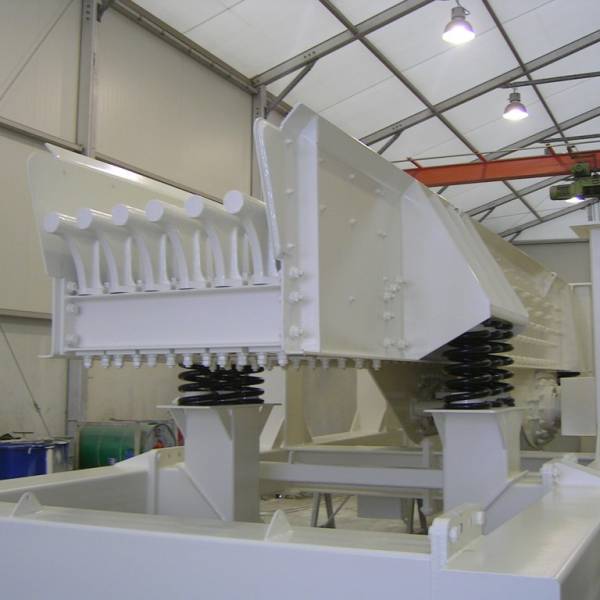

Horizontal Vibrated Feeder

The New Horizontal Level Vibrating Feeder from ILIATORAS S.A.

GROUP ΤΕΧΝΟΚΑΤ advanced its production for a new product, to add in the family of quarry equipment, the horizontal vibrating feeder with dual axle. This is meant for the evolution of family of feeders, combined with grizzly screen and feeding hopers suitable for crushers with inlet mouth size1, 0 until 1,4 meters.

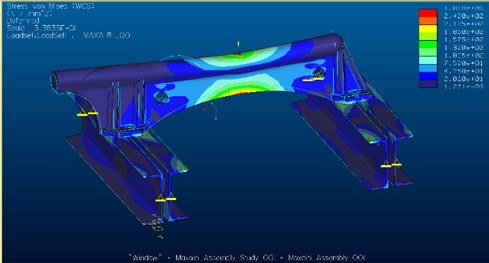

The study was held and completed with the help of the finite data (as seen in the picture), it allowed us to maximize the range of vibration by maintaining the same power.

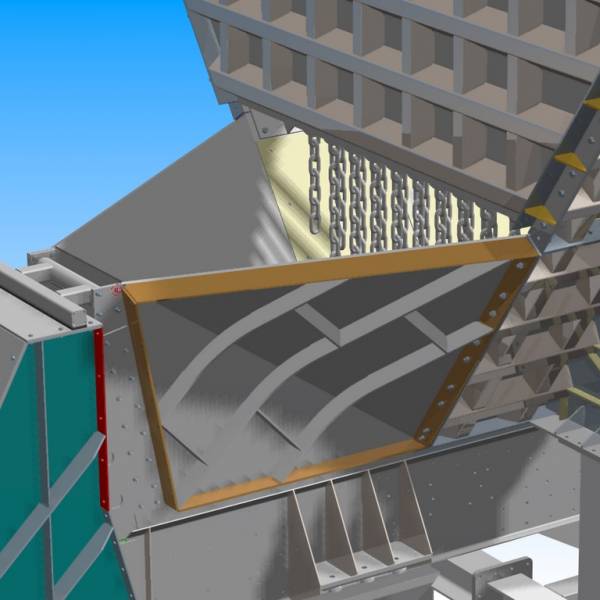

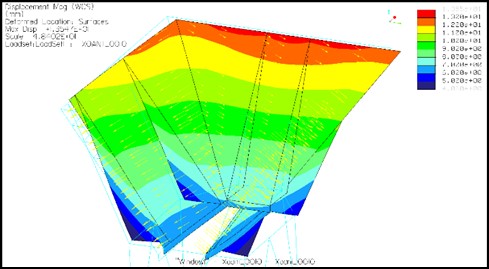

Analysis of primary inlet hopper with the method of finite data

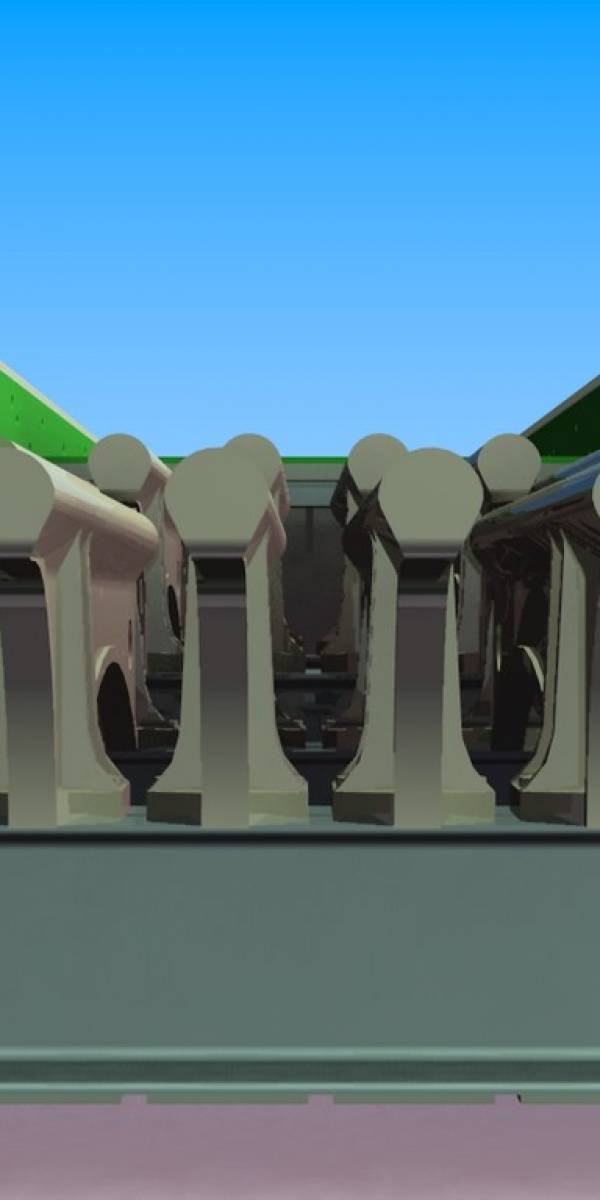

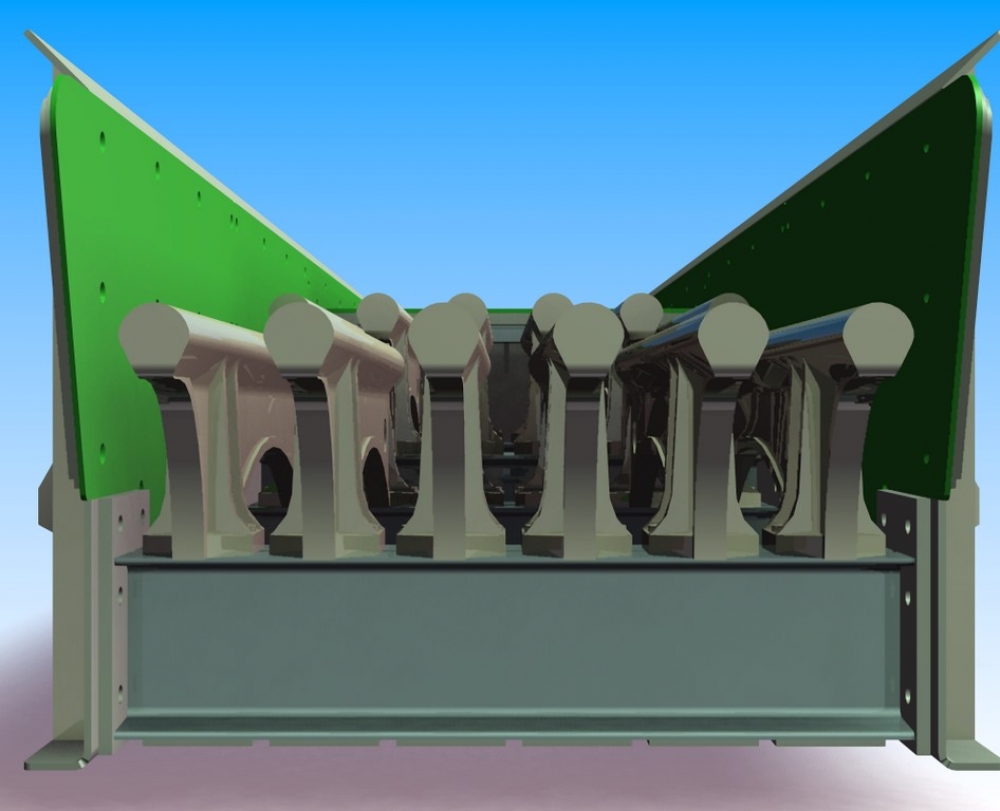

Analysis of Grizzly Screen Bars with the method of infinite data

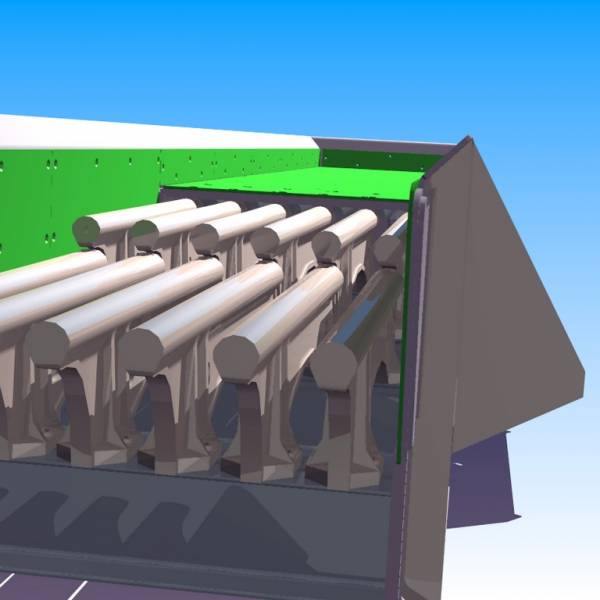

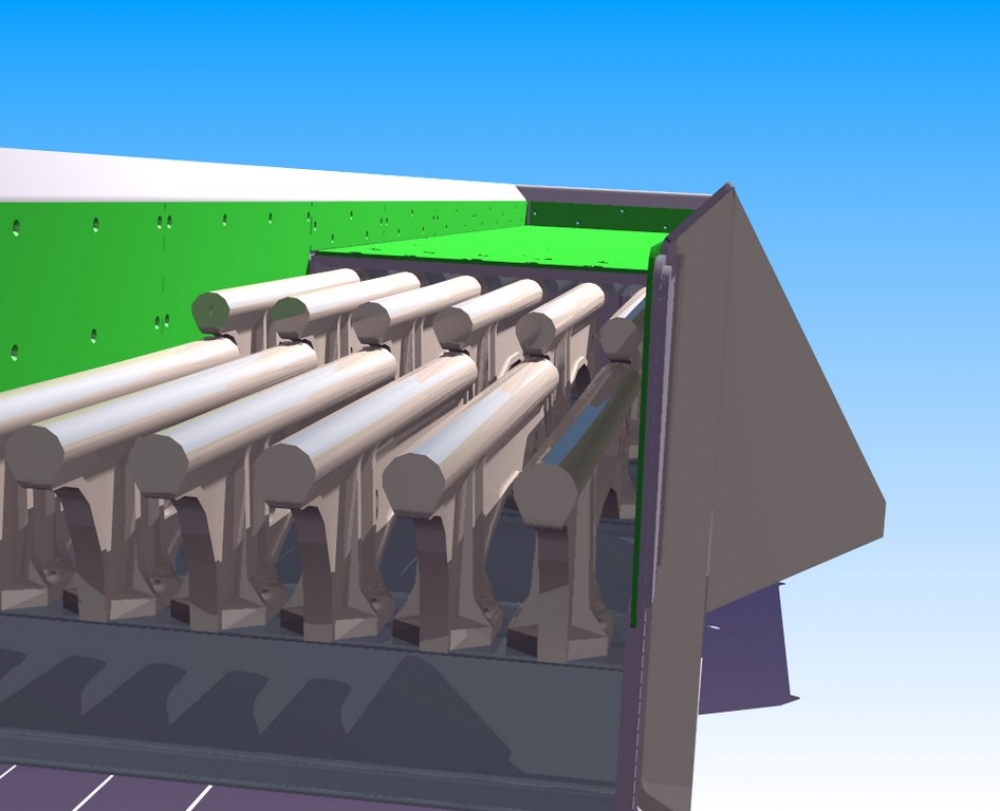

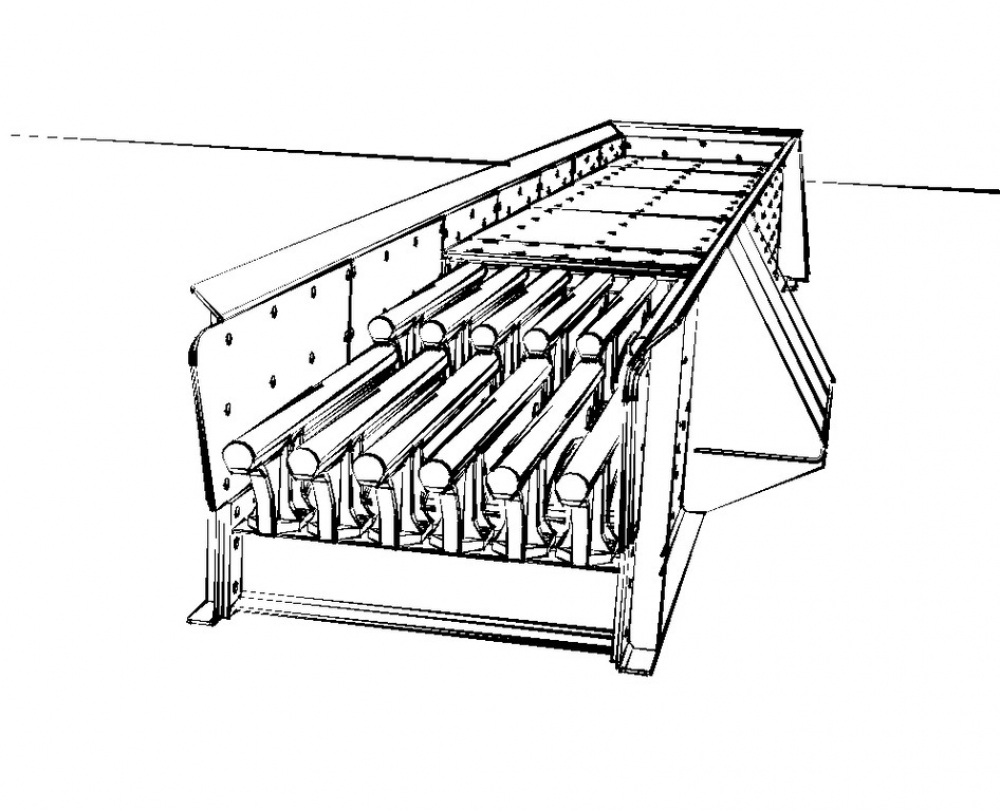

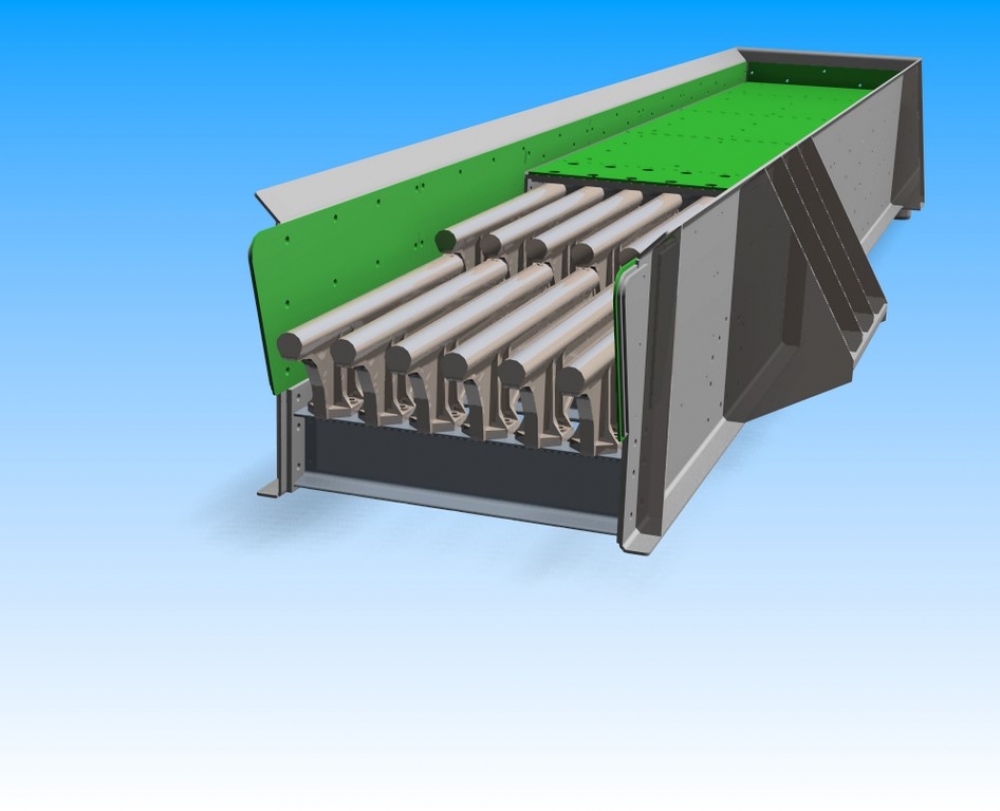

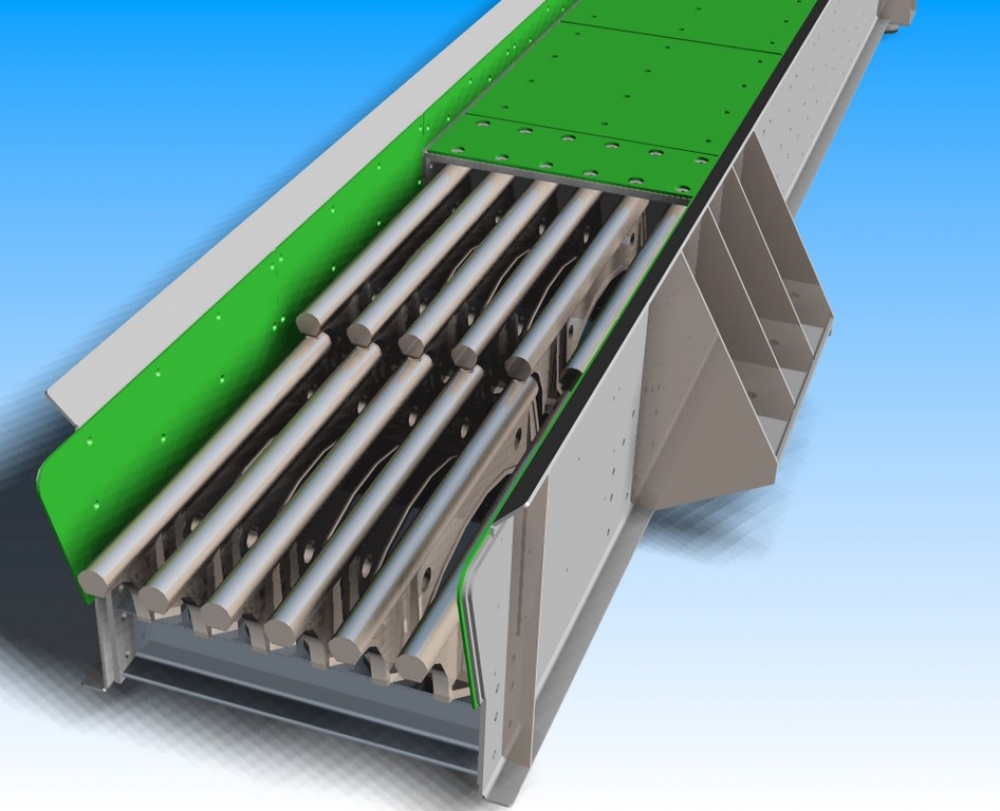

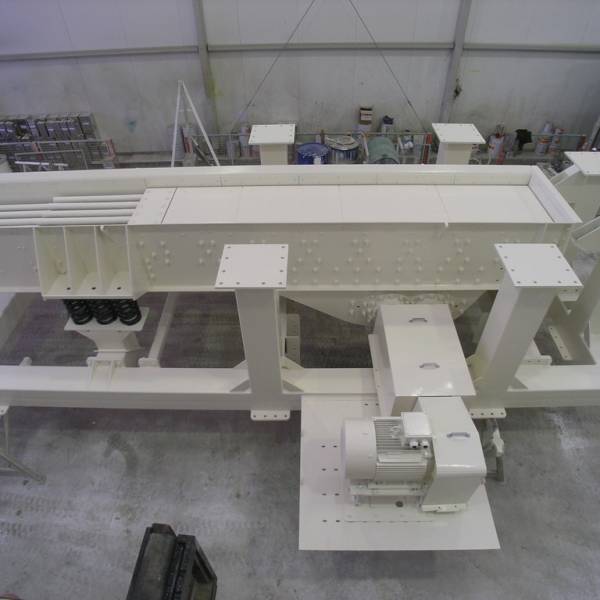

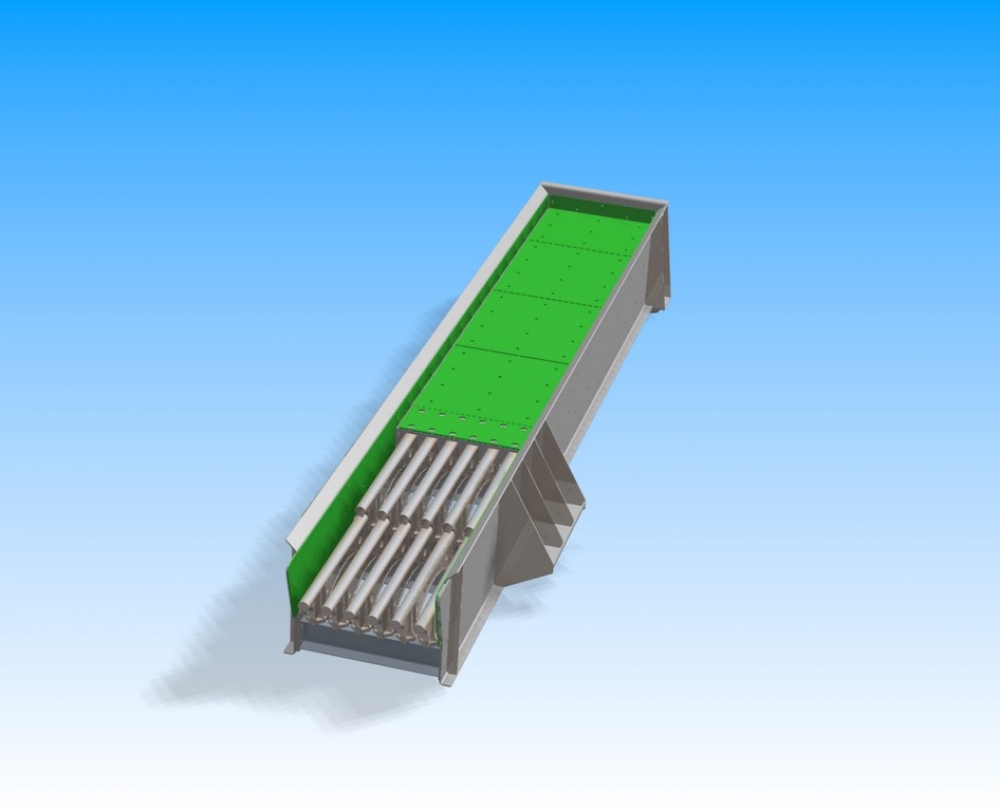

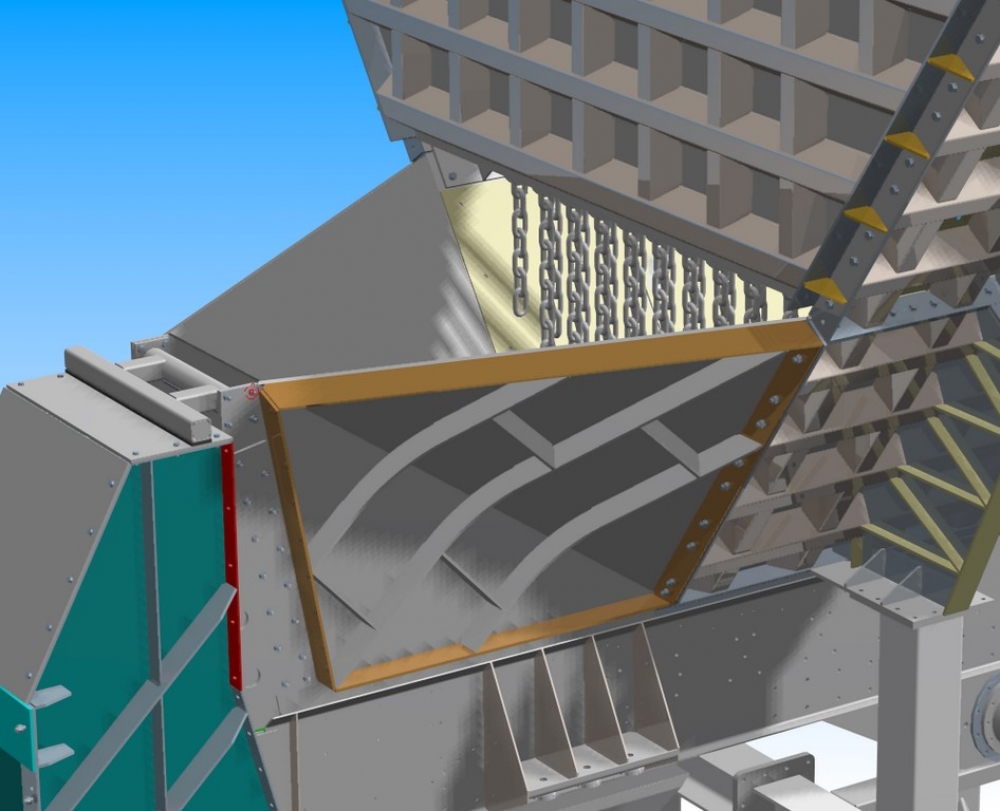

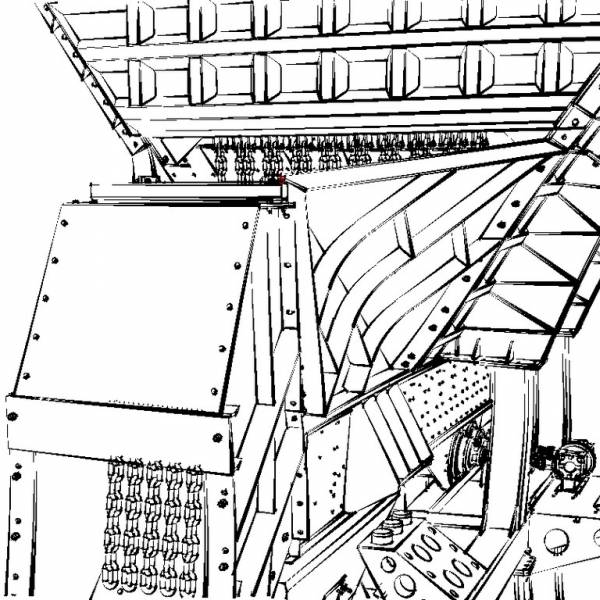

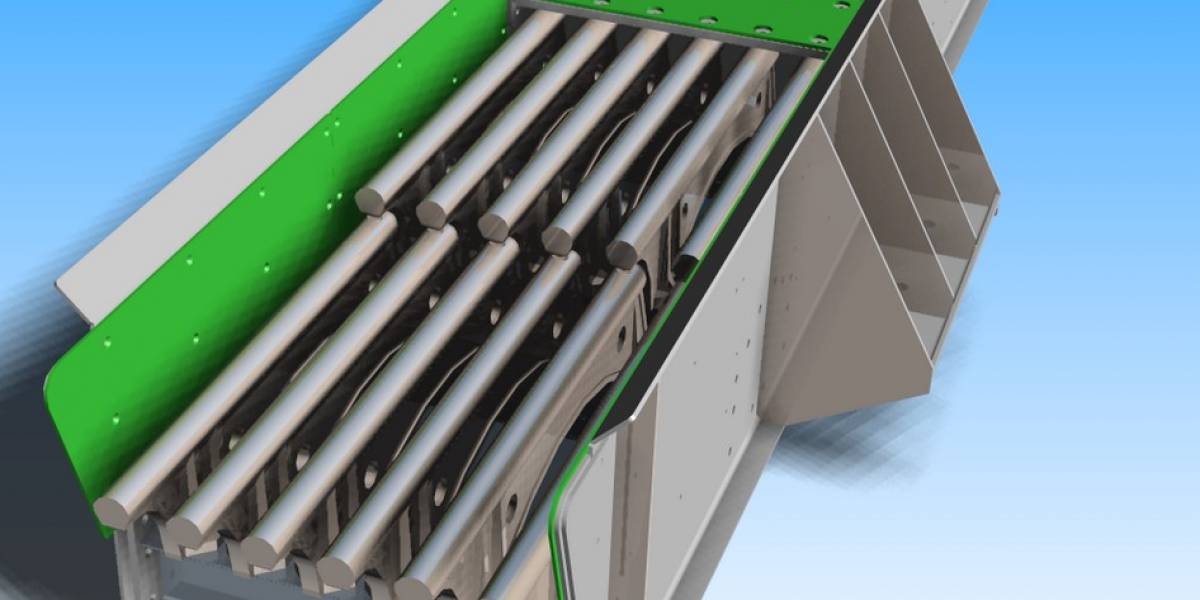

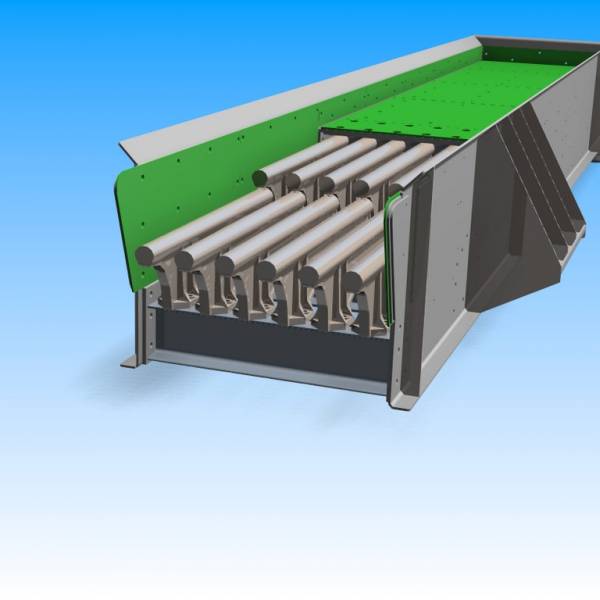

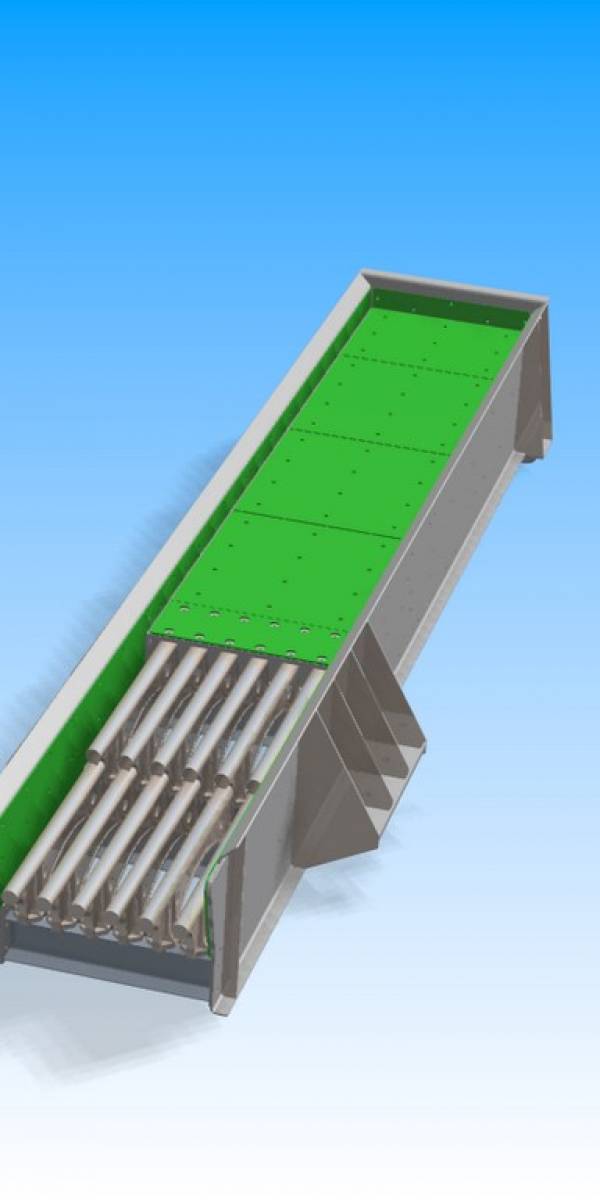

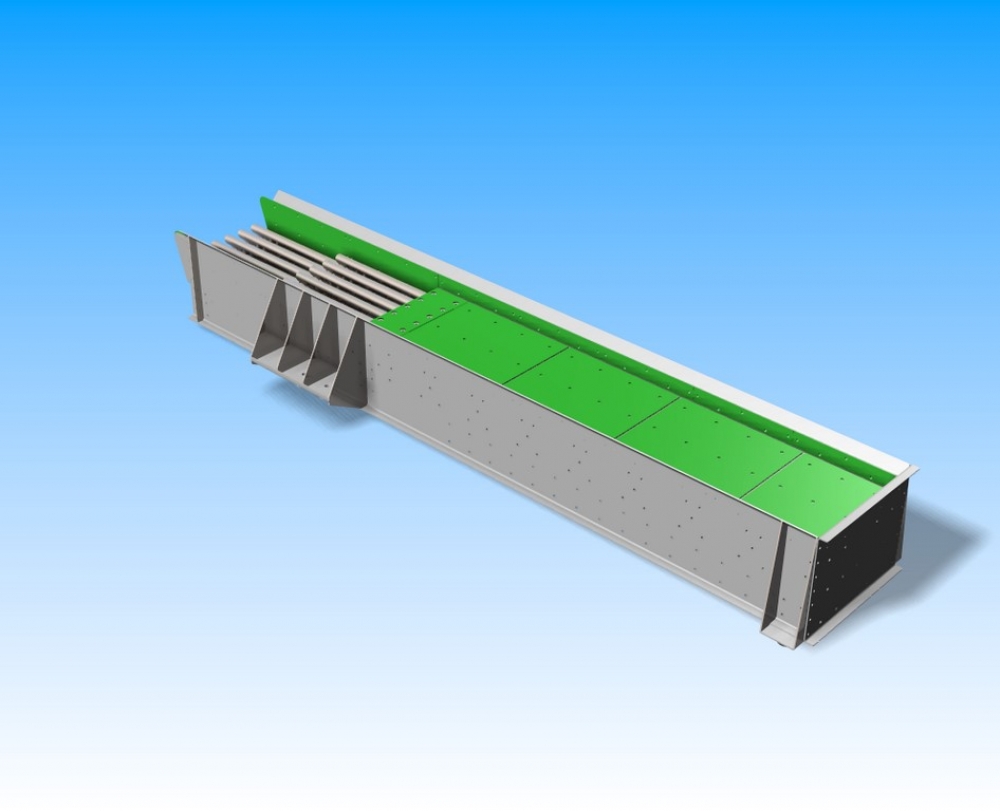

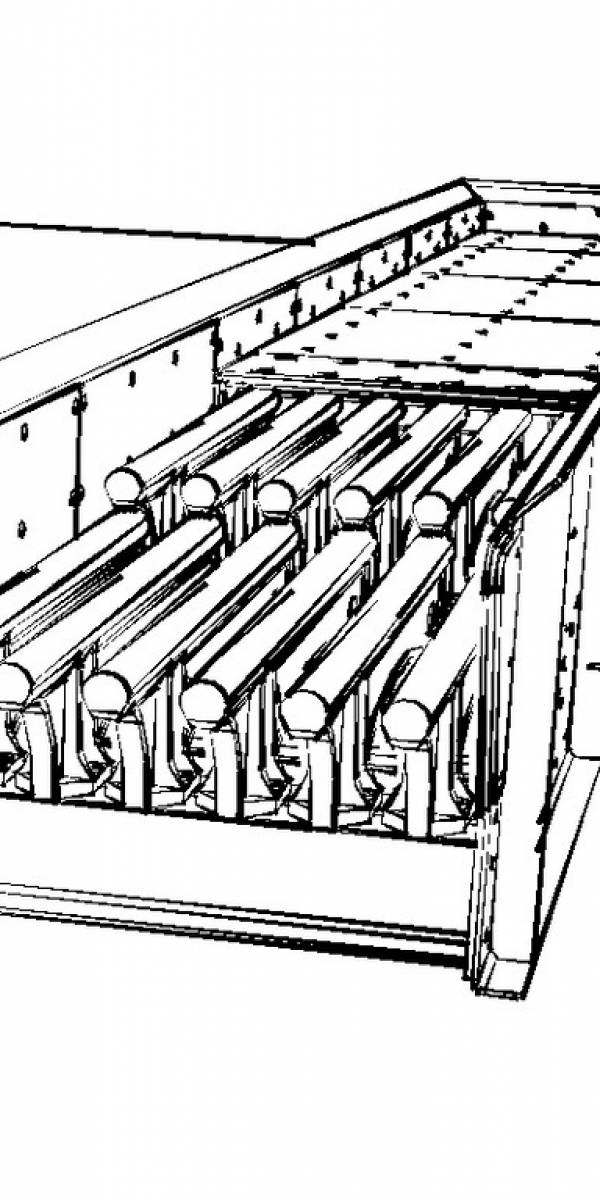

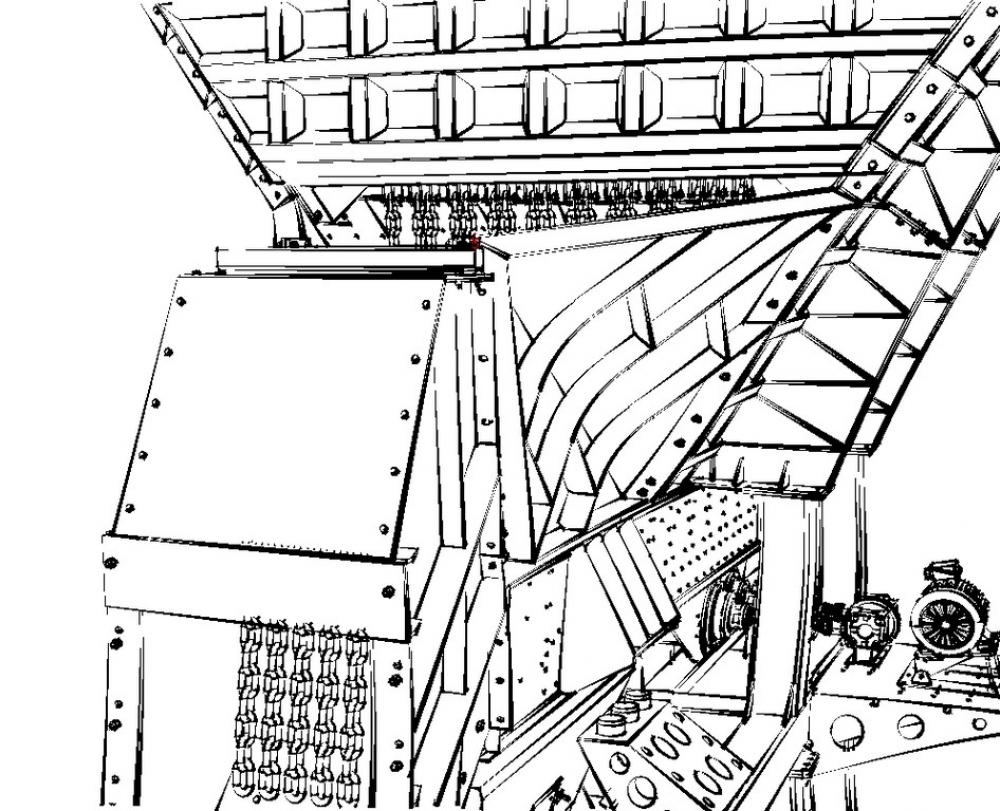

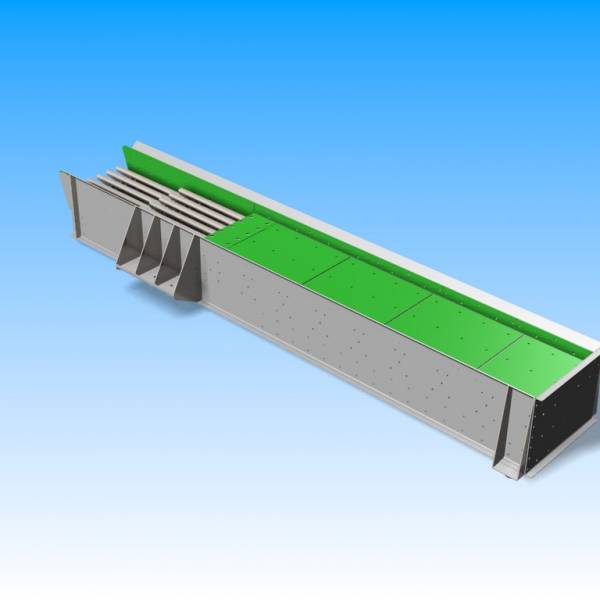

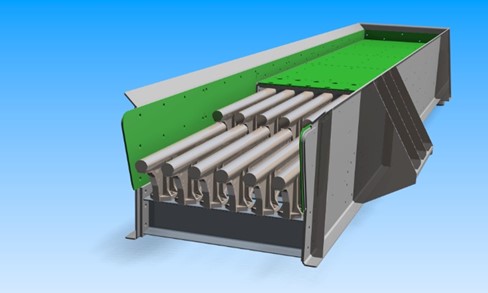

Horizontal level vibrating feeder with build in Grizzly Screen

1-Horizontal level inlet feeder,

2-Inlet of Crusher,

3- Crusher inlet hopper,

4-Vibrating level feeder 900 with grizzly screen,

5- Grizzly screen Feeder outlet,

6-Metallic support pillars

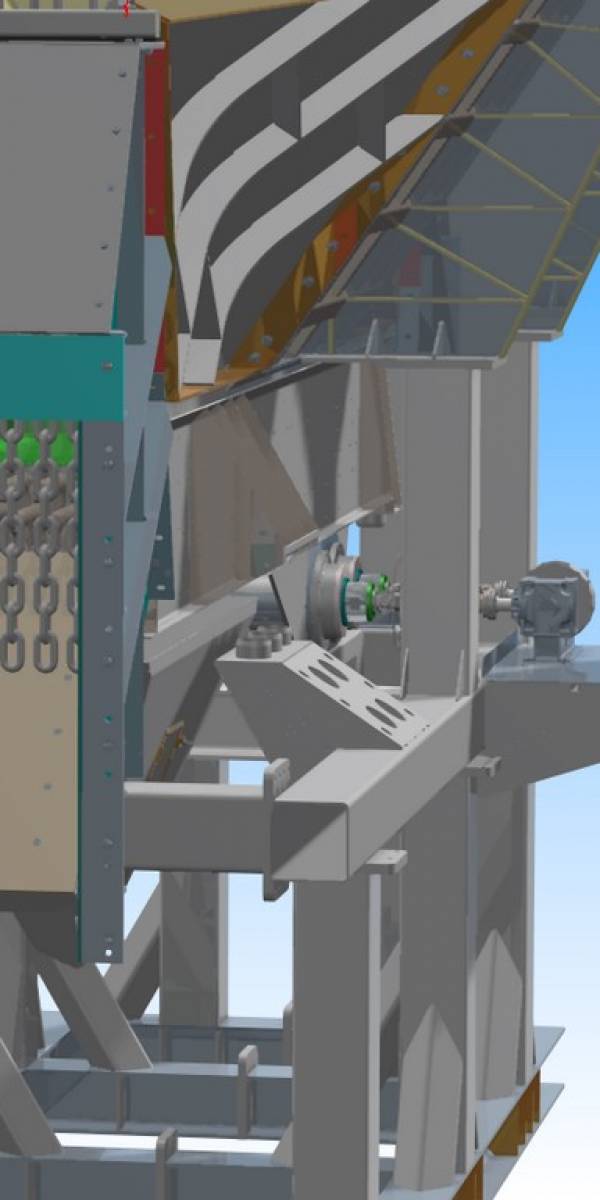

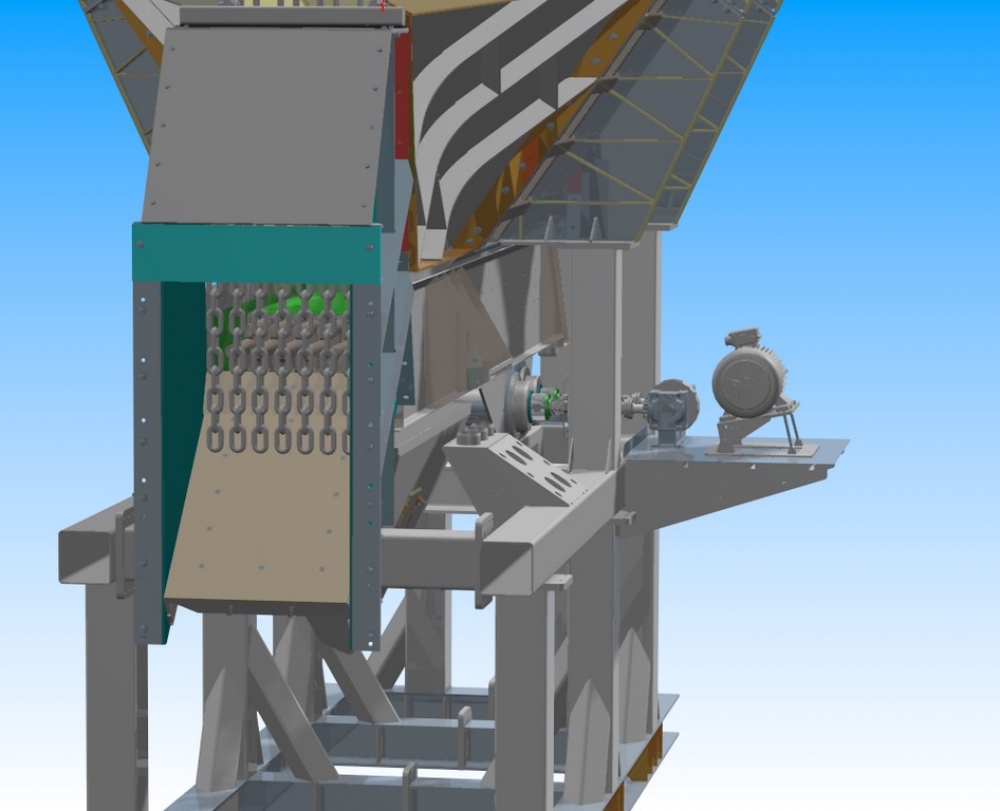

7-Transmission system.

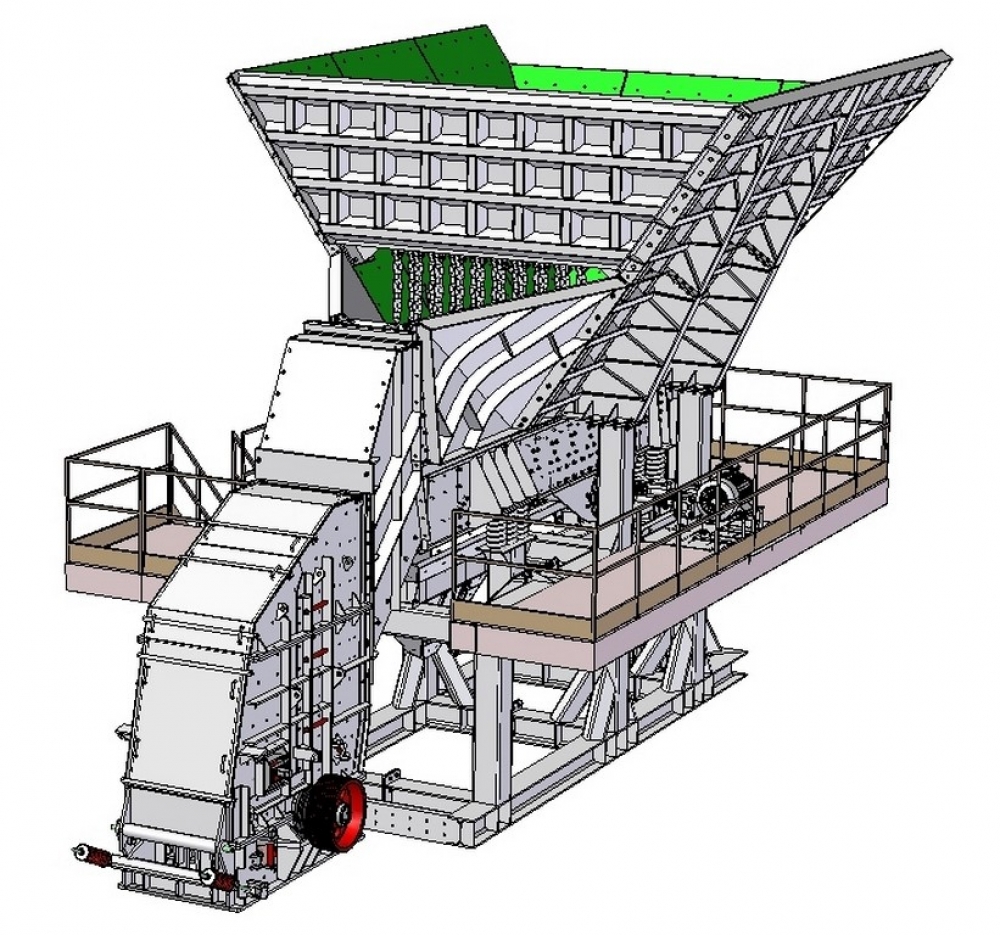

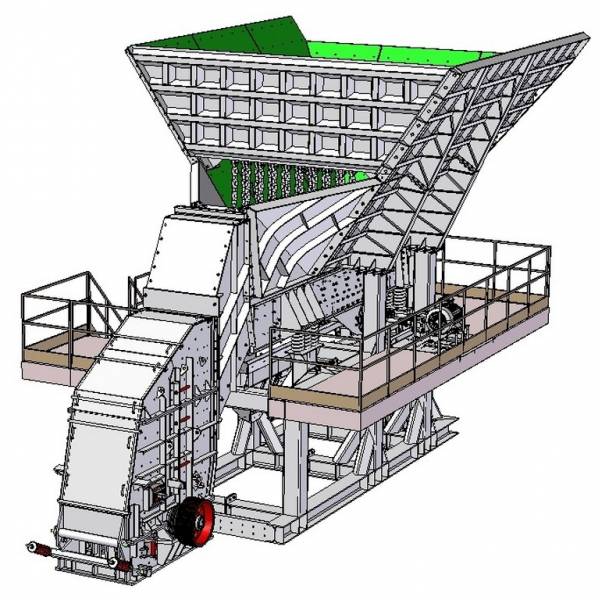

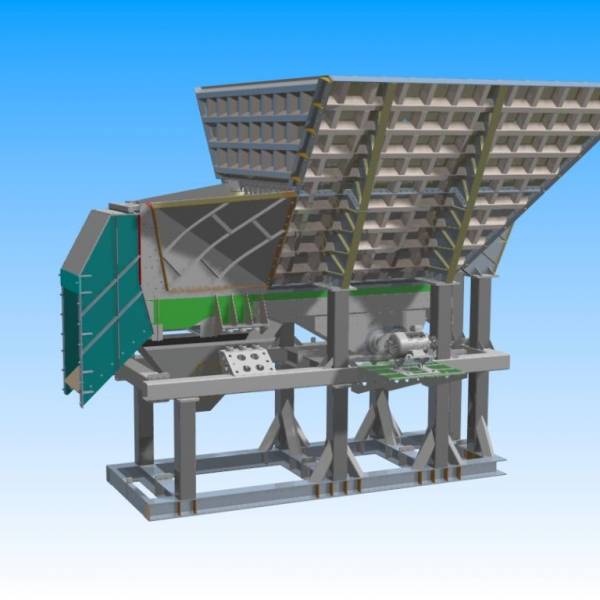

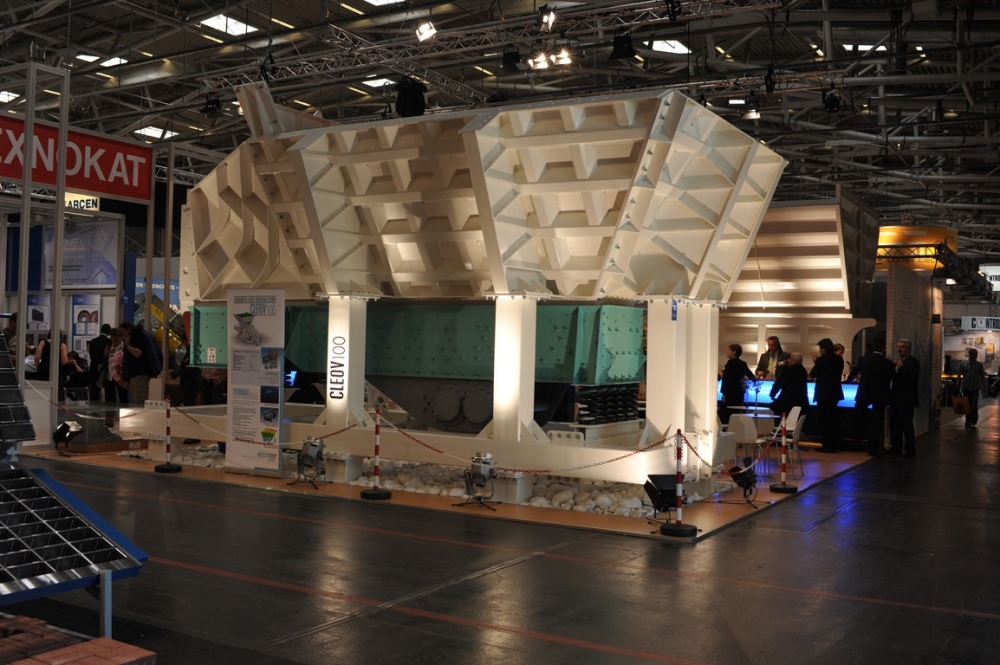

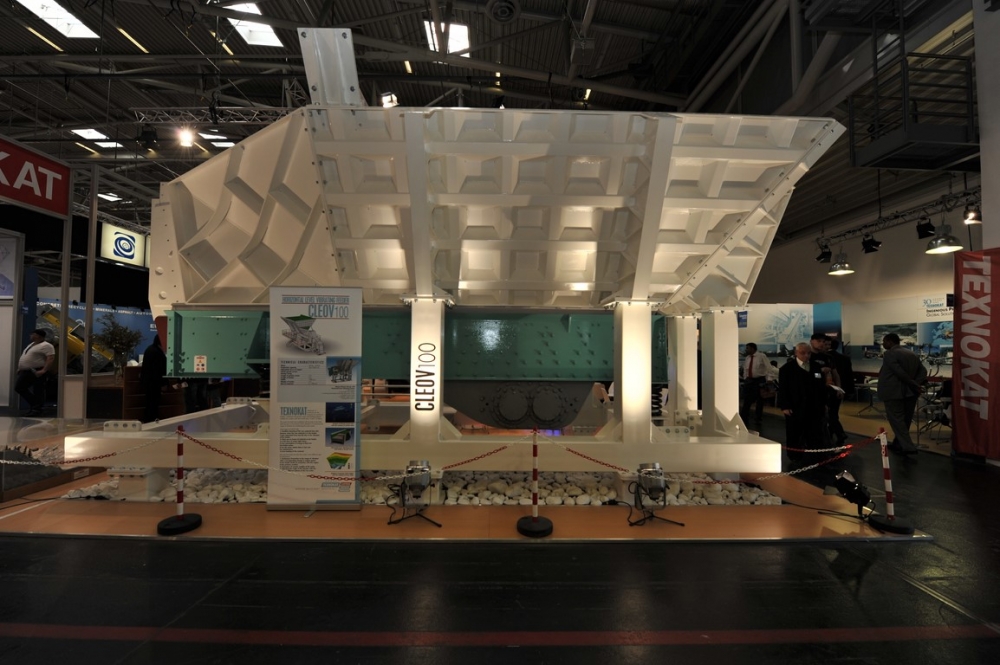

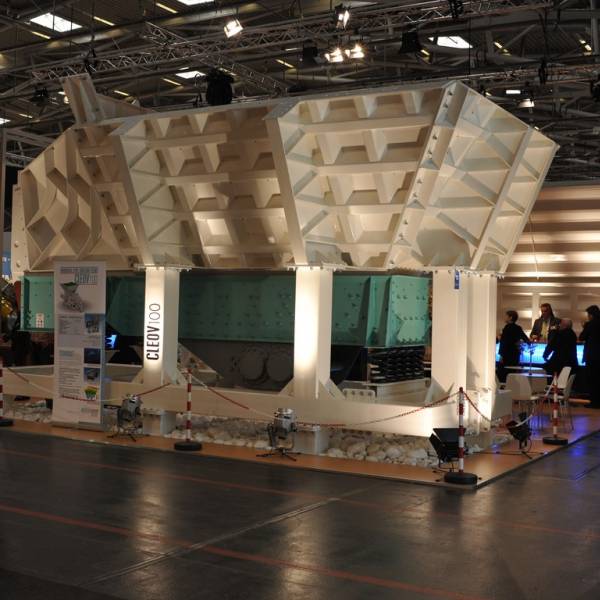

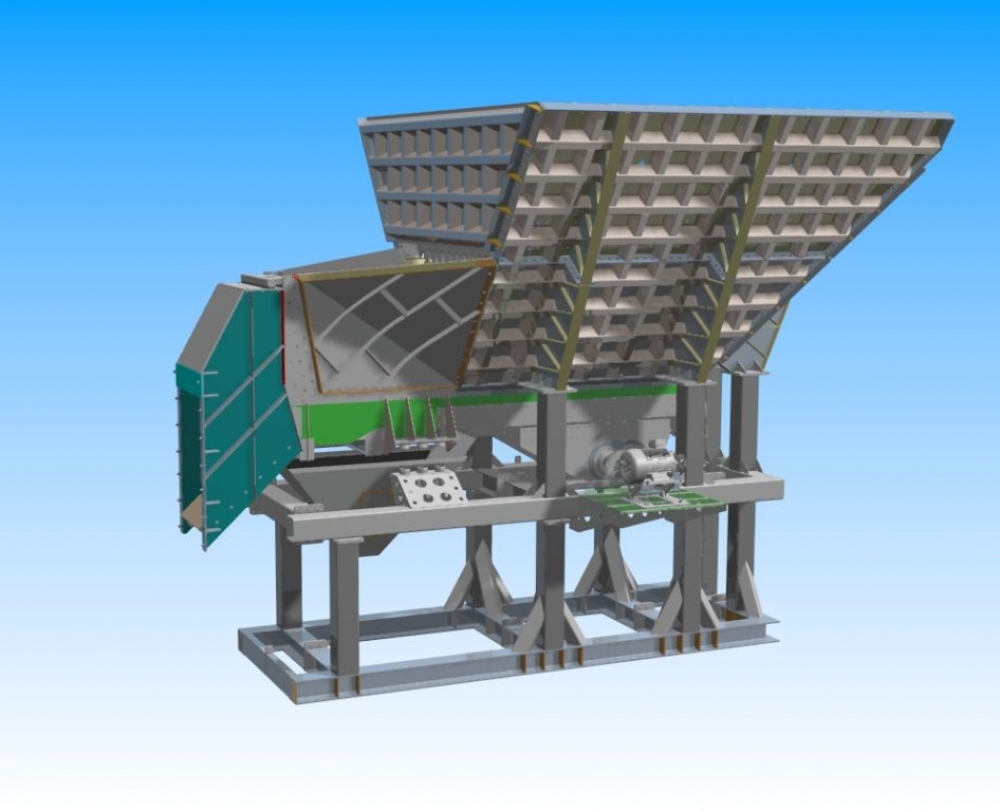

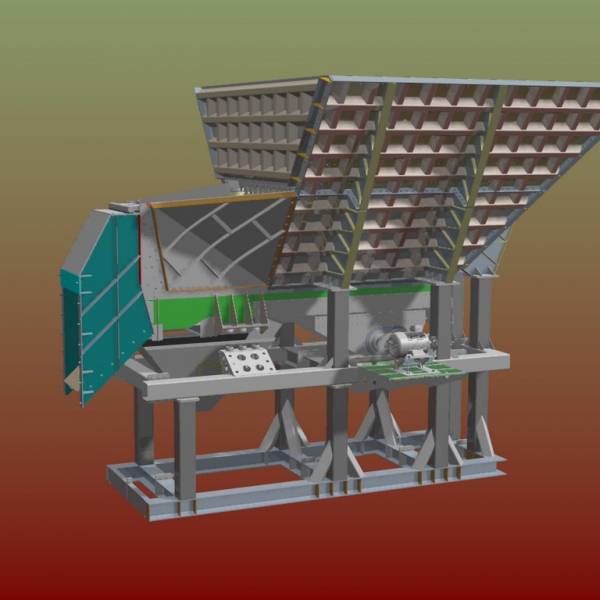

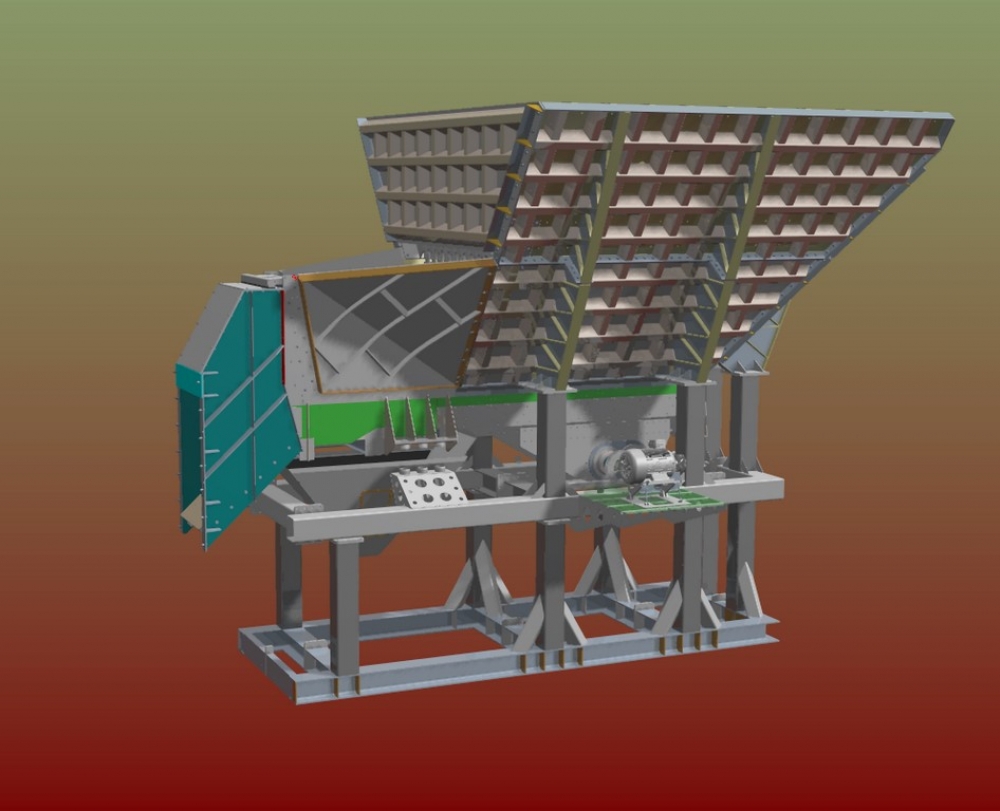

Primary Group Quarry with Horizontal level Vibrating Feeder.

Advantages of Vibrating level feeder / grizzly screen ILIATORAS against all other are the following:

Excellent cleaning of the raw material from dirt, because when the raw material is in the feeder it gets separated from any dirt due to the vibration of the feeder.
There are no losses of material as the feeder is in the form of watertight frame.
Low consumption of energy as there are less friction areas.
For the same reason there is less cost for
Even feeding of the material

Not only the feeder but also the crusher have different type of adjustments.

Continuous fluctuation in the range of vibration with a corresponding change in engine speed of the feeder (hook on connection with the engine of the primary crusher).
Fluctuation of counterweights of the axles.
Adjusting the angle of the vibrator with the setting of different phases of the two axles.

This is one more product which features all the positive character of Group ΤΕΧΝΟΚΑΤ
