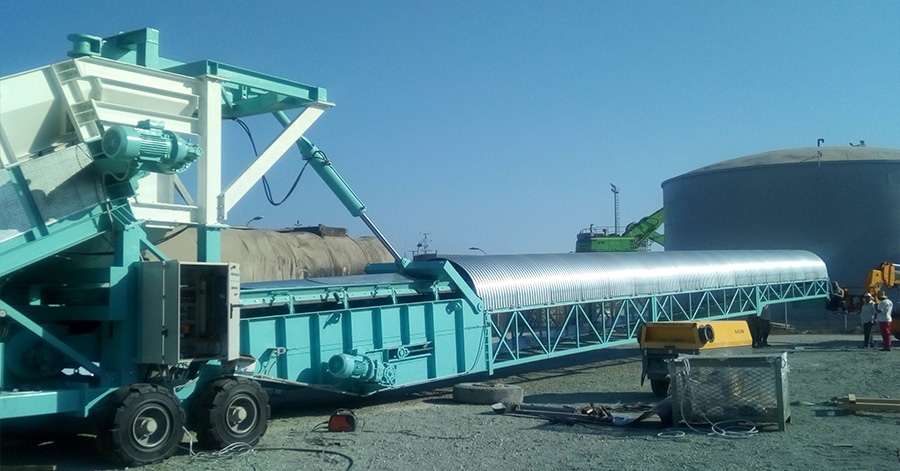

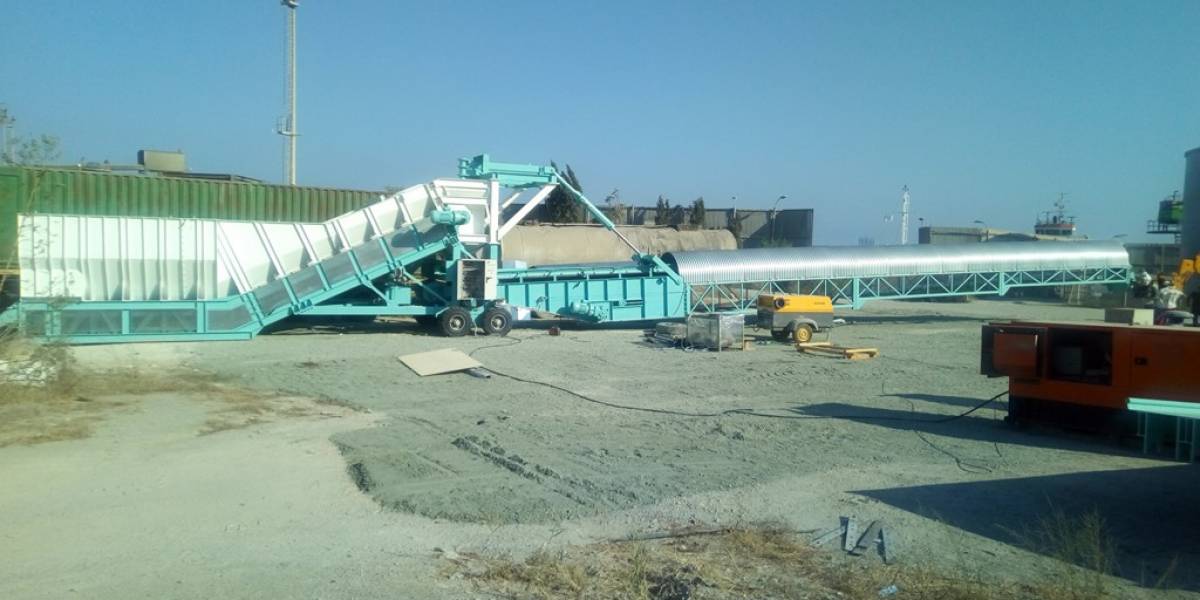

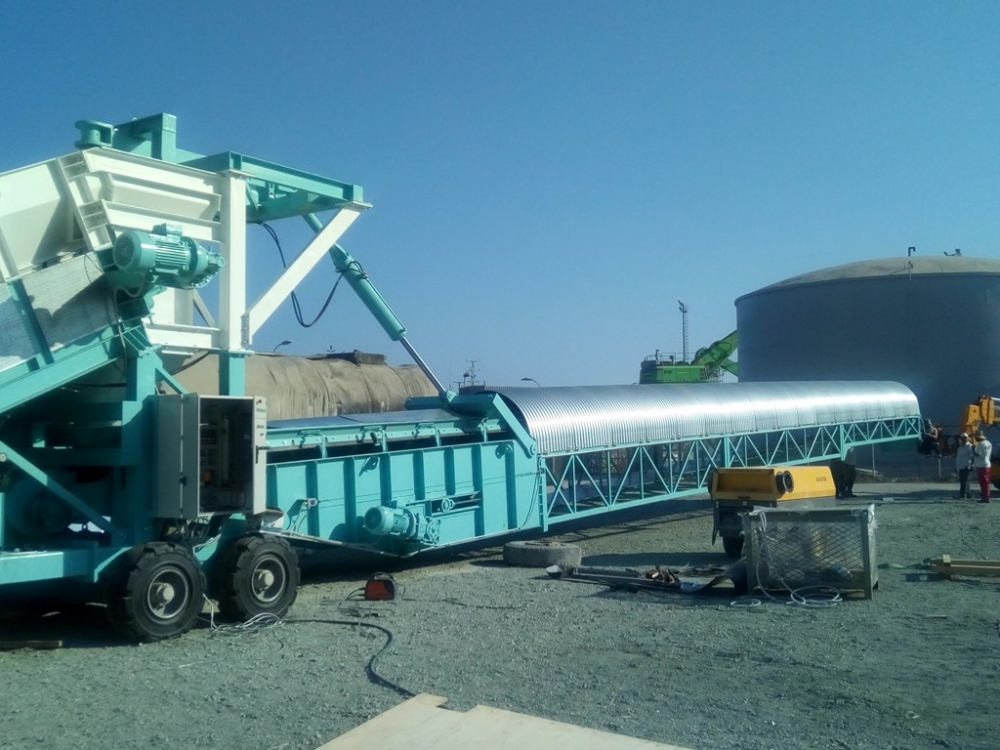

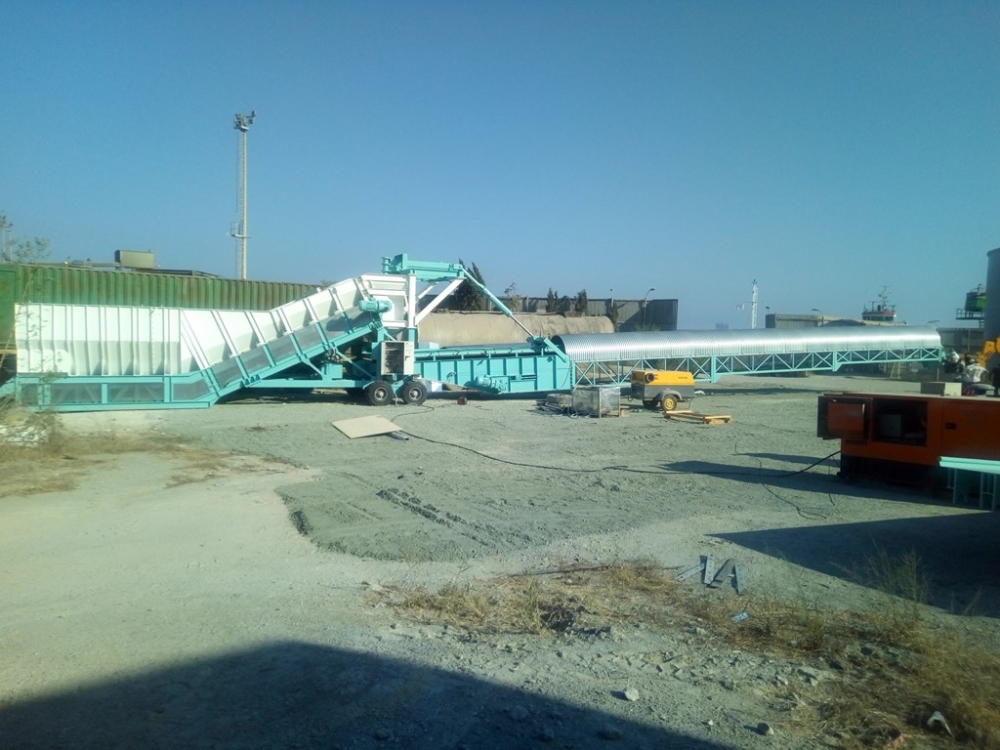

Our transportable conveyor system HERCULES is a new idea for the satisfaction of some special needs. Easy to load ship decks and perfect where a relocatable piling requirement exists into a construction site, mining or quarry.

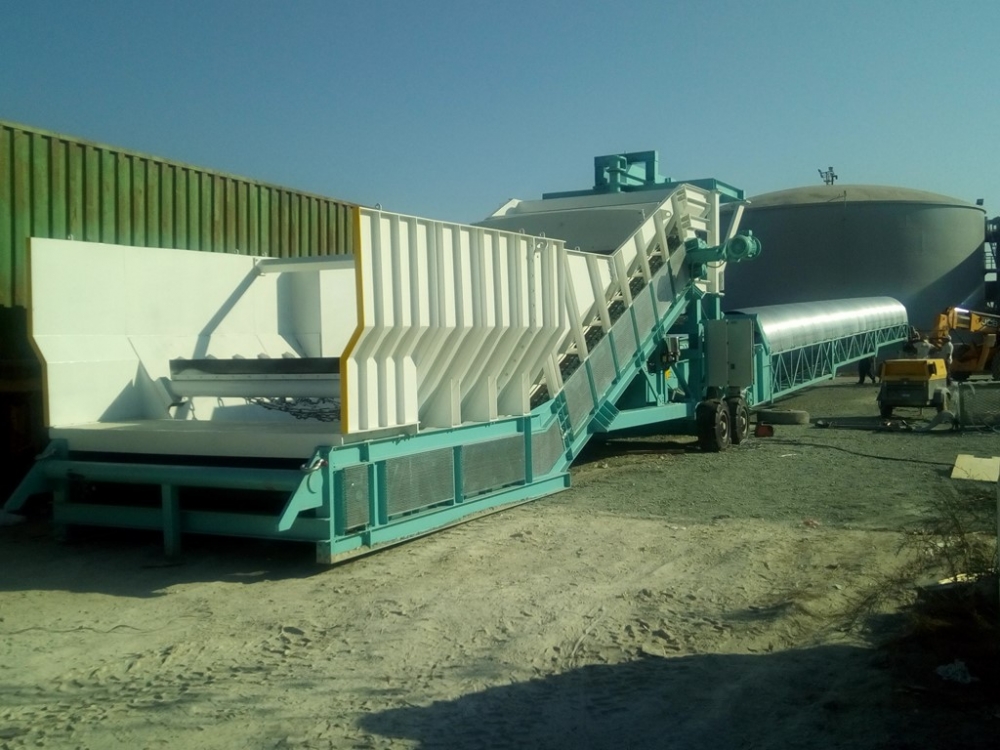

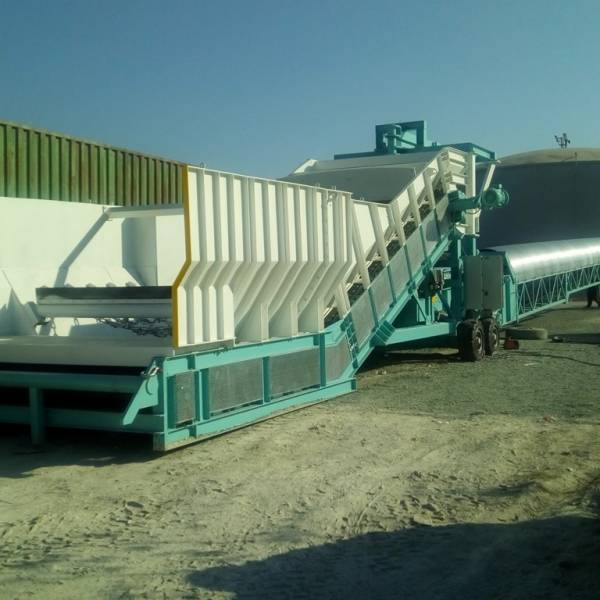

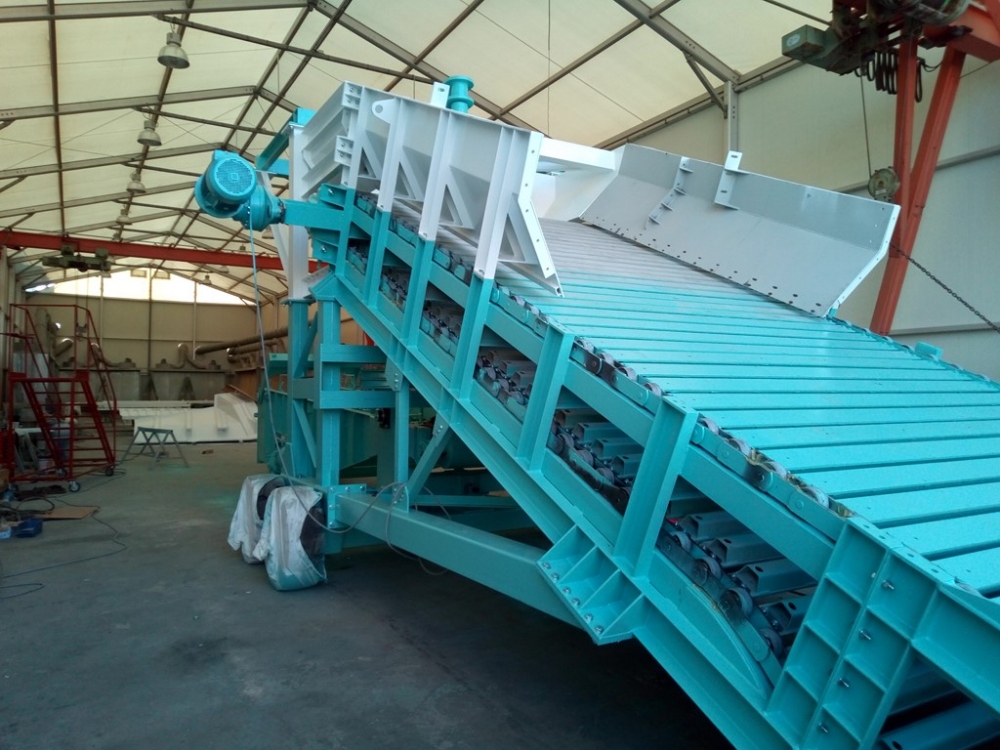

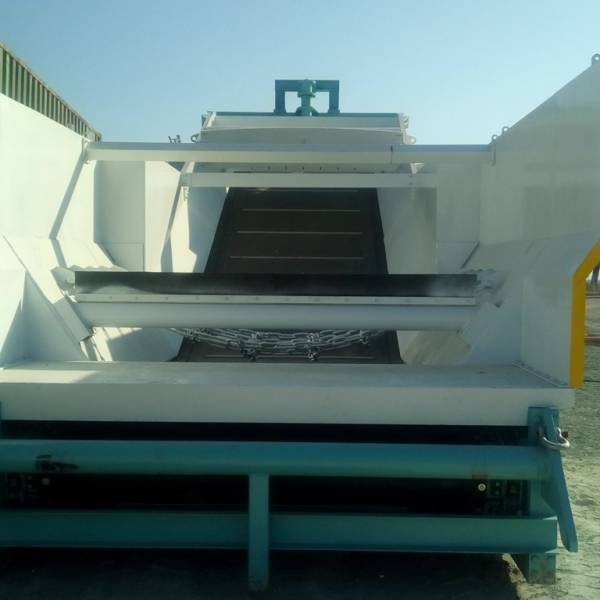

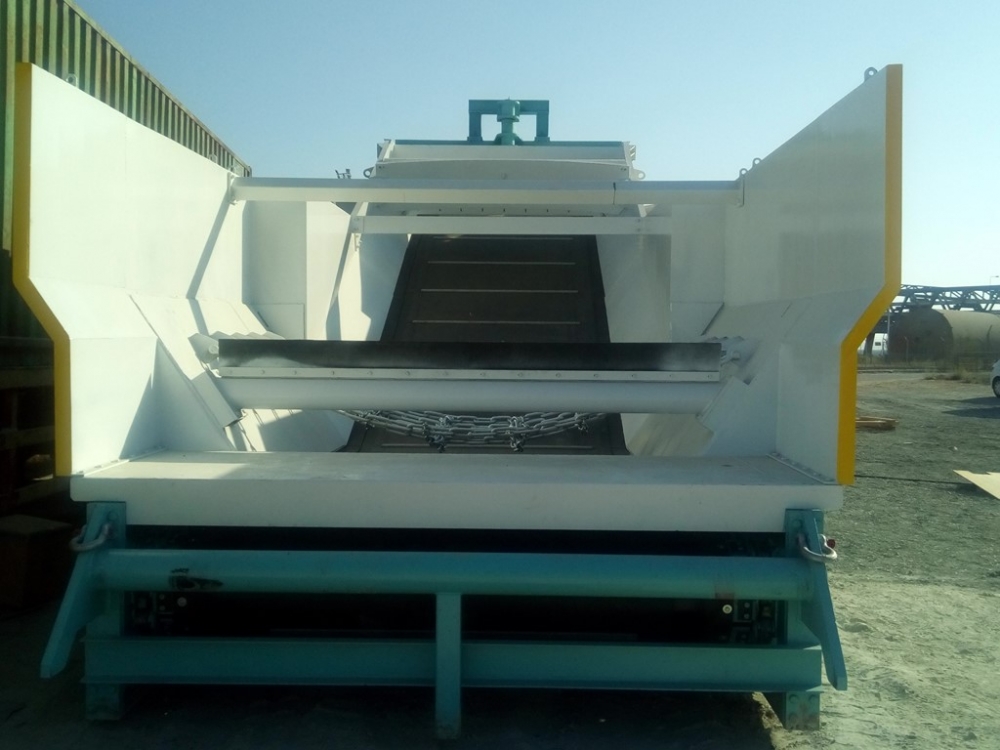

HERCULES can be loaded with loader or straight with tipper truck. Loading capacity starts from 400 ton/h till 700 ton/h.

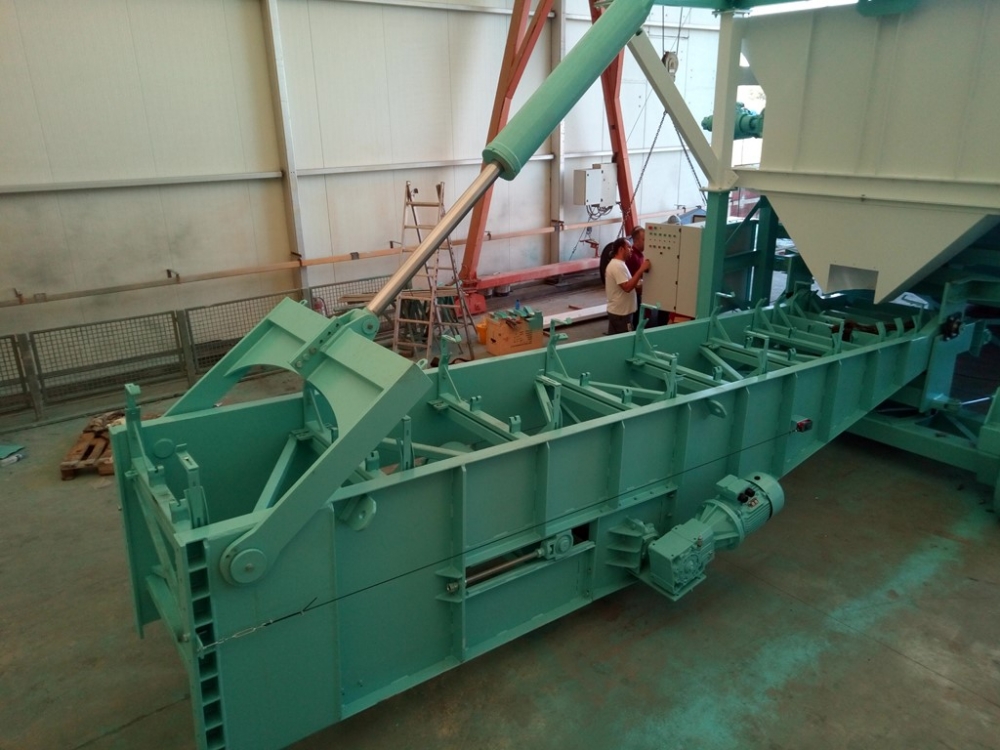

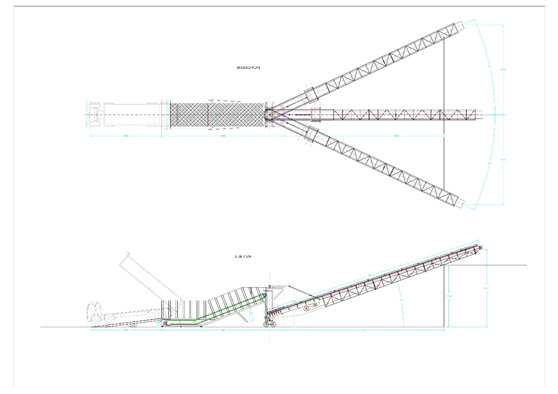

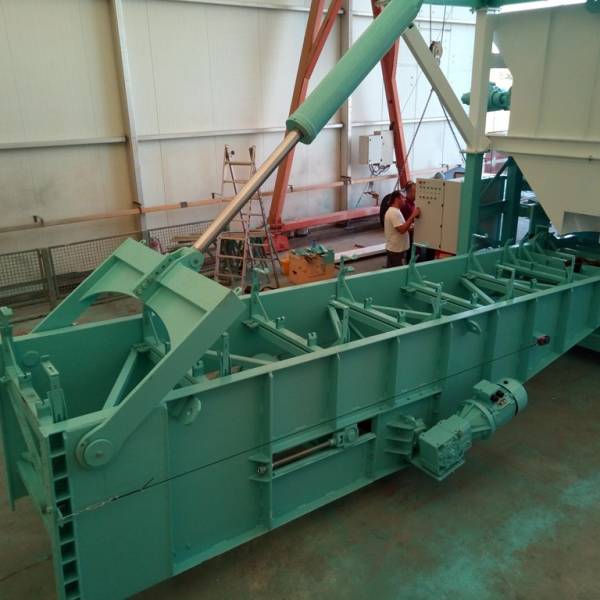

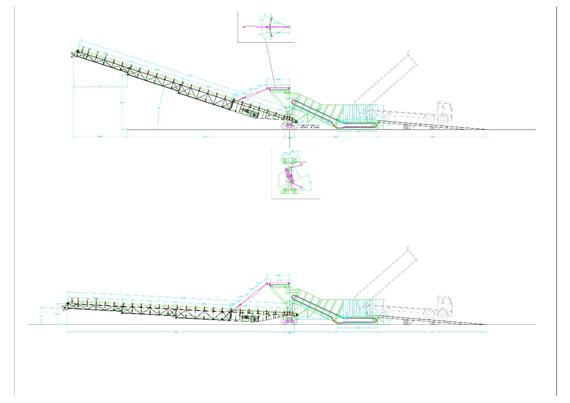

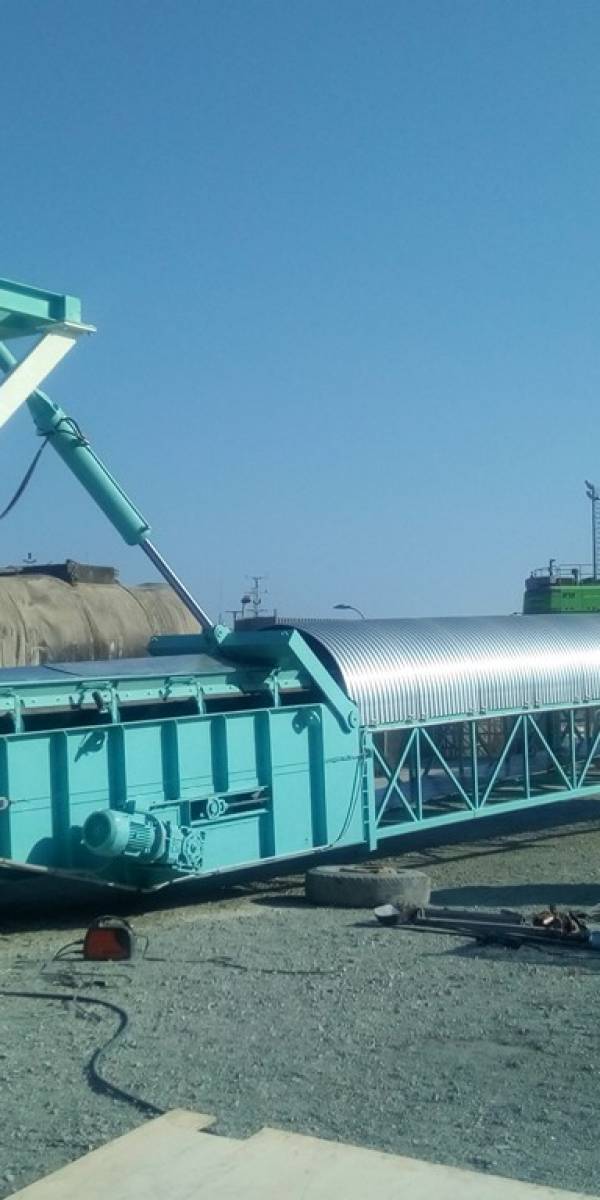

The conveyor belt moves vertical and horizontal. The movement managed with hydraulic pistons. Conveyor belt moves hydraulically from 0 level 30 degrees minimum to 180 degrees high maximum. The belt can rotate left and right 250 degrees at any high level.
HERCULES RANGE
|
MODEL |
LOADING |
CAPACITY |
BELT WIDTH |
BELT LENGHT |
RAMP |
|
HERCULES 400 |
LOADER |
400T/H |
800mm |
30 METERS |
NO |
|
HERCULES 550 |
LOADER |
550T/H |
1.000mm |
26 METERS |
NO |
|
HERCULES 700 |
LOADER |
700T/H |
1.200mm |
25 METERS |
NO |
|
HERCULES MASTER 400 |
TRUCK |
400T/H |
800mm |
30 METERS |
YES |
|
HERCULES MASTER 550 |
TRUCK |
550T/H |
1.000mm |
26 METERS |
YES |
|
HERCULES MASTER 700 |
TRUCK |
700T/H |
1.200mm |
25 METERS |
YES |
