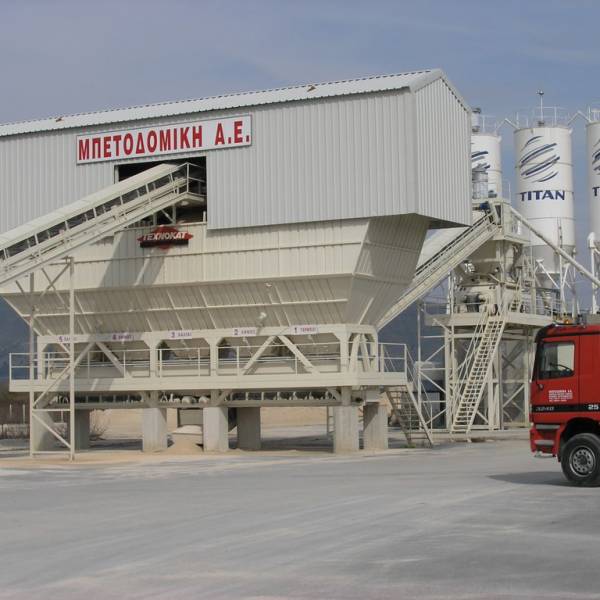

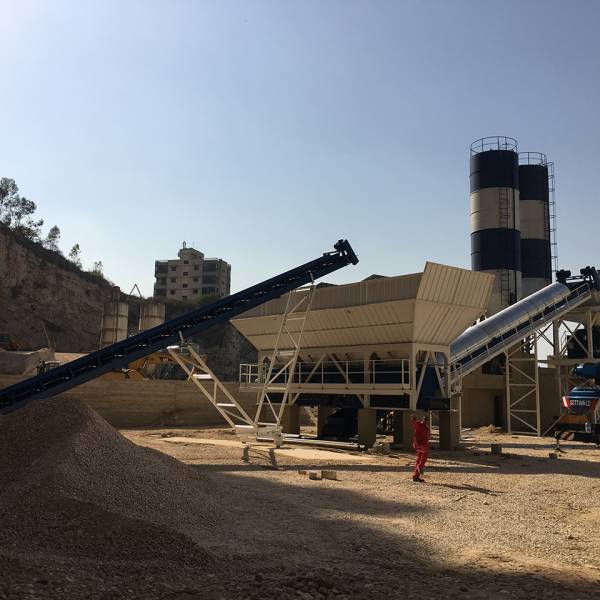

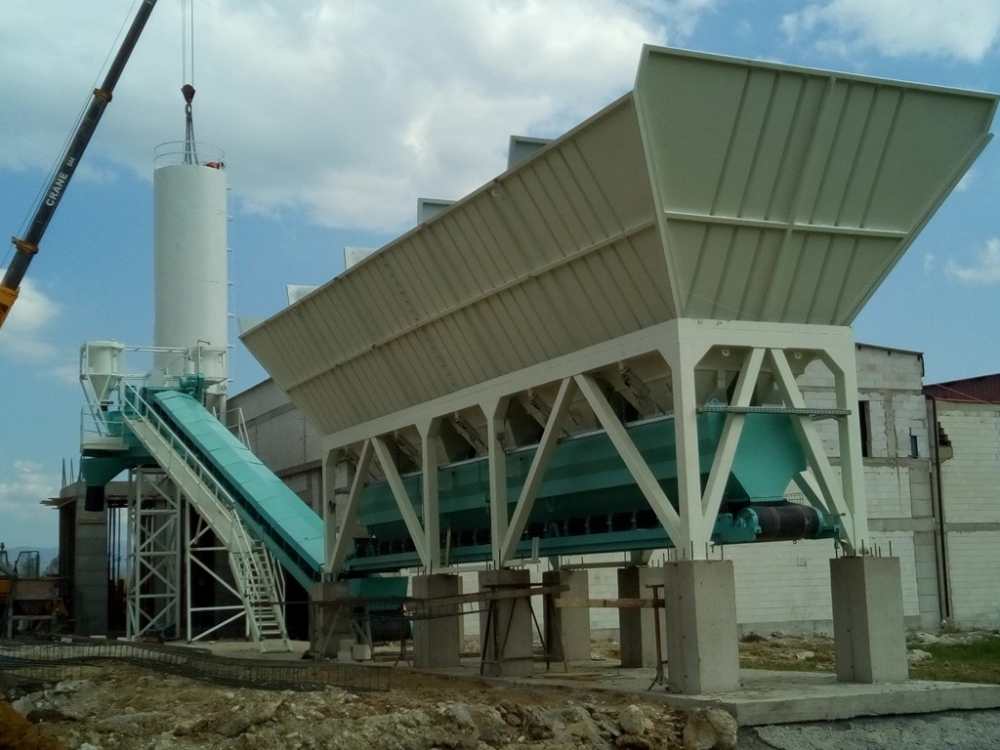

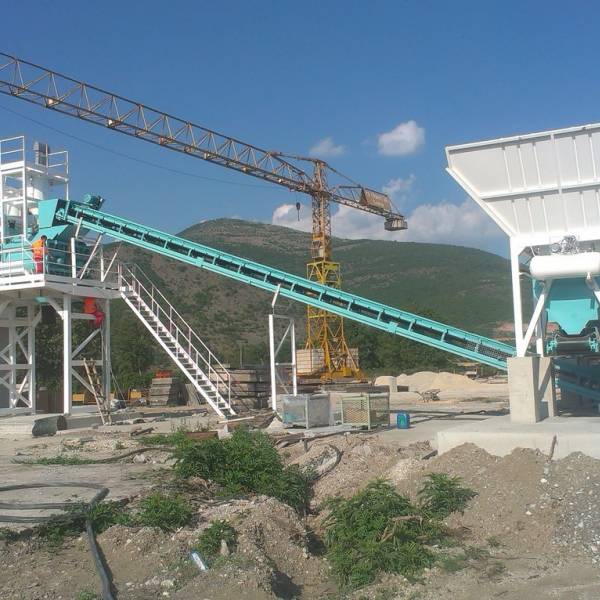

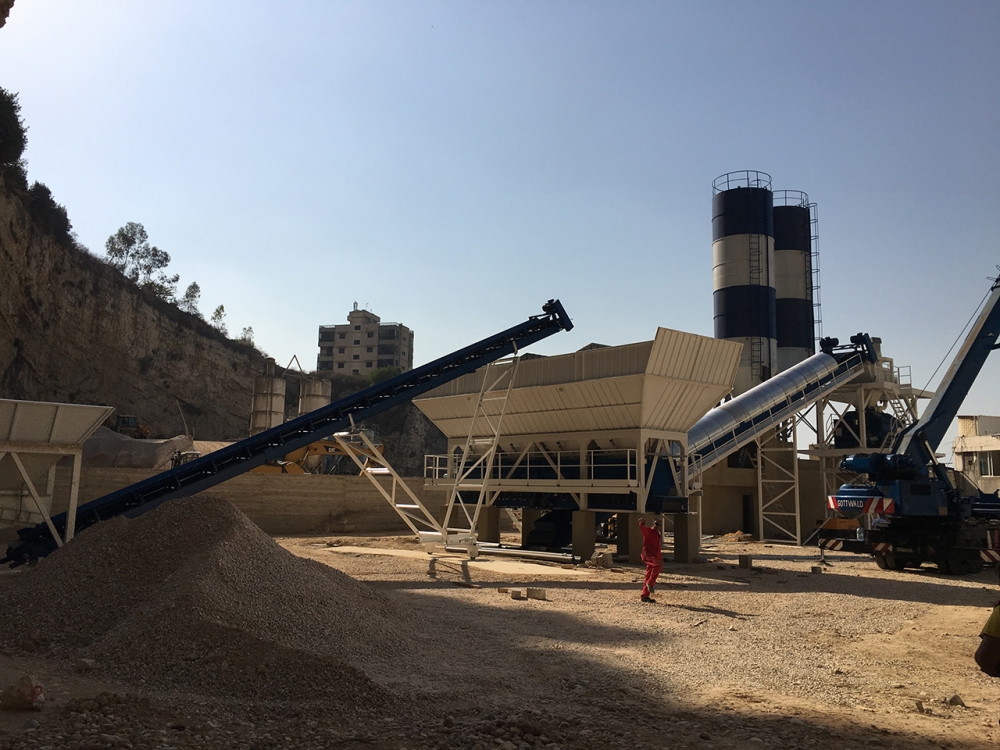

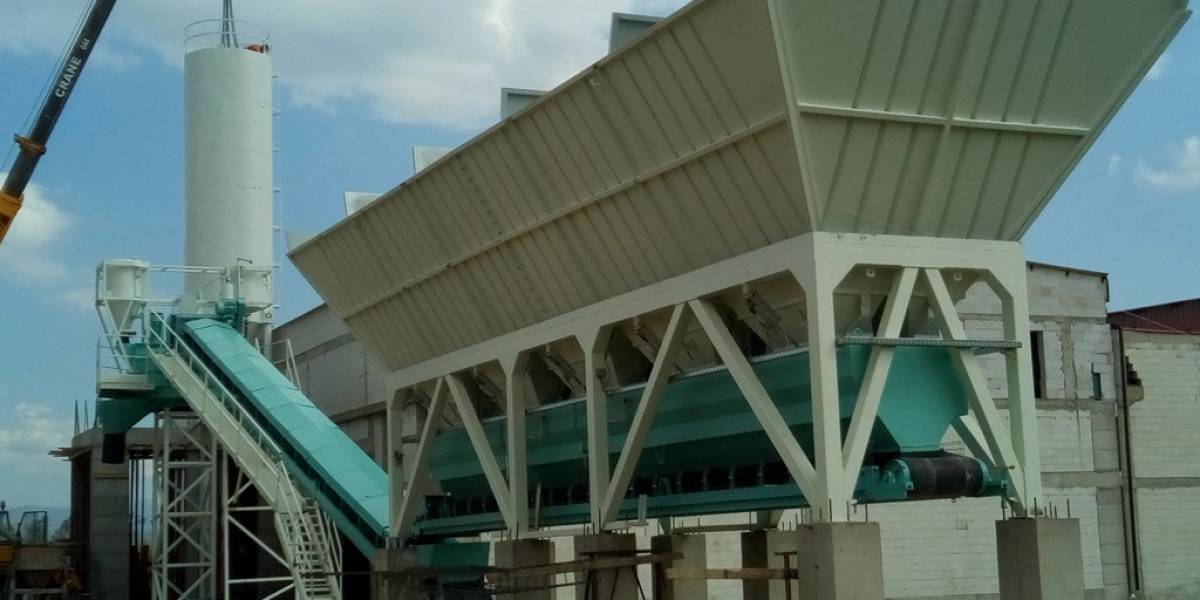

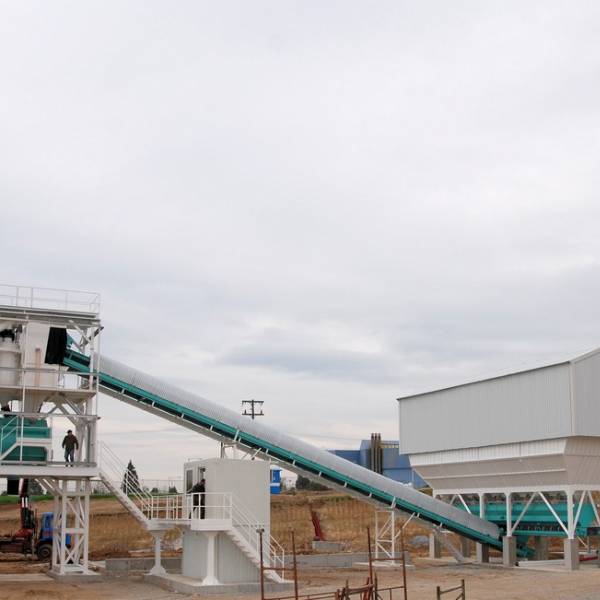

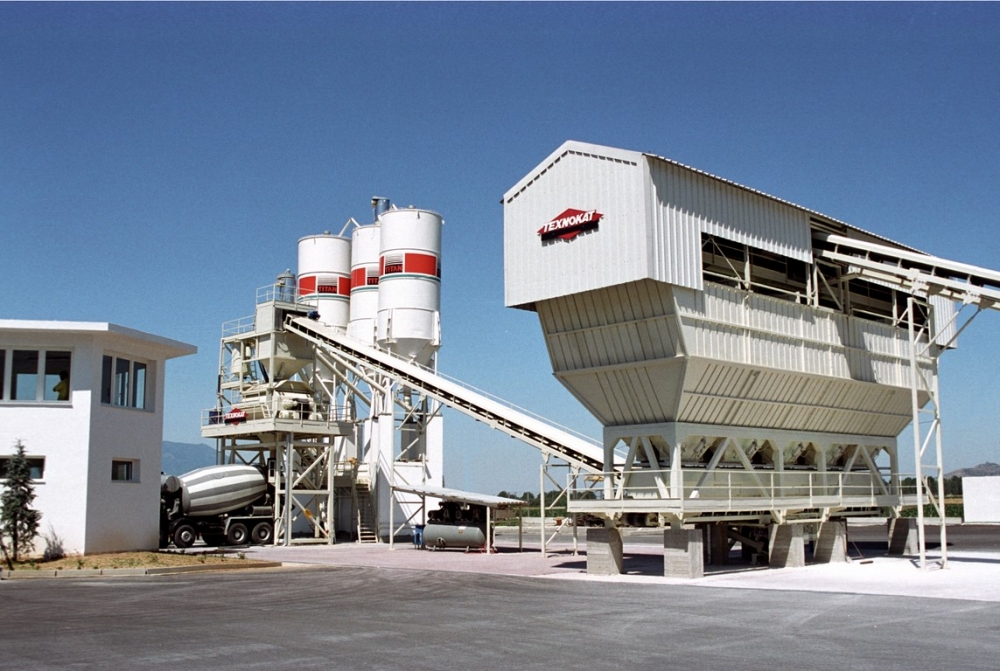

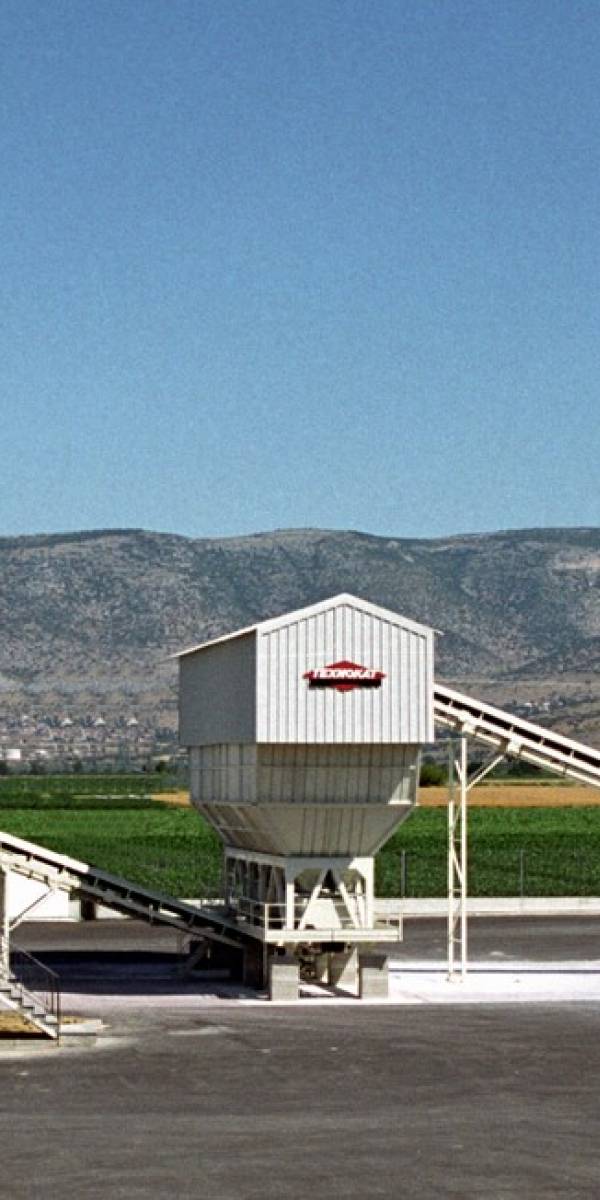

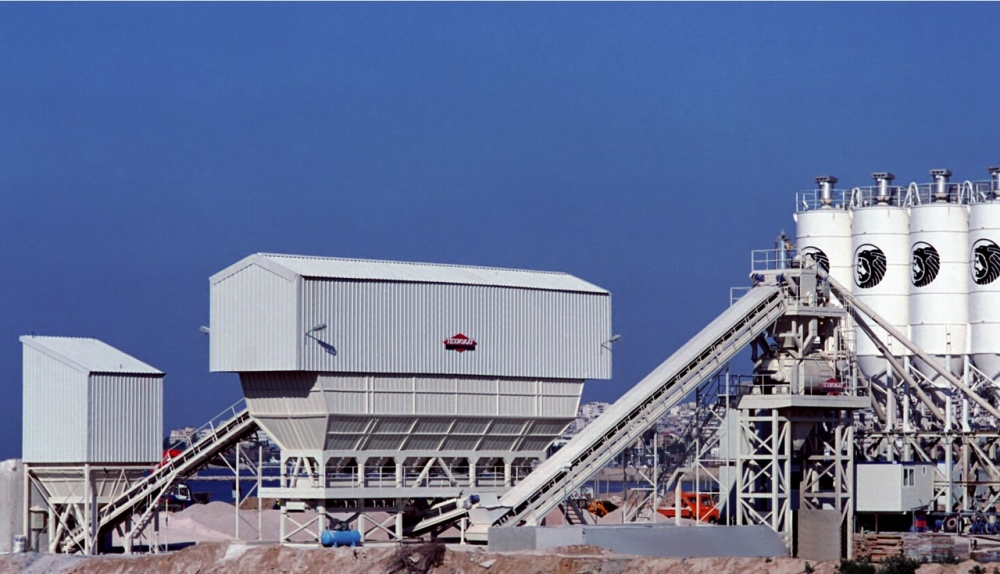

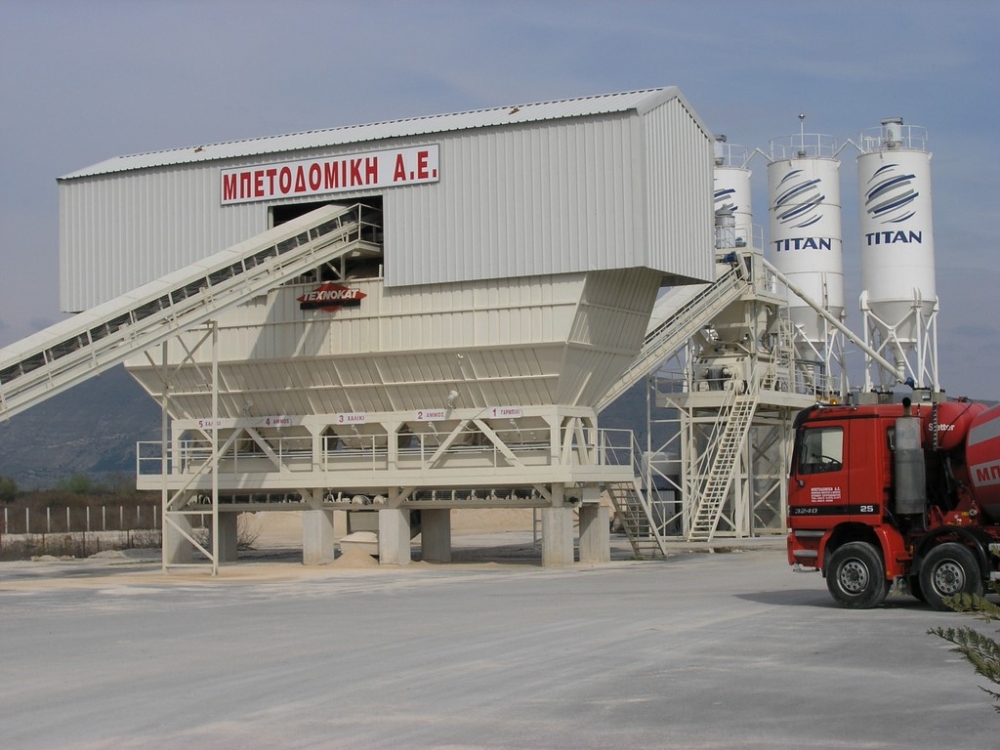

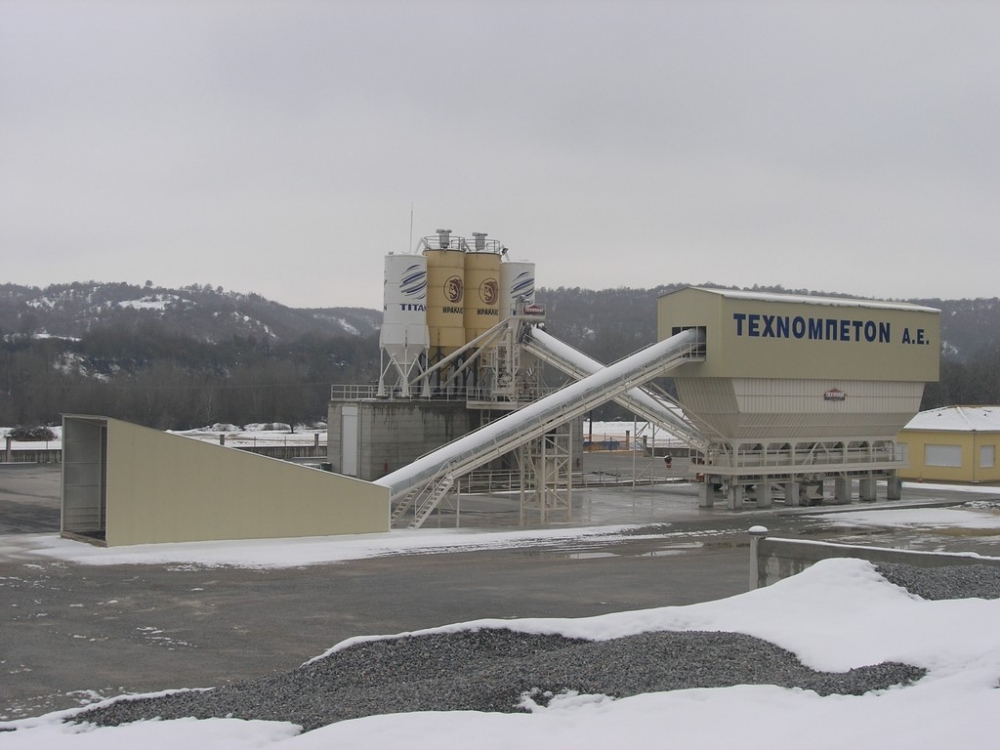

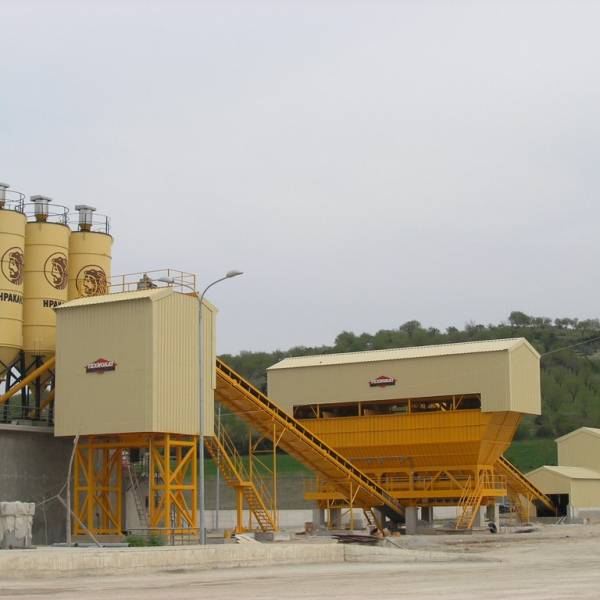

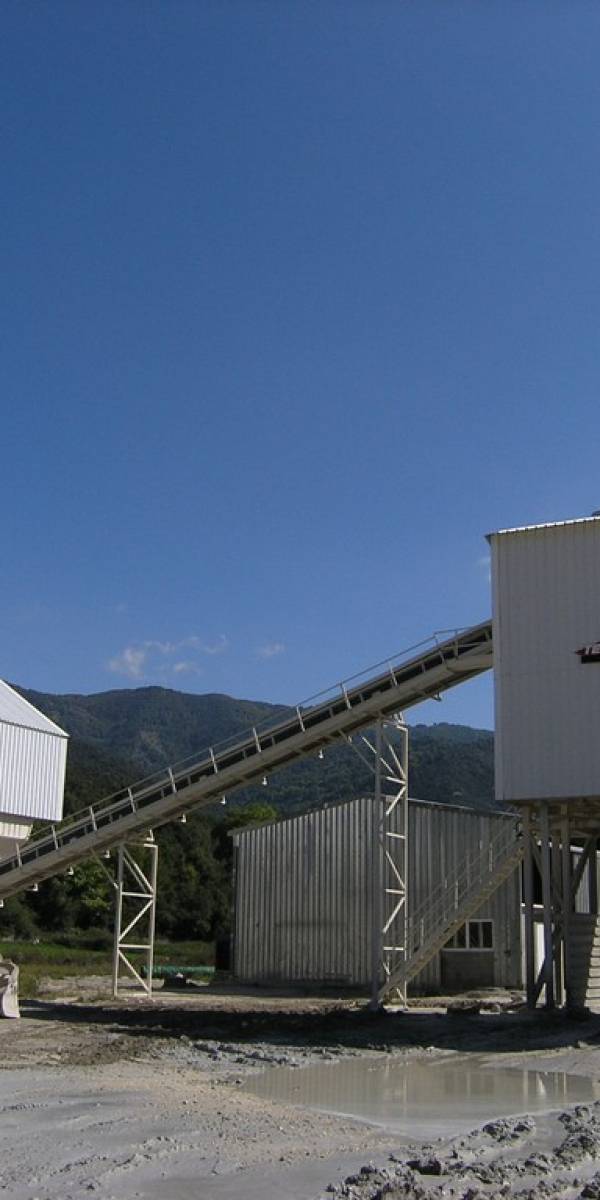

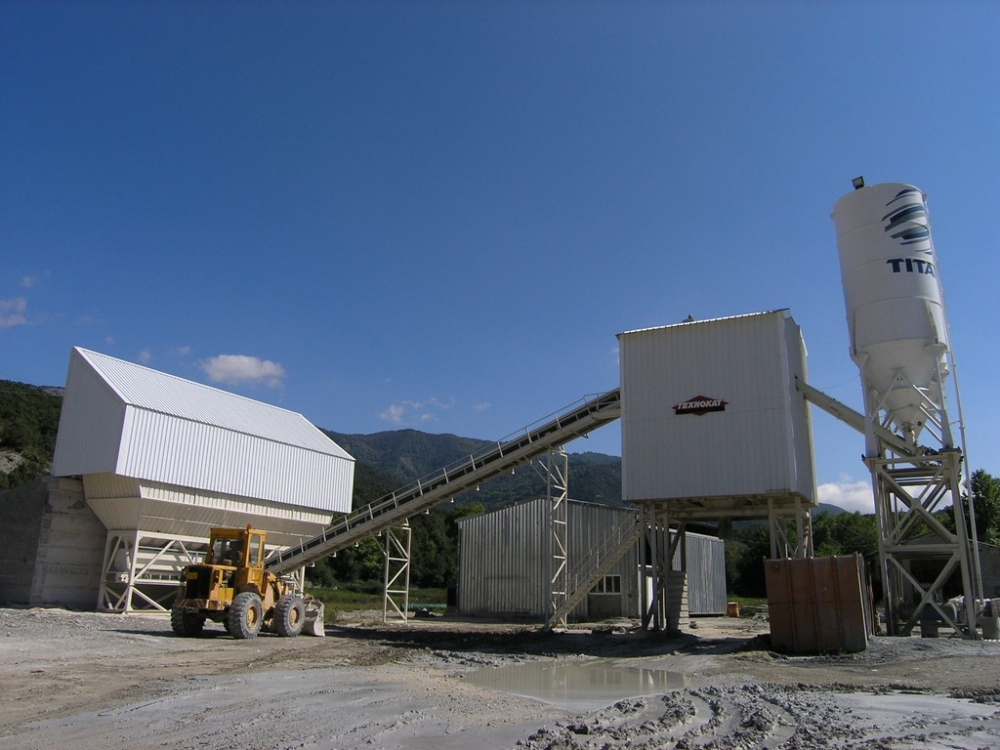

Alexander 80-200

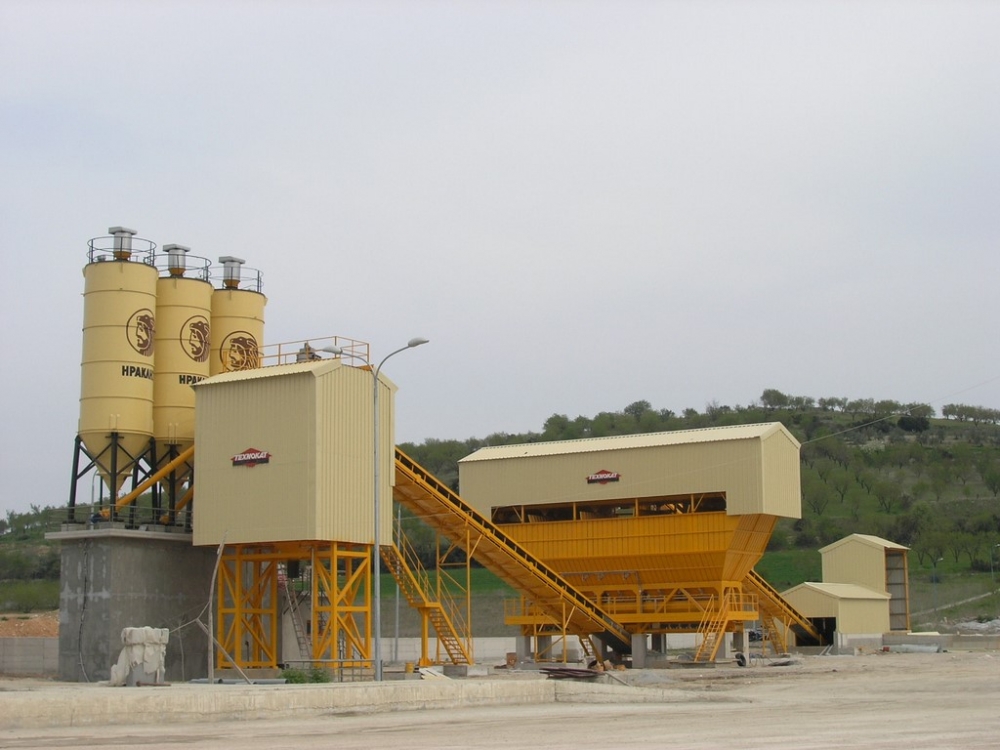

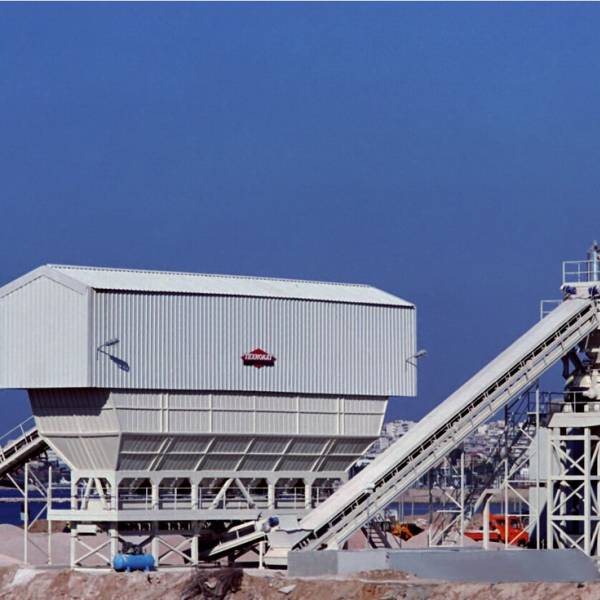

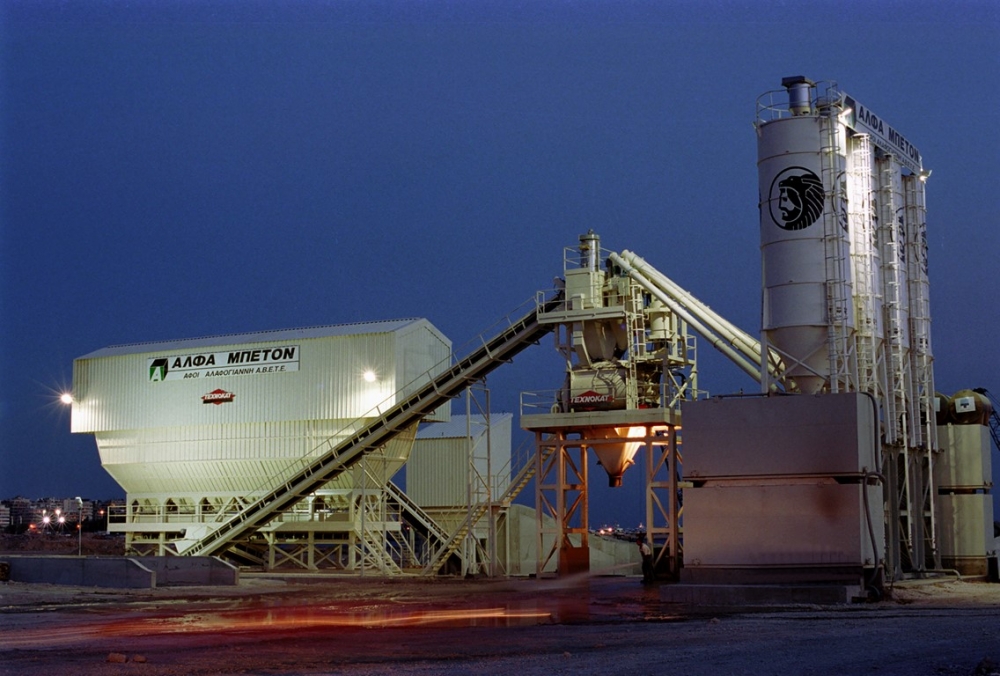

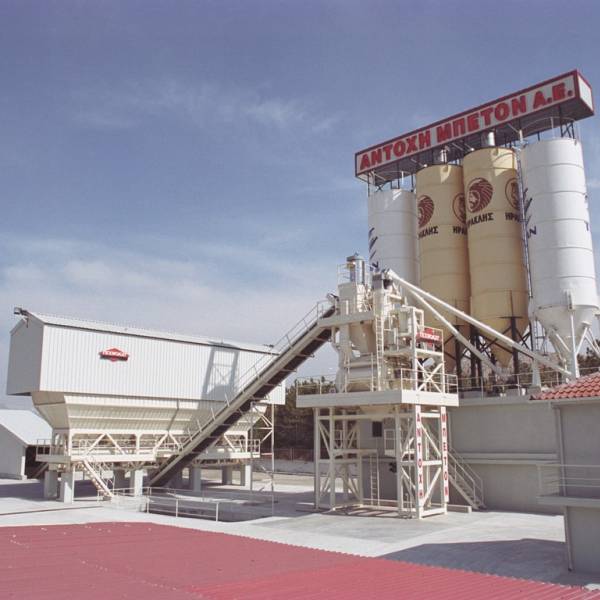

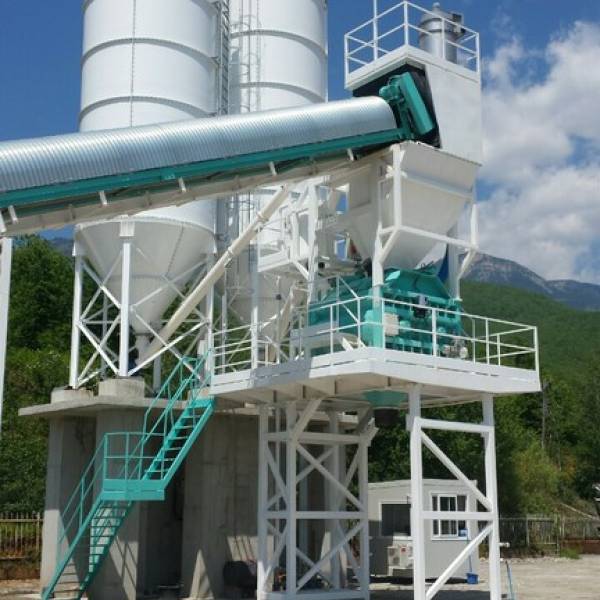

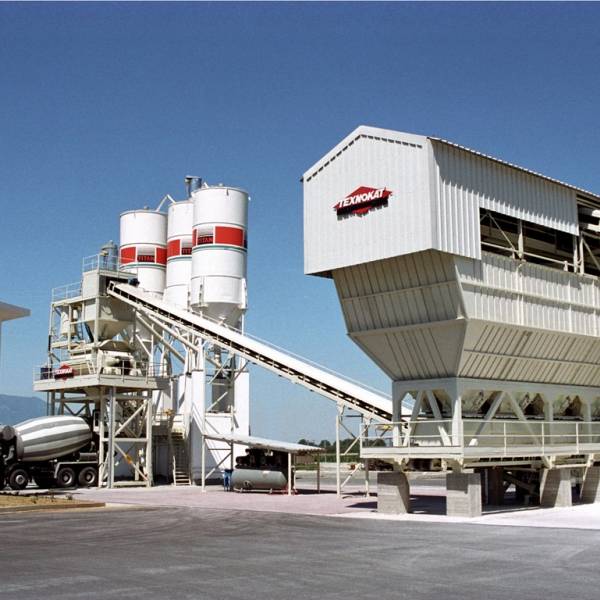

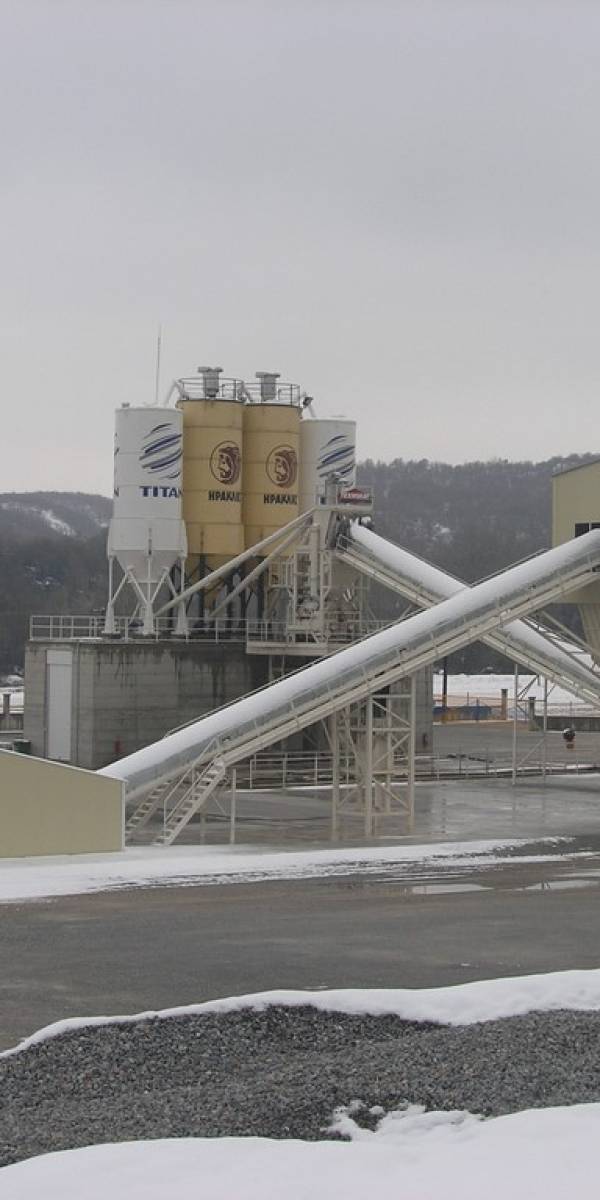

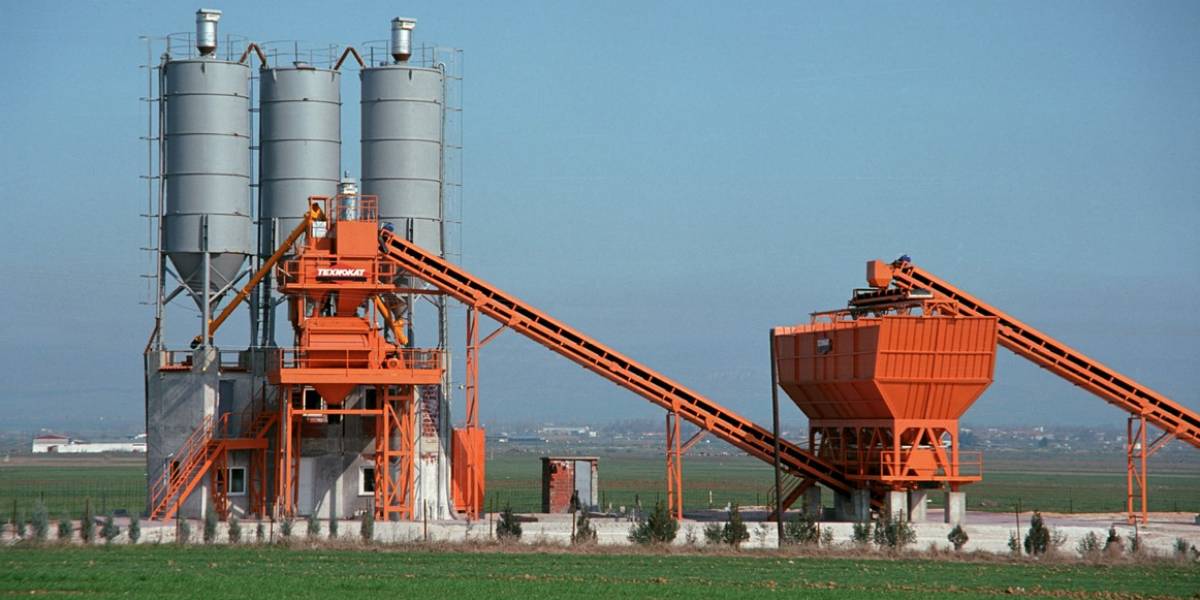

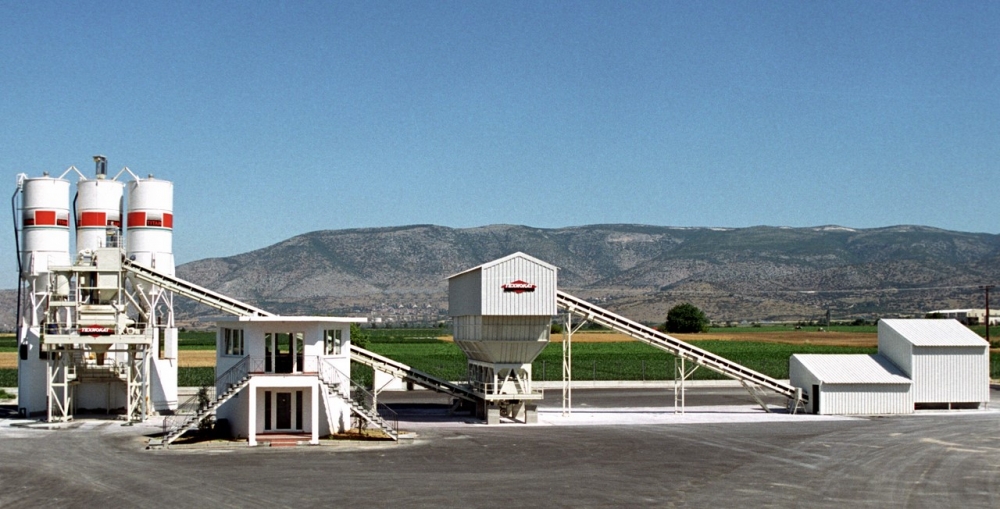

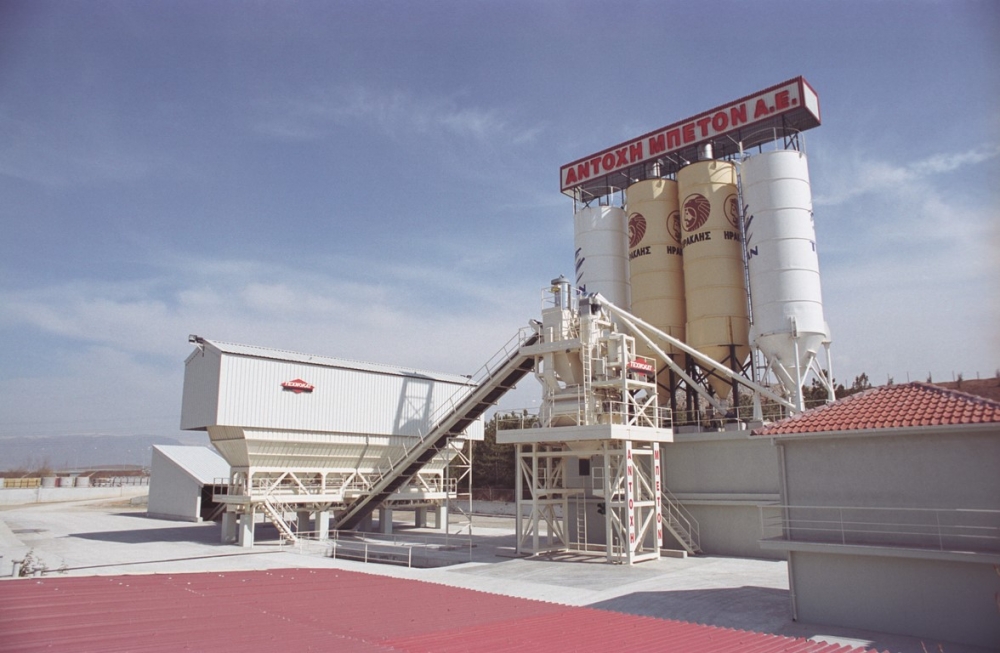

The group's flagship. The machines that made us known internationally. 'ALEXANDROS' concrete batching plants are characterized by ergonomic design, robustness and durability over time.

The long-term design experience of GROUP TEXNOKAT executives combined with the use of the best and most durable materials have as a result machines that never betray the final user. Machines fast. Machines that impress with their volume capacity but also with their ergonomic design.

In our eyes, every machine that comes out of production except for a code has something from us. Something of us that will accompany it all his life.

One batching plant for one life.

One machine modular for every possible need.

A machine with endless design flexibility.

TECHNICAL SPECIFICATION	ALEXANDER 80	ALEXANDER 100	ALEXANDER 120
PRODUCTION CAPACITY	80m³vibrated concrete	100m³vibrated concrete	120m³vibrated concrete
AGGREGATE STORAGE BINS	4 compartments x 30m³ = 120m³	4 compartments x 30m³ = 120m³	5 compartments x 30m³ = 150m³
AGGREGATE WEIGHING SCALE (BELT)	800 x 11.000mm	2 x 650 x 6.000mm	2 x 800 x 7.500mm
MAIN CONVEYOR BELT	800 x 25.000mm	800 x 25.000mm	1.000 x 25.000mm
TWIN SHAFT MIXER	2m³ SICOMA MAO 3000/2000	2,5m³ SICOMA MAO 3750/2500	3m³ SICOMA 4500/3000
PRE-STORAGE UNIT	YES	YES	YES
TLT SYSTEM	OPTIONAL	OPTIONAL	YES
CEMENT WEIGHING SCALE	1.000 lit – with 3 load cells	1.200 lit – with 3 load cells	1.400 lit – with 3 load cells
CEMENT SCREW CONVEYOR	2 x Φ 219 x 9.000mm	2 x Φ 273 x 9.000mm	2 x Φ 273 x 9.000mm
CEMENT WEIGHING SCALE FILTER	FILTER WAM HOPPER - TOP	FILTER WAM HOPPER - TOP	FILTER WAM HOPPER - TOP
WATER WEIGHING SCALE	500 lit – with 3 load cells	700 lit – with 3 load cells	800 lit – with 3 load cells
ADDITIVE WEIGHING SCALE	1 x 20 lit with 3 load cell PYTHAGORAS	1 x 20 lit with 3 load cell PYTHAGORAS	1 x 30 lit with 3 load cell PYTHAGORAS
WATER PUMP	700Lit/min	700Lit/min	700Lit/min
AIR COMPRESSOR	4Kw, 500Lit	4Kw, 500Lit	TWO HEAD 5,5Kw, 500Lit
ELECTRICAL PANEL	IP 54	IP 54	IP 54
AUTOMATION BETONMIND.NET V2.2	Controller with PC, 22’ screen & laser printer	Controller with PC, 22’ screen & laser printer	Controller with PC, 22’ screen & laser printer
MANUAL FOR USE AND MAINTENANCE	Hardcopy and USB	Hardcopy and USB	Hardcopy and USB

TECHNICAL SPECIFICATION	ALEXANDER 135	ALEXANDER 160	ALEXANDER 200
PRODUCTION CAPACITY	135m³vibrated concrete	160m³vibrated concrete	200m³vibrated concrete
AGGREGATE STORAGE BINS	5 compartments x 30m³ = 150m³	6 compartments x 30m³ = 180m³	6 compartments x 30m³ = 180m³
AGGREGATE WEIGHING SCALE (BELT)	2 x 800 x 7.500mm	2 x 1.000 x 8.500mm	2 x 1.000 x 8.500mm
MAIN CONVEYOR BELT	1.000 x 25.000mm	1.200 x 28.000mm	1.200 x 28.000mm
TWIN SHAFT MIXER	3,35m³ SICOMA MAO 5000/3350	4m³ SICOMA MAO 6000/4000	5m³ SICOMA 7500/5000
PRE-STORAGE UNIT	YES	YES	YES
TLT SYSTEM	YES	YES	YES
CEMENT WEIGHING SCALE	1.700 lit – with 3 load cells	2 x 1.000 lit – with 3 load cells	2 x 1.200 lit – with 3 load cells
CEMENT SCREW CONVEYOR	3 x Φ 323 x 9.000mm	4 x Φ 323 x 9.000mm	4 x Φ 323 x 9.000mm
CEMENT WEIGHING SCALE FILTER	FILTER WAM HOPPER - TOP	FILTER WAM HOPPER - TOP	FILTER WAM HOPPER - TOP
WATER WEIGHING SCALE	1.000 lit – with 3 load cells	1.200 lit – with 3 load cells	1.400 lit – with 3 load cells
ADDITIVE WEIGHING SCALE	2 x 30 lit with 3 load cell PYTHAGORAS	2 x 30 lit with 3 load cell PYTHAGORAS	2 x 30 lit with 3 load cell PYTHAGORAS
WATER PUMP	900Lit/min	1.000Lit/min	1.200Lit/min
AIR COMPRESSOR	TWO HEAD 5,5Kw, 500Lit	TWO HEAD 5,5Kw, 500Lit	TWO HEAD 5,5Kw, 500Lit
ELECTRICAL PANEL	IP 54	IP 54	IP 54
AUTOMATION BETONMIND.NET V2.2	Controller with PC, 22’ screen & laser printer	Controller with PC, 22’ screen & laser printer	Controller with PC, 22’ screen & laser printer
MANUAL FOR USE AND MAINTENANCE	Hardcopy and USB	Hardcopy and USB	Hardcopy and USB
