Voyager 90 M

TRAILER CONCRETE BATCHING PLANT “VOYAGER 90-M”

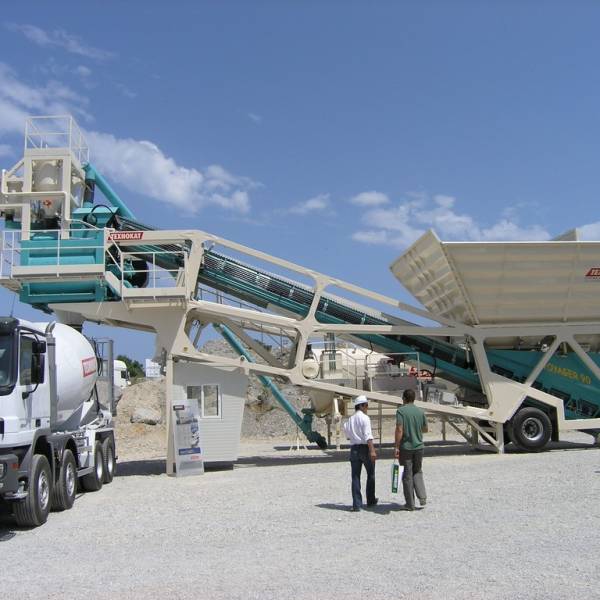

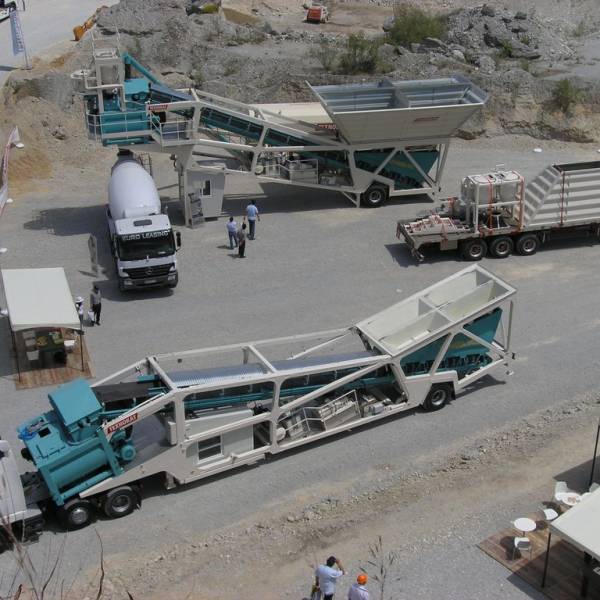

Trailer concrete batching plant VOYAGER 90M. Travel and produces 90m³per hour. Product of new thinking is the pioneer, reliable, integrates and trailer concrete batching plant.

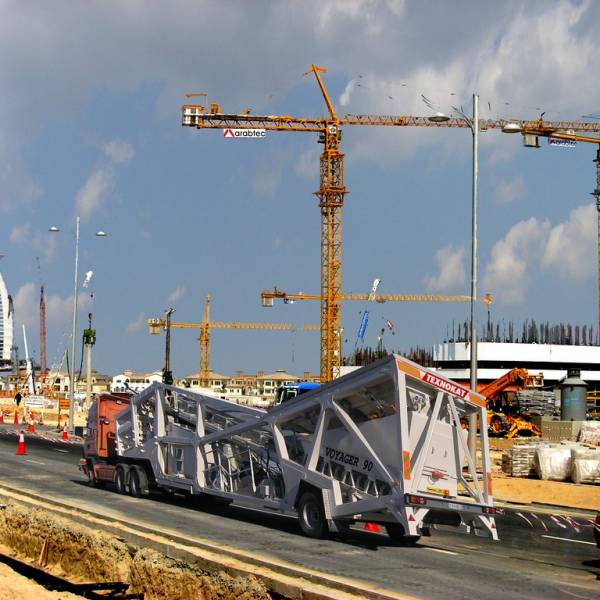

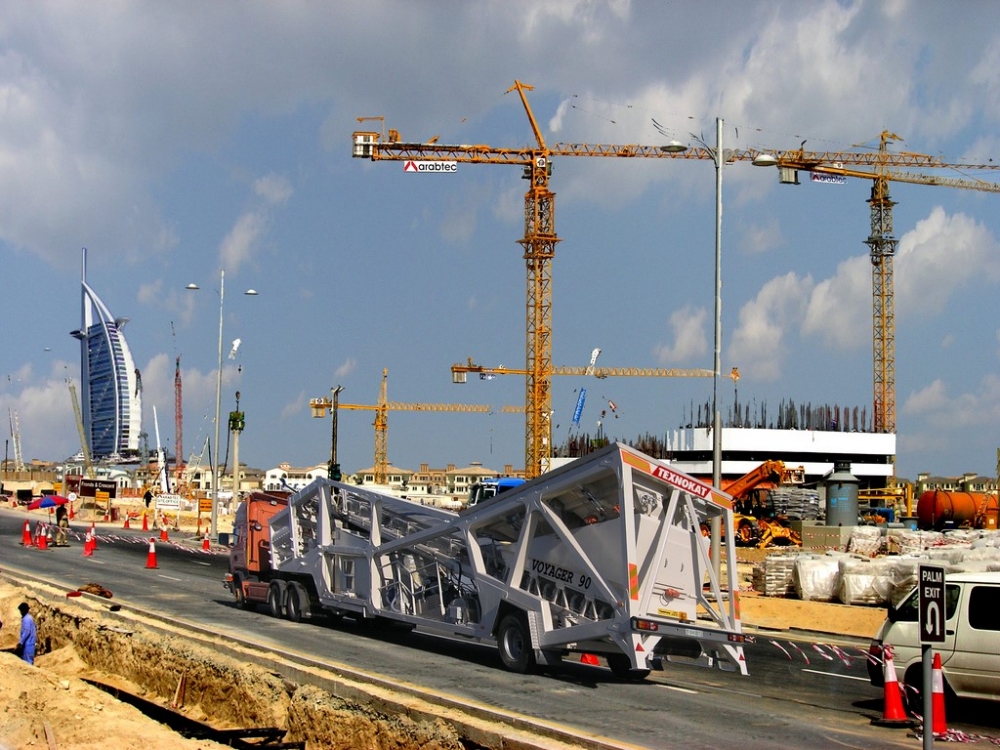

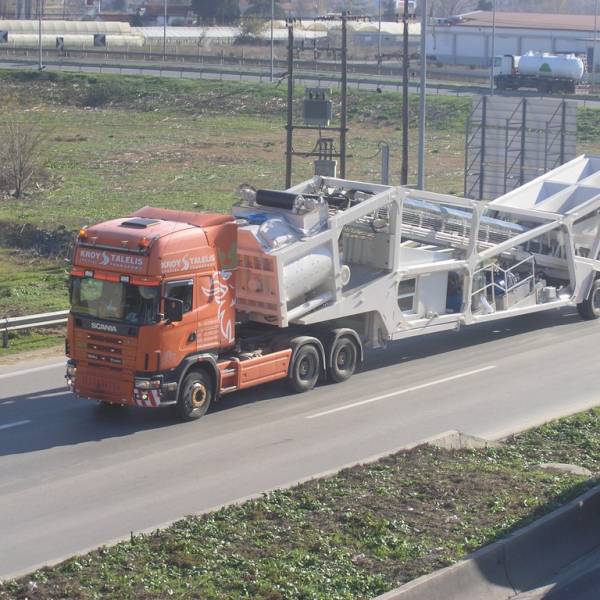

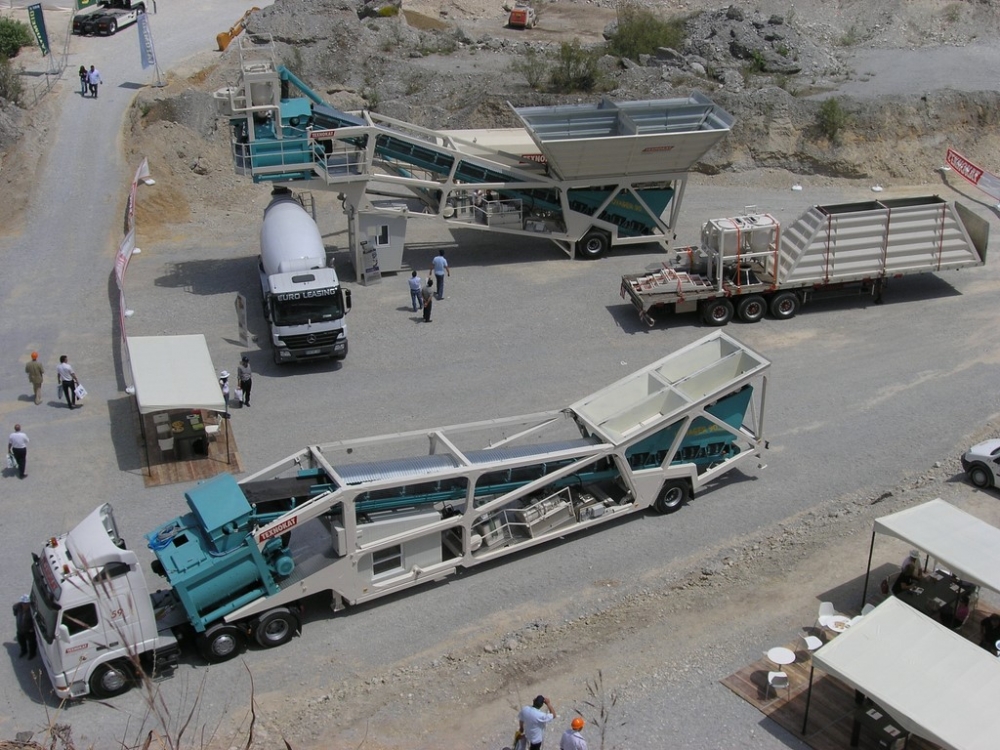

The concrete batching plant “VOYAGER 90-M” is a trailer vehicle, which has 90m³/h production capacity and can be set up in full operation within a few hours.

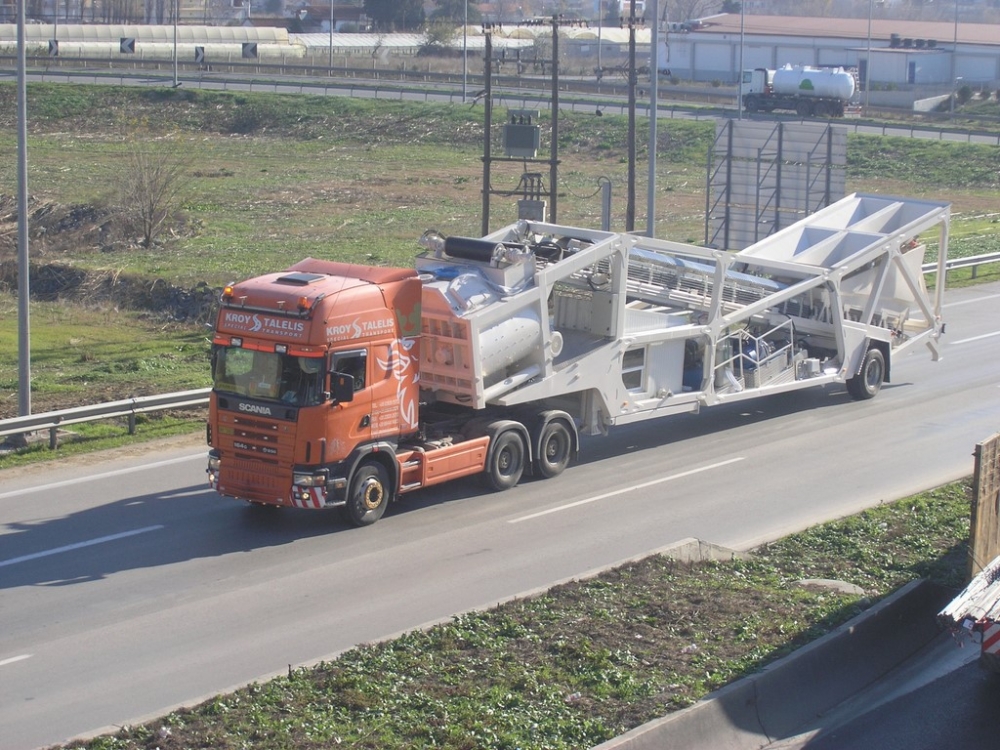

“VOYAGER 90-M” incorporates all the necessary equipment, cabling and piping in their final position upon their trailer platform used to support and transport.

The Trailer Mobile Concrete Batching Plant VOYAGER 90, has been primarily fully developed by Group TEXNOKAT and is patented based on the ΟΒΙ 2012/1007824 certificate.

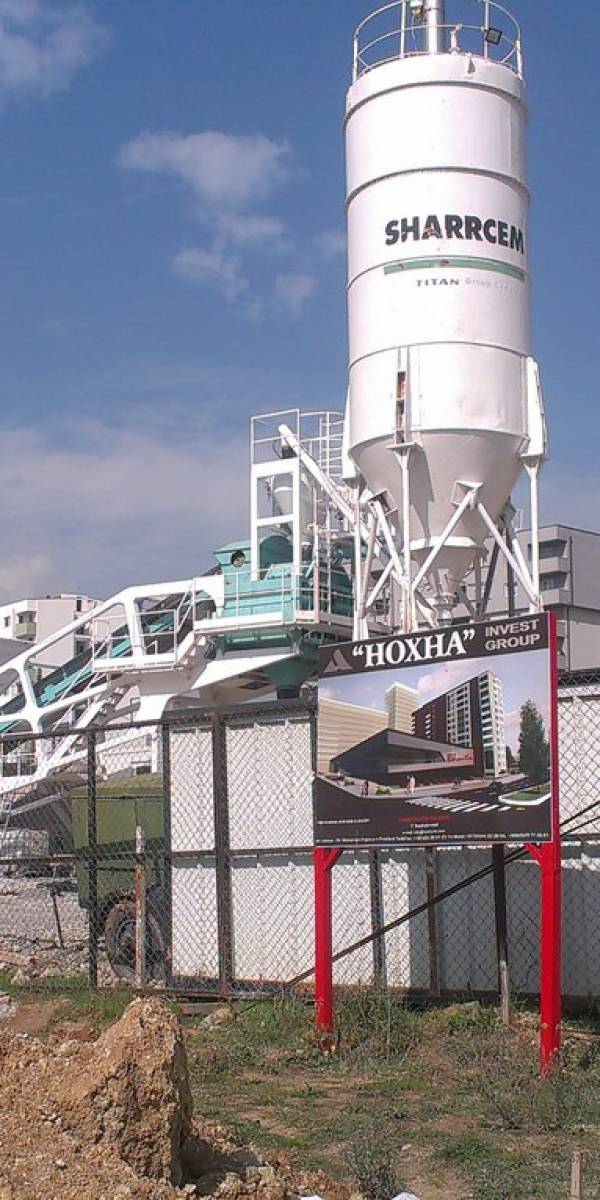

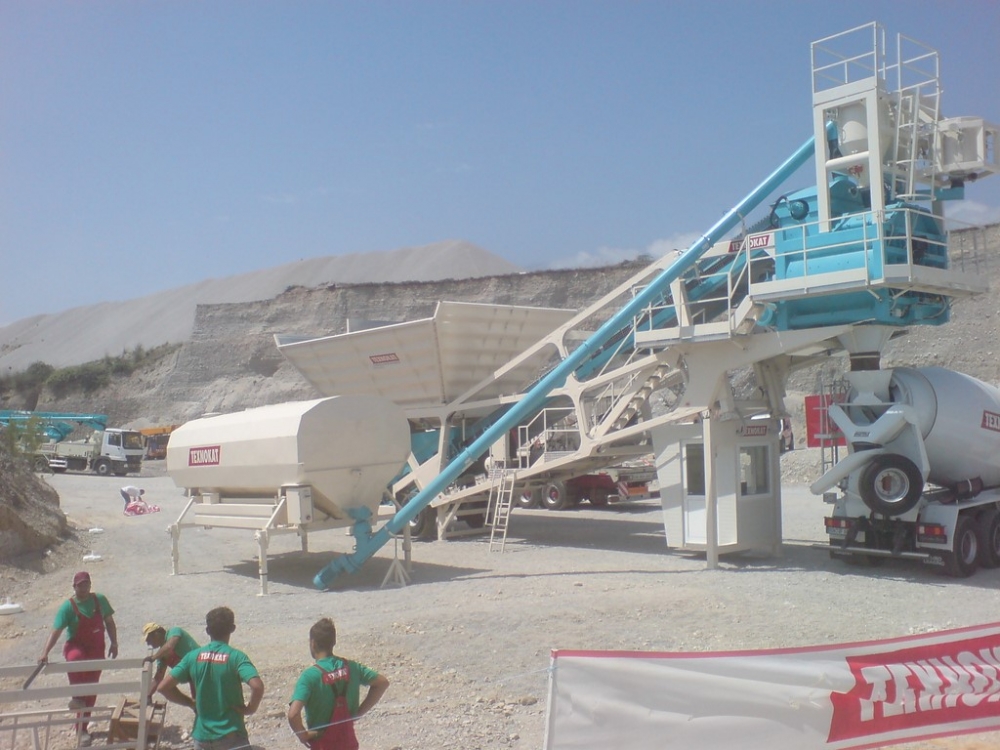

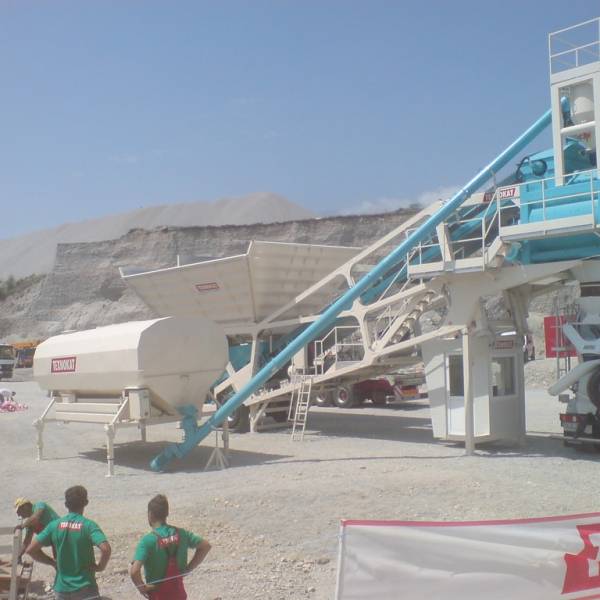

It can operate independently even at a far distant place covering the needs of every concreting work with the proper additions such as: horizontal cement silo, metallic ramp, electric generator, water tank and a pre-loading system.

TECHNICAL SPECIFICATION	VOYAGER 90M
PRODUCTION CAPACITY	90m³VIBRATED CONCRETE
AGGREGATE STORAGE BINS	4 compartments x 12,5m³ = 50m³
AGGREGATE WEIGHING SCALE	7.000m³
MAIN CONVEYOR BELT	800 x 15.800mm
MIXER	2,5 m³ SICOMA MAO 3750/2500 TWIN SHAFT
CEMENT WEIGHING SCALE	1.500 lit – with 3 load cells
CEMENT SCREW CONVEYOR	2 x Φ 273 x 9.000mm
CEMENT WEIGHING SCALE FILTER	FILTER WAM HOPPER - JET
WATER WEIGHING SCALE	700 lit – with 3 load cells
ADDITIVE WEIGHING SCALE	30 lit with 3 load cells
WATER PUMP	700Lit/min
AIR COMPRESSOR	4Kw, 500Lit
CONTROL CABIN	2 x 1,9 x 2,10 m
AIR CONDITION	9.000 BTU
ELECTRICAL PANEL	IP 54
AUTOMATION BETONMIND.NET V2.2	Controller with PC,22’ screen & laser printer
MANUAL FOR USE AND MAINTENANCE	Hardcopy and USB
TOTAL INSTALLED POWER	155,00 Kw
