Passenger 60

Product of new thinking is the pioneer, reliable, integrates and mobile concrete batching plant.

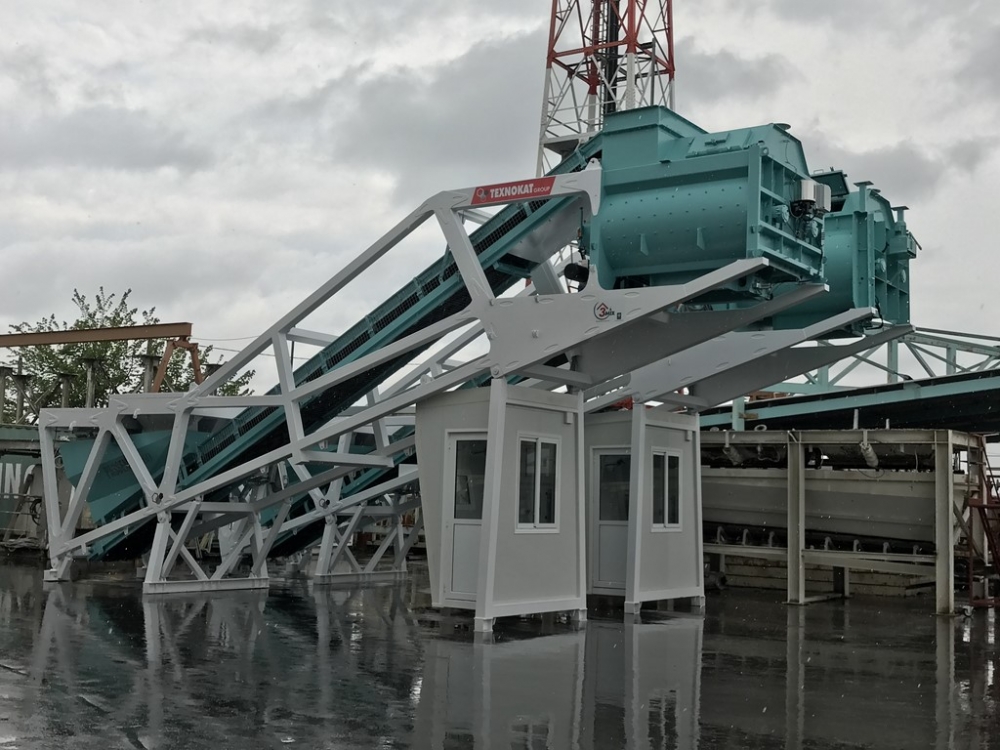

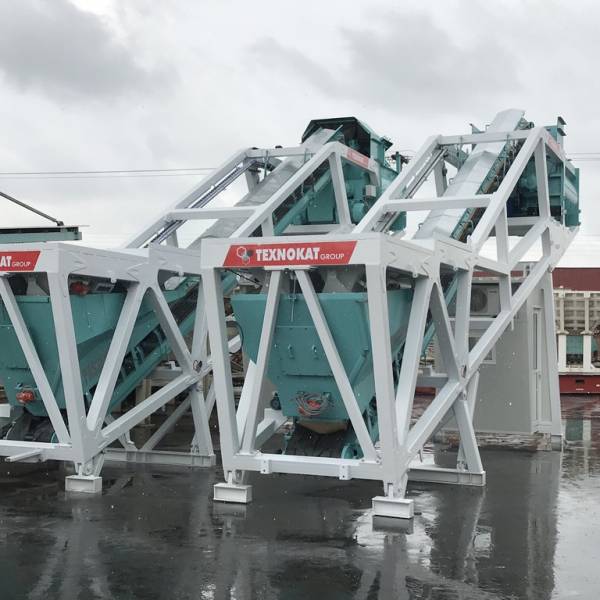

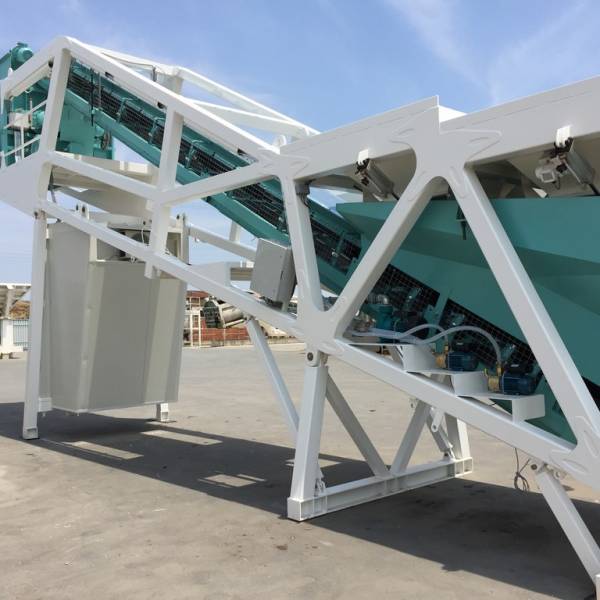

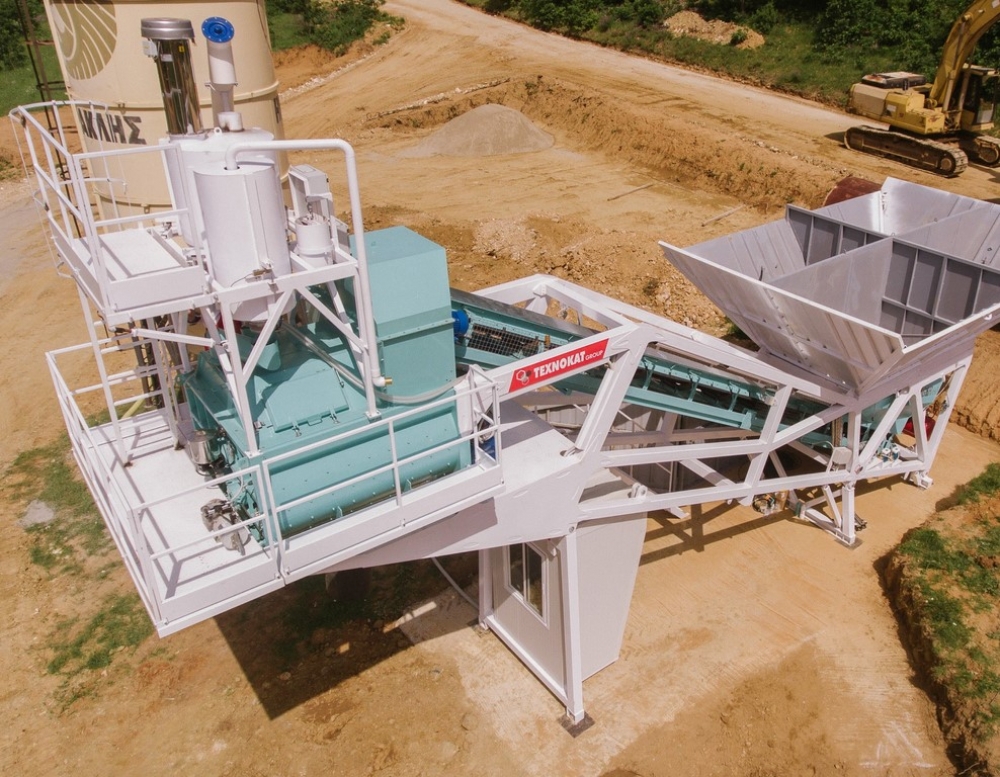

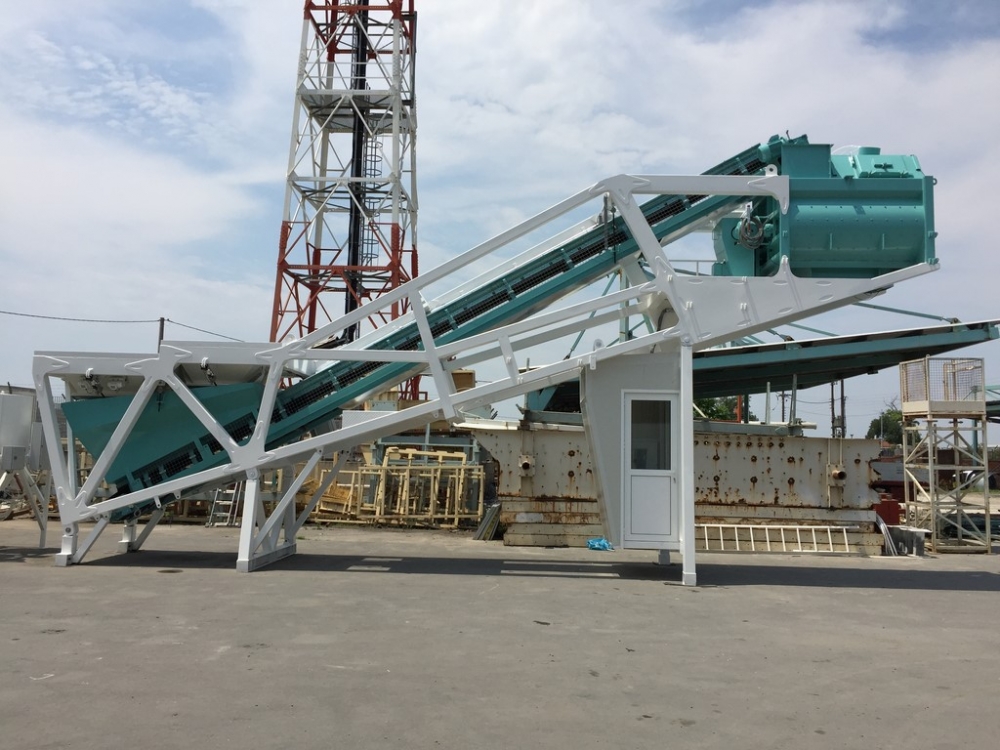

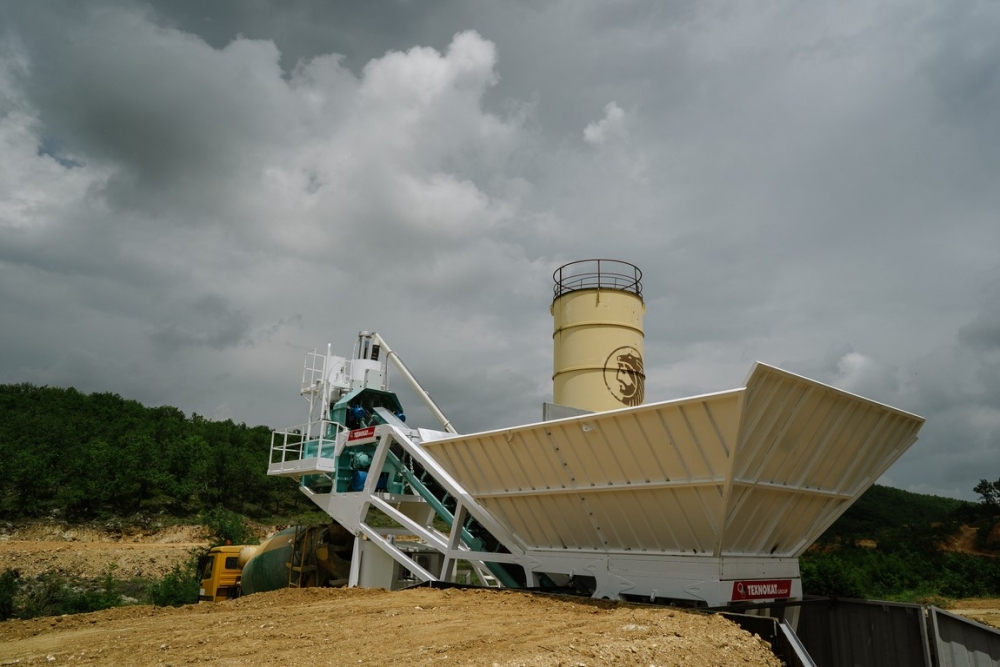

The concrete batching plant “PASSENGER 60” is a mobile plant, which gives 60m³/h production capacity and can be set up in full operation within few hours.

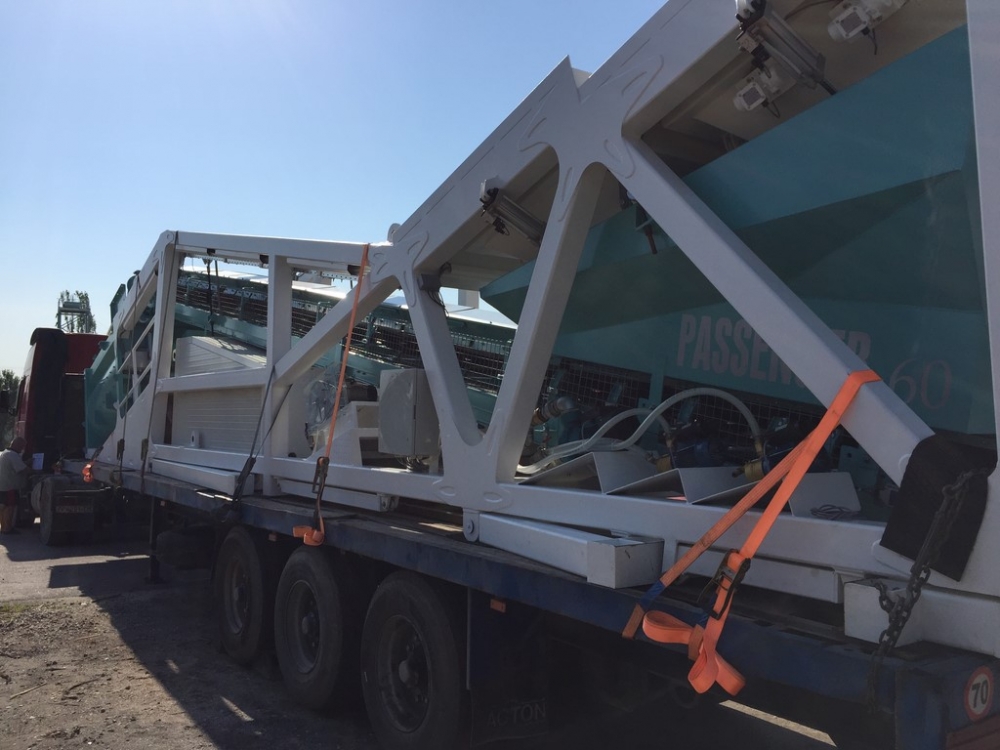

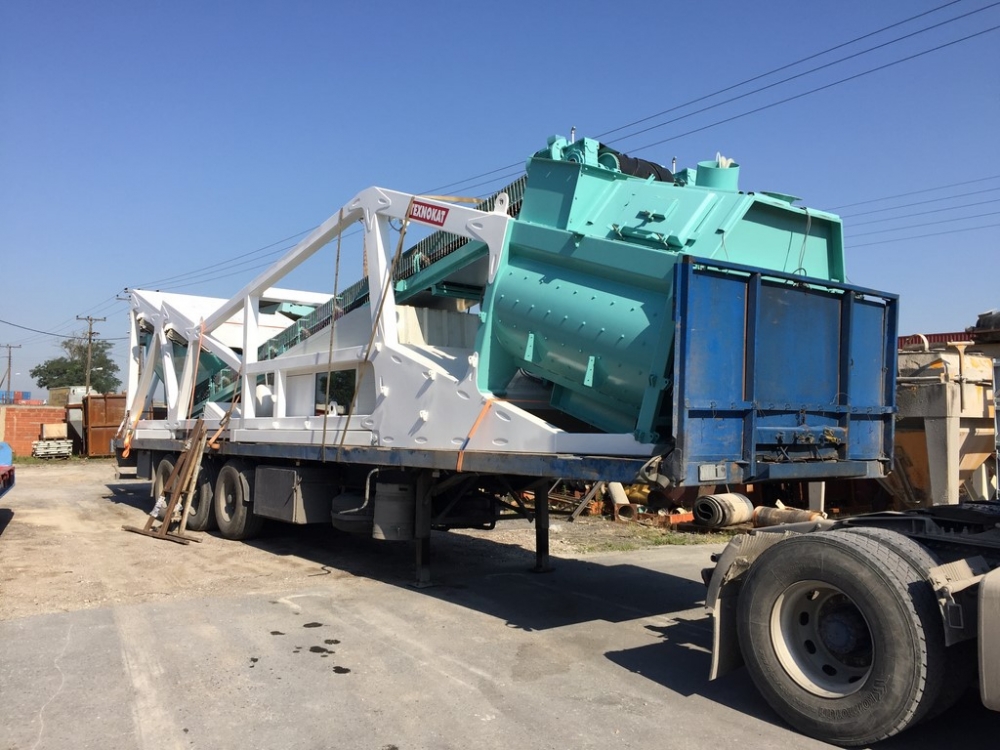

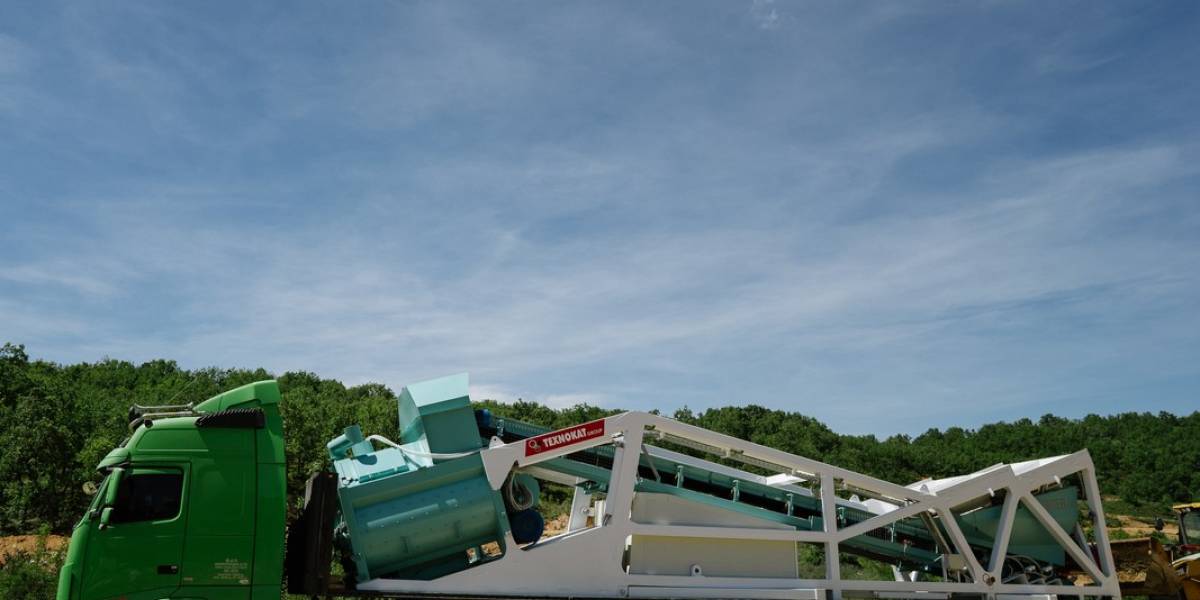

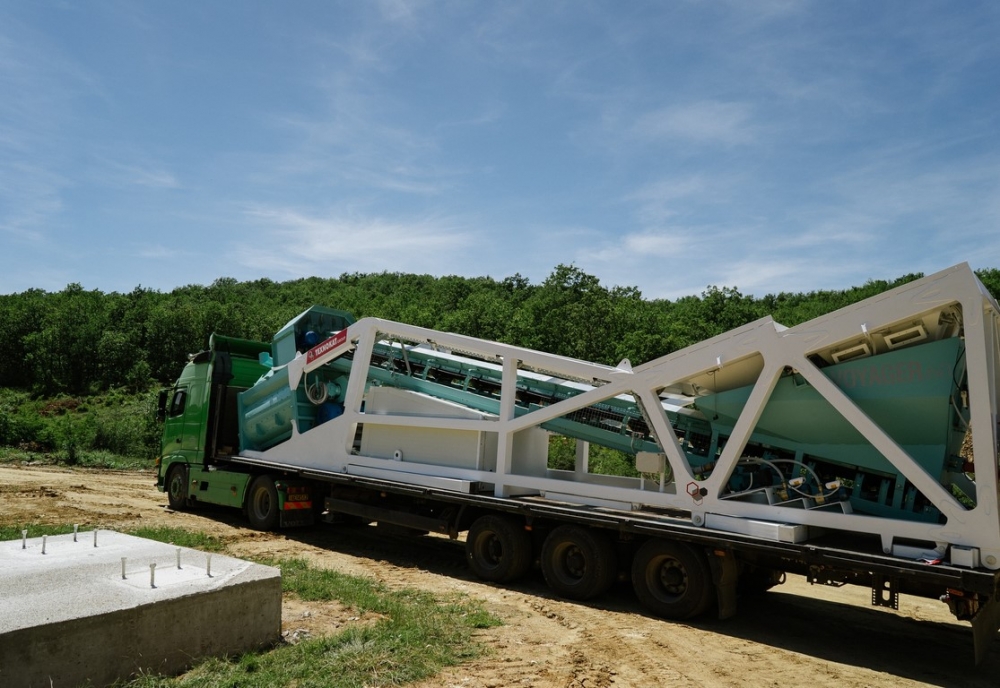

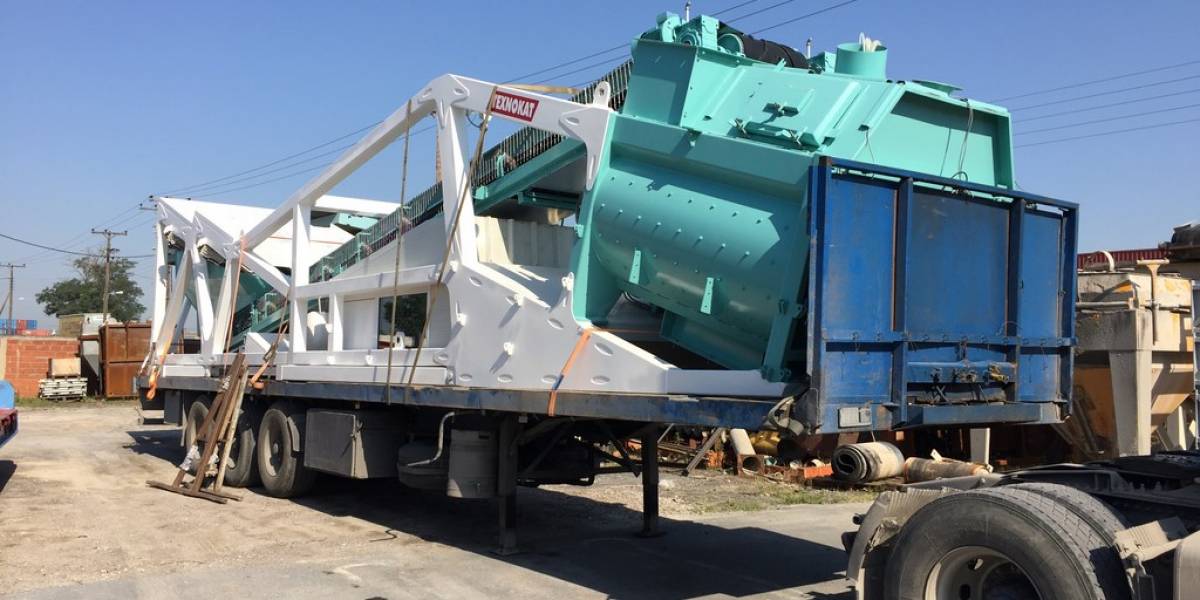

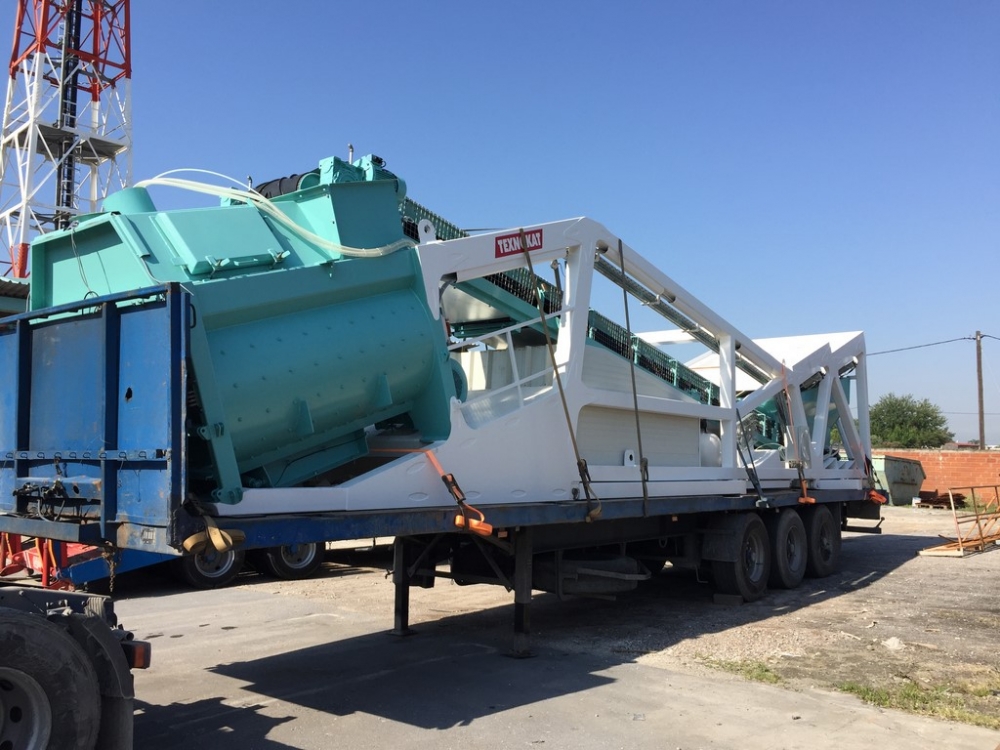

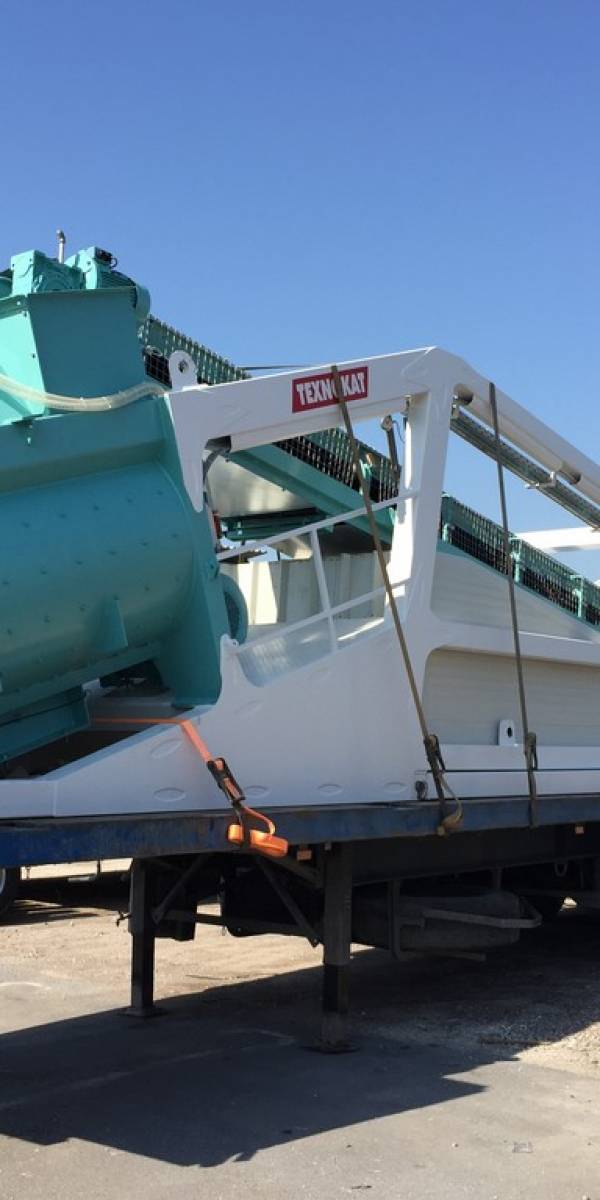

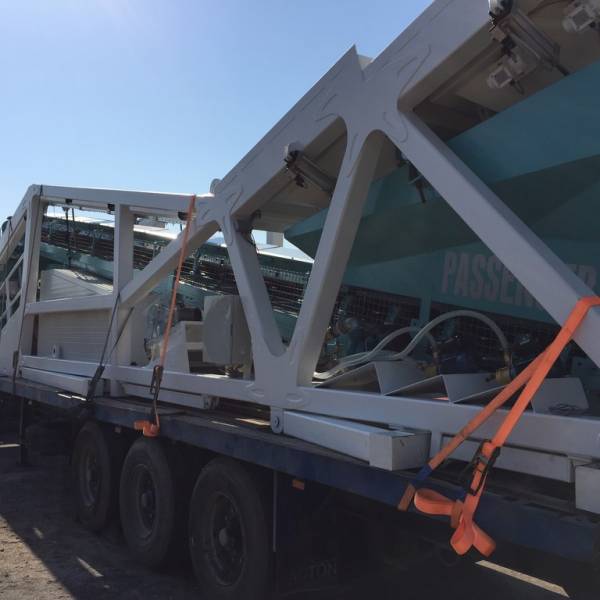

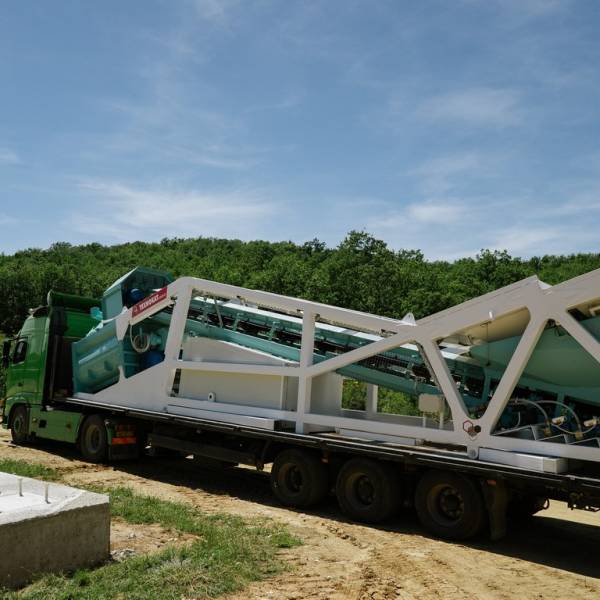

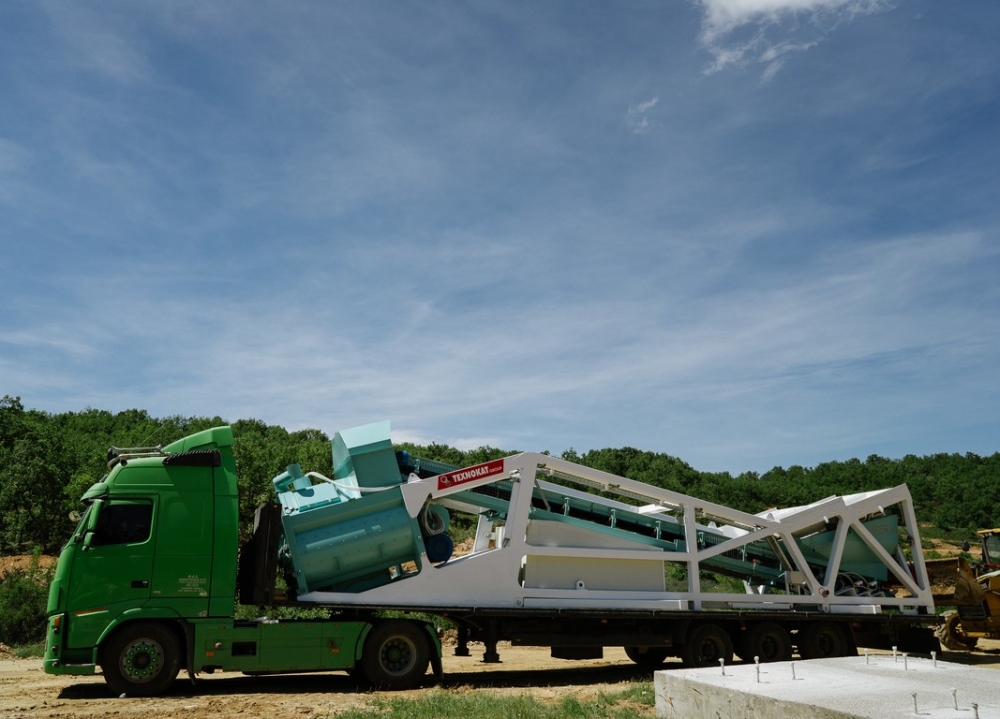

“PASSENGER 60” incorporates all the necessary equipment, cabling and piping in their final position upon their mobile platform used to support and transport in just one (1) truck/trailer

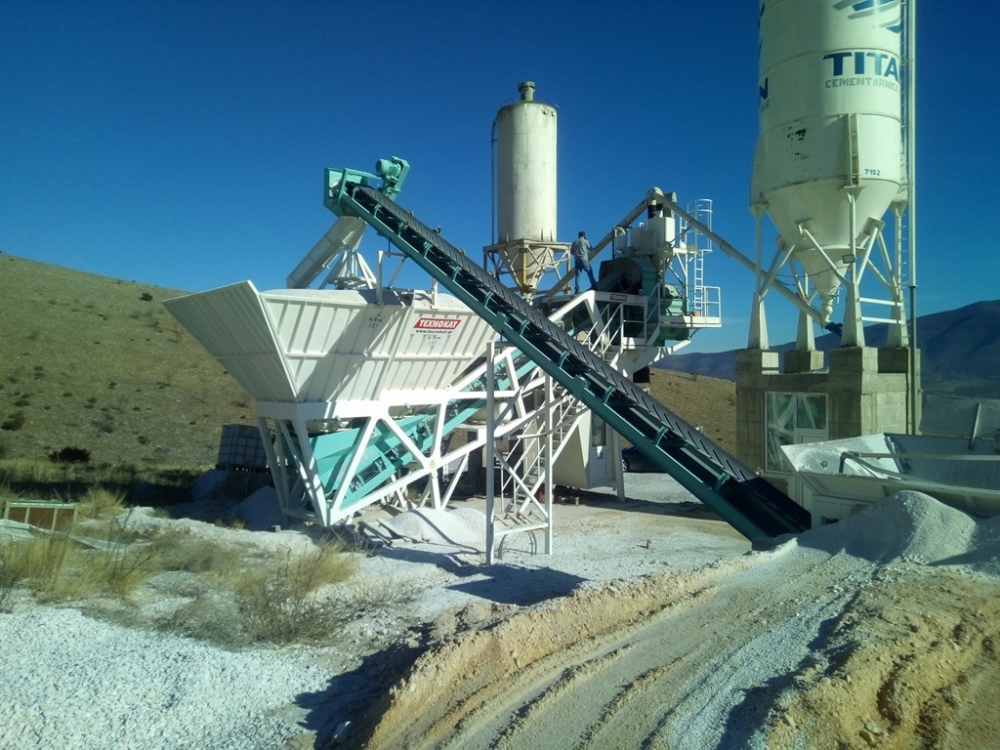

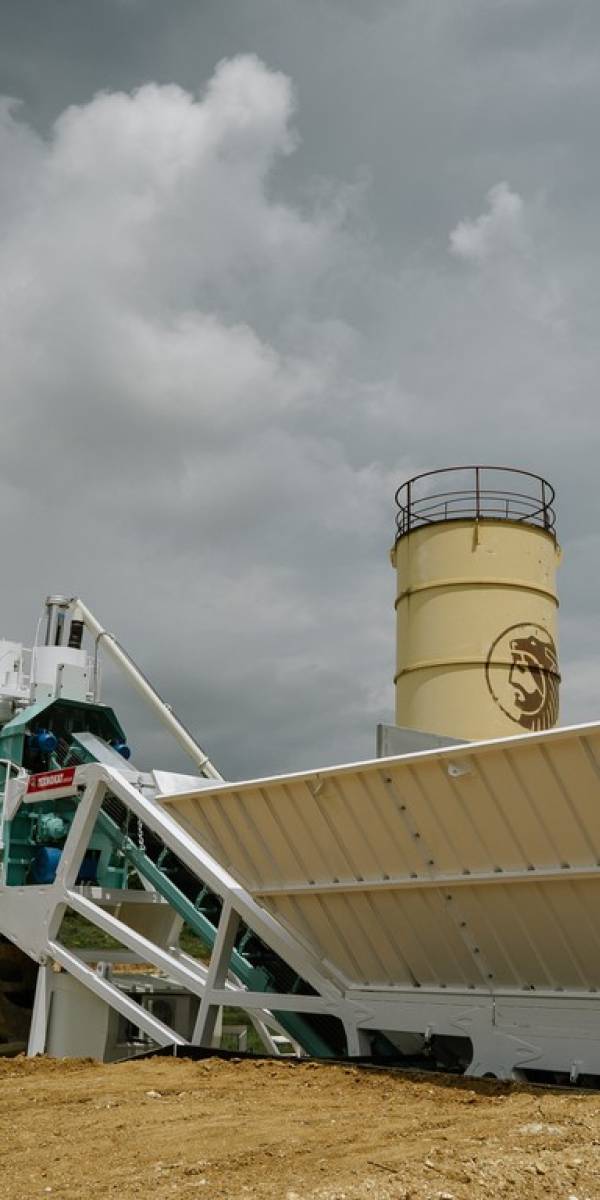

It can operate independently even at a far distant place covering the needs of every concreting work with the proper additions such as: horizontal cement silo, metallic ramp, electric generator, water tank and a pre-loading system.

TECHNICAL SPECIFICATION	PASSENGER 60
PRODUCTION CAPACITY	60m³/ h VIBRATED CONCRETE

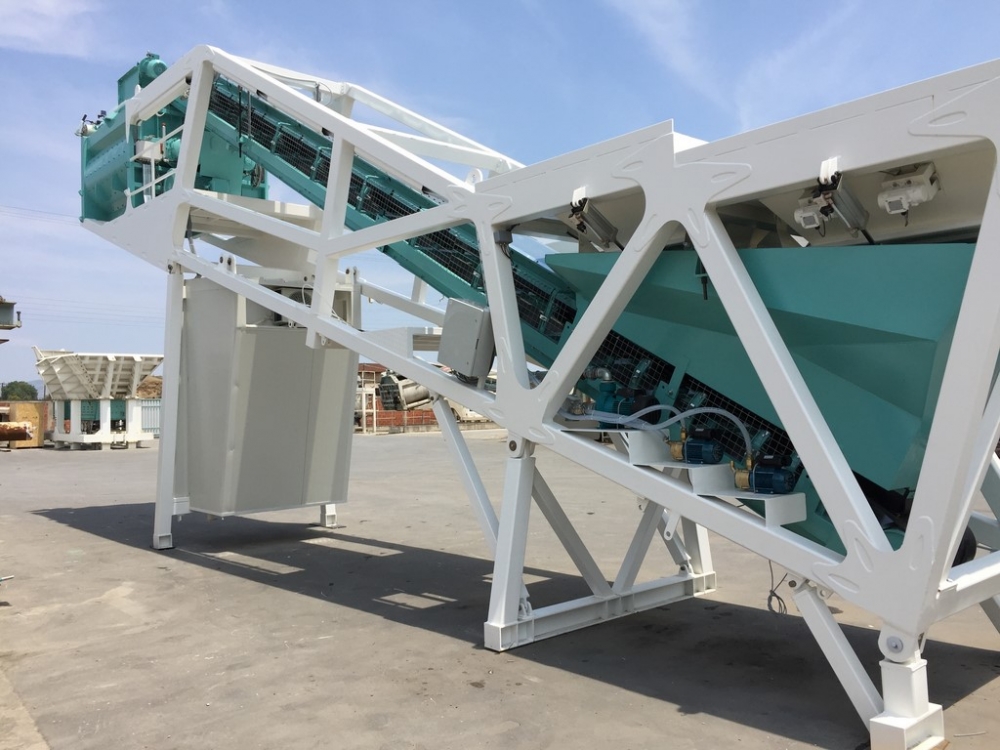

AGGREGATE STORAGE BINS	4 compartments x 7,5m³ = 30m³
MAIN CONVEYOR BELT	650 x 11.600mm
MIXER	TWIN SHAFT 1,5 m³ SICOMA MAO 2250/1500
CEMENT WEIGHING SCALE	720 lit – with 3 load cells
CEMENT SCREW CONVEYOR	1 x Φ 219 x 9.000mm
CEMENT WEIGHING SCALE FILTER	FILTER WAM HOPPER - TOP
WATER WEIGHING SCALE	330 lit – with 3 load cells
ADDITIVE WEIGHING SCALE	1 x 20 lit with 1 load cell
WATER PUMP	700 Lit/min
AIR COMPRESSOR	3Kw, 280Lit

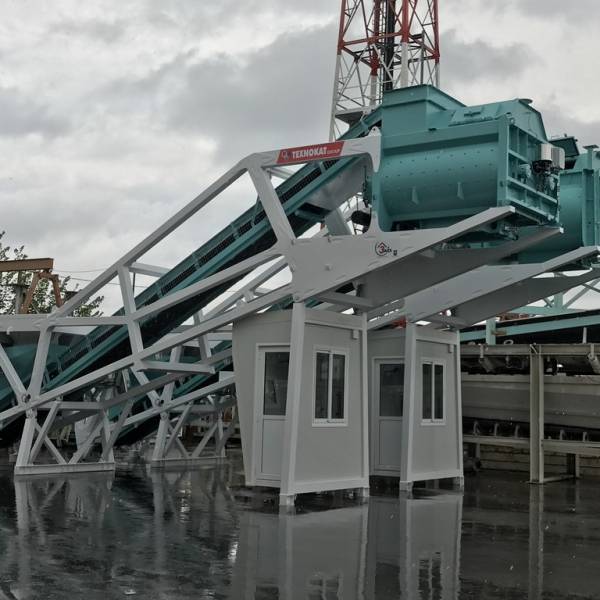

CONTROL CABIN	1,2 x 2,0 x 2,50 m
AIR CONDITION	9.000 BTU
ELECTRICAL PANEL	IP 54
AUTOMATION BETONMIND.NET V2.2	Controller with PC, 22’ screen & laser printer
MANUAL FOR USE AND MAINTENANCE	Hardcopy and USB
TOTAL INSTALLED POWER	80,00 Kw
